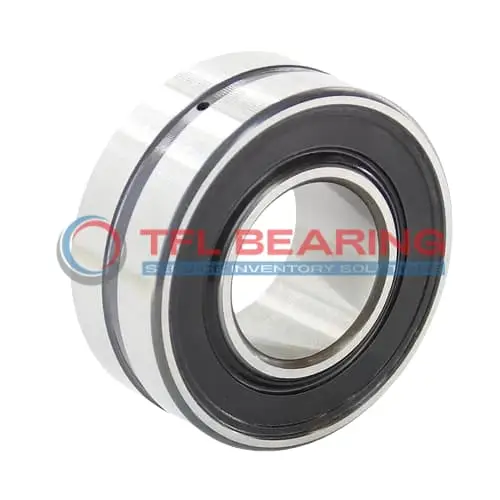

BS2-2220-2CS5W/GHV7 Double Row Spherical Roller Bearing

BS2-2220-2CS5W/GHV7 Double Row Spherical Roller Bearing

The BS2-2220-2CS5W/GHV7 is a double-row spherical roller bearing with a 100mm bore and 180mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 97342 lbf and runs smoothly at speeds up to 1600 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing operates in temperatures from -30°C to 200°C, making it suitable for tough environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery, industrial gearboxes, or applications requiring high radial load capacity.

Weighing 5.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2220-2CS5W/GHV7
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 180 x 55 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 55 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 114 mm
  • Shoulder/Recess Dia Of Outer Ring 163 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 97342 lbf
  • Static Radial Load 110156 lbf
  • Max Speed 1600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 5.5 kg

Features

Performance Features of BS2-2220-2CS5W/GHV7 Bearing

BS2-2220-2CS5W/GHV7 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 97342 lbf, ensuring robust performance in heavy-duty applications.

The double-seal design of BS2-2220-2CS5W/GHV7 Bearing protects against contaminants, enhancing durability.
With a maximum speed of 1600 rpm, it maintains efficiency even under demanding conditions.

BS2-2220-2CS5W/GHV7 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage ensures proper roller alignment, reducing friction and wear.

Lubrication grooves in BS2-2220-2CS5W/GHV7 Bearing facilitate smooth operation and extended service life.
Its compact design fits seamlessly into industrial machinery, saving space without compromising performance.

Application

Industrial Uses of BS2-2220-2CS5W/GHV7 Bearing
BS2-2220-2CS5W/GHV7 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction helps compensate for misalignment, ensuring smooth operation in tough conditions.

What Makes BS2-2220-2CS5W/GHV7 Bearing a Preferred Choice?
In mining equipment, BS2-2220-2CS5W/GHV7 Bearing stands out for its durability and ability to withstand harsh environments. The double seals protect against contaminants, extending service life even in dusty or wet settings.

Perfect Fit for Automation: BS2-2220-2CS5W/GHV7 Bearing
For conveyor systems in manufacturing plants, BS2-2220-2CS5W/GHV7 Bearing offers reliable performance with minimal maintenance. Its chrome steel rollers and cage provide excellent wear resistance, keeping downtime to a minimum.

Automotive vs Aerospace: Applications of BS2-2220-2CS5W/GHV7 Bearing
In heavy-duty trucks, BS2-2220-2CS5W/GHV7 Bearing supports axles and transmissions, handling both radial and thrust loads. While not typically used in aerospace, its robust design makes it ideal for ground vehicles operating under extreme loads.

Where Is BS2-2220-2CS5W/GHV7 Bearing Used?
You’ll often find BS2-2220-2CS5W/GHV7 Bearing in wind turbines, where its high load capacity and temperature range suit the demanding conditions. The lubrication groove ensures consistent performance, even during long operational cycles.
