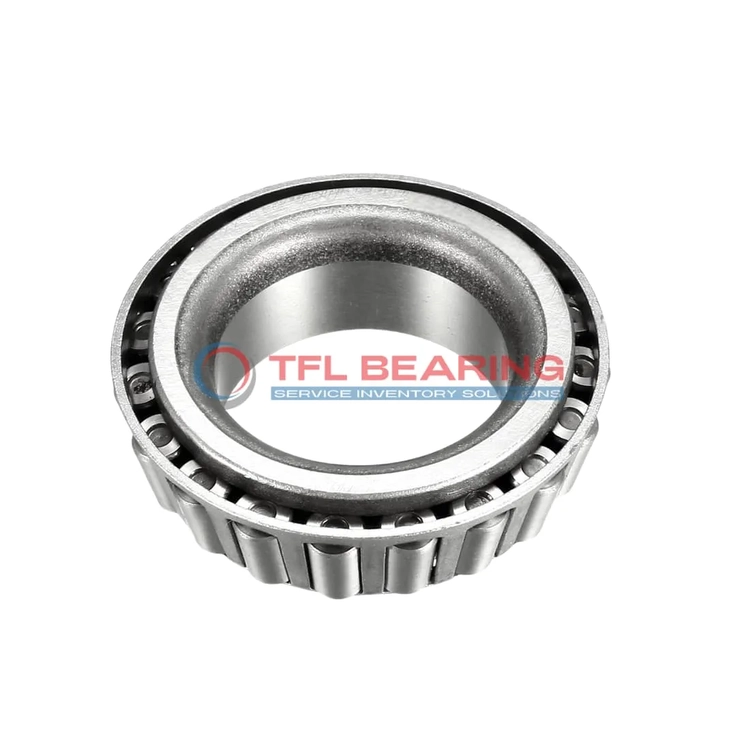

TS (Single Row Tapered Roller Bearings) (Imperial) HH224340-HH224310V

TS (Single Row Tapered Roller Bearings) (Imperial) HH224340-HH224310V

The HH224340-HH224310V is a single-row tapered roller bearing with a 4.25″ bore and 8.375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 153,000 lbf radially and 22,100 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where robust performance is needed.

Weighing 23.1 lb, it’s a solid choice for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH224340-HH224310V
  • Brand TFL
  • Interchangeable Timken
  • Size 4.25" x 8.375" x 2.6251"
  • Bore Dia 4.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 8.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.6251"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.310"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 5.94"
  • Cone Backface Backing Diameter 5.47"
  • Cup Frontface Backing Diameter 7.95"
  • Cup Backface Backing Diameter 7.56"
  • Cage Cone Frontface Clearance 0.15"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location -0.74"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH224340
  • Cup Part Number HH224310V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH224300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 153000 lbf
  • Static Radial Load 204000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 39600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 22100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 23.1 lb

Features

How Is HH224340-HH224310V Bearing Engineered for Reliability?

HH224340-HH224310V Bearing is built with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 153,000 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

What Makes HH224340-HH224310V Bearing Suitable for High-Temperature Applications?

HH224340-HH224310V Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its chrome steel construction resists heat-induced wear, ensuring consistent performance.
The open design allows for effective lubrication, further enhancing its heat resistance.
This makes it a reliable choice for industrial applications with high thermal demands.

Designed for Durability: HH224340-HH224310V Bearing

HH224340-HH224310V Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel components provide excellent wear resistance, even under heavy radial loads.
Its standard radial clearance ensures smooth operation, reducing maintenance needs.
With a static radial load capacity of 204,000 lbf, it offers long-term reliability.

Application

Industrial Uses of HH224340-HH224310V Bearing
HH224340-HH224310V Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes HH224340-HH224310V Bearing a Preferred Choice?
In automotive applications, HH224340-HH224310V Bearing fits well in wheel hubs and drivetrains, offering reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: HH224340-HH224310V Bearing
For industrial gearboxes, HH224340-HH224310V Bearing provides smooth operation and long service life due to its robust steel cage and precise tolerances. The open design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of HH224340-HH224310V Bearing
In automotive systems, HH224340-HH224310V Bearing supports heavy loads in axles and transmissions, while its precision makes it suitable for aerospace landing gear components. The temperature range ensures performance in varied conditions.

Essential Roles of HH224340-HH224310V Bearing
HH224340-HH224310V Bearing is ideal for agricultural machinery, where its ability to handle dirt and debris without compromising performance is valued. The standard radial clearance options provide flexibility for different applications.
