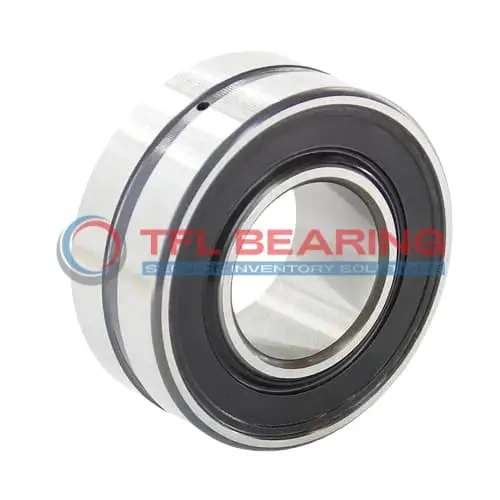

BS2-2213-2CSK/VT143 Double Row Spherical Roller Bearing

BS2-2213-2CSK/VT143 Double Row Spherical Roller Bearing

The BS2-2213-2CSK/VT143 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 44512 lbf and runs smoothly at speeds up to 2500 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The tapered bore (1:12 ratio) allows for secure fitting, and the lubrication groove makes maintenance straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads are common. It operates in temperatures from -30°C to 200°C.

Weighing 1.6kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2213-2CSK/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 38 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance +0.03mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 38 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 76.5 mm
  • Shoulder/Recess Dia Of Outer Ring 110 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 2500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.6 kg
  • Price （US$） 29.18

Features

Performance Features of BS2-2213-2CSK/VT143 Bearing

BS2-2213-2CSK/VT143 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring reliable performance in heavy-duty applications.

The double-seal design of BS2-2213-2CSK/VT143 Bearing protects against contaminants, extending its service life.
It operates smoothly in temperatures ranging from -30° to 200°C, making it suitable for varied environments.

BS2-2213-2CSK/VT143 Bearing’s tapered bore design ensures easy and secure installation.
With a maximum speed of 2500 rpm, it balances durability and efficiency in demanding conditions.

Application

Industrial Uses of BS2-2213-2CSK/VT143 Bearing
BS2-2213-2CSK/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The tapered bore ensures a secure fit, reducing slippage in high-vibration environments.

Where Is BS2-2213-2CSK/VT143 Bearing Used?
In conveyor systems, BS2-2213-2CSK/VT143 Bearing’s spherical rollers accommodate misalignment, making it ideal for uneven loads. The double seals protect against contaminants, extending service life in dusty or wet conditions.

Built for Heavy-Duty Use: BS2-2213-2CSK/VT143 Bearing
BS2-2213-2CSK/VT143 Bearing excels in mining equipment, where its chrome steel construction withstands extreme loads. The lubrication groove and holes simplify maintenance, ensuring consistent performance under continuous operation.

Automotive vs Aerospace: Applications of BS2-2213-2CSK/VT143 Bearing
In automotive drivetrains, BS2-2213-2CSK/VT143 Bearing supports high radial loads, while its temperature range suits aerospace auxiliary systems. The steel cage balances strength and weight for diverse applications.

Key Fields for BS2-2213-2CSK/VT143 Bearing
BS2-2213-2CSK/VT143 Bearing is a reliable choice for wind turbines, where its spherical rollers adapt to shaft deflection. The CN radial clearance ensures smooth rotation, even under fluctuating loads.
