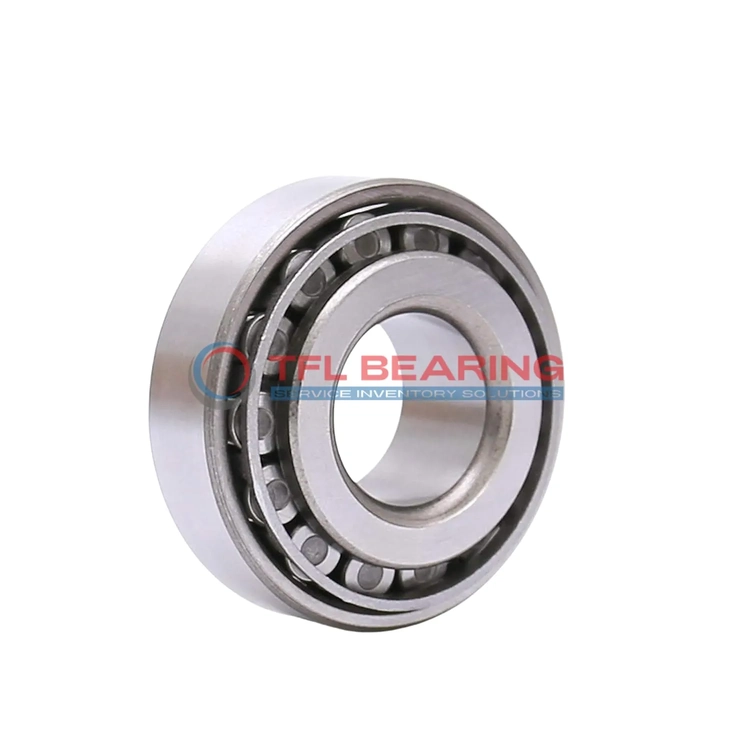

TS (Single Row Tapered Roller Bearings) (Imperial) 14116-14274

TS (Single Row Tapered Roller Bearings) (Imperial) 14116-14274

The 14116-14274 is a single-row tapered roller bearing with a 1.19″ bore and 2.717″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 12300 lbf radially and 2080 lbf thrust, suitable for moderate-speed applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in automotive or industrial equipment where combined loads are present.

Weighing just 0.8 lb, it offers a balance of strength and compactness. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14116-14274
  • Brand TFL
  • Interchangeable Timken
  • Size 1.19" x 2.717" x 0.7813"
  • Bore Dia 1.19"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7813"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.46"
  • Cone Backface Backing Diameter 1.5"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 14116
  • Cup Part Number 14274
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 14116-14274 Bearing

14116-14274 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

14116-14274 Bearing requires lubrication, which helps maintain smooth operation over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 14116-14274 Bearing
14116-14274 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 14116-14274 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for Timken equivalents in older vehicles.

For industrial conveyor systems, 14116-14274 Bearing’s open design simplifies lubrication and maintenance, reducing downtime. The standard radial clearance offers flexibility for different operational needs.

Where Is 14116-14274 Bearing Used?
You’ll often find 14116-14274 Bearing in gearboxes and power transmission units, where its single-row tapered rollers manage radial and thrust loads smoothly. The steel cage adds stability during high-speed rotations.

In mining equipment, 14116-14274 Bearing’s robust build withstands harsh conditions, from dust to heavy vibrations. The ABEC-1 rating ensures consistent precision without overcomplicating the design.

Built for Heavy-Duty Use: 14116-14274 Bearing
14116-14274 Bearing excels in forestry machinery, where its combined load capacity handles uneven forces from cutting and lifting. The inch measurements make it compatible with North American machinery standards.

For pump systems, 14116-14274 Bearing’s temperature range (-30° to 110°C) suits both indoor and outdoor setups. The dynamic radial load rating of 12,300 lbf ensures longevity in continuous operation.

Light-Duty vs Heavy-Duty: Best Uses for 14116-14274 Bearing
In light-duty scenarios like small electric motors, 14116-14274 Bearing provides reliable support without unnecessary bulk. Its standard radial clearance adapts well to moderate speeds.

For heavy-duty applications like crushers, 14116-14274 Bearing’s static radial load rating of 13,900 lbf guarantees stability under extreme pressure. The steel cage prevents roller misalignment during intense use.
