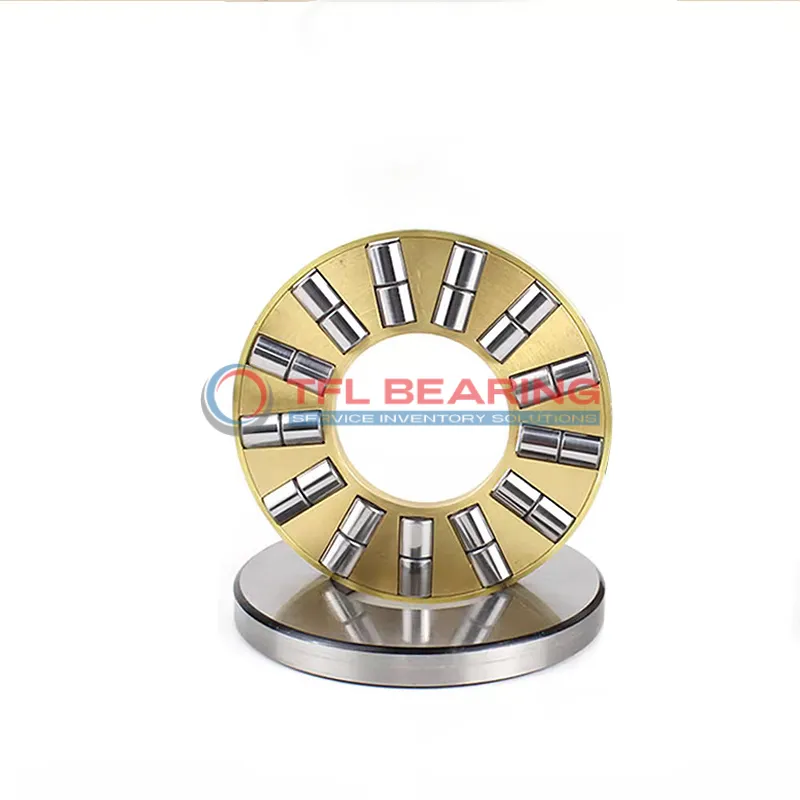

Double Row Cylindrical Roller Thrust Bearings 89317 M

Double Row Cylindrical Roller Thrust Bearings 89317 M

The 89317 M is a double-row cylindrical roller thrust bearing, measuring 85mm by 150mm by 39mm, crafted from sturdy chrome steel. It handles heavy thrust loads up to 57375 lbf and operates smoothly at speeds up to 2200 RPM.

Its two-row roller design distributes loads evenly, while the machined brass cage ensures durability and reduced friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery, industrial gearboxes, or applications requiring high thrust capacity.

Weighing 3.39kg, it’s built to last and complies with RoHS and REACH standards for safe use. The included shaft and housing washers simplify installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89317 M
  • Size 85 mm x 150 mm x 39 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.020mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 39 mm
  • Height Tolerance -0.30mm to +0.025mm
  • Outside Diameter Shaft Washer 150 mm
  • Bore Diameter Housing Washer 88 mm
  • Height Shaft Washer 13.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1.5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 57375 lbf
  • Static Radial Load 247500 lbf
  • Max Speed 2200 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.39 kg
  • Roller And Cage Thrust Assembly K 89317 M
  • Shaft Washer WS 89317
  • Housing Washer GS 89317
Double Row Cylindrical Roller Thrust Bearings 89317 M dimension drawing
Download DWG Download PDF

Features

How Does 89317 M Bearing Handle Heavy Thrust Loads?

89317 M Bearing features a double-row cylindrical roller design, optimised for high thrust load capacity.
Its chrome steel construction ensures durability, with a static radial load rating of 247500 lbf.

The machined brass cage maintains roller alignment, reducing friction and wear during operation.
With a maximum speed of 2200 rpm, it delivers reliable performance in demanding industrial applications.

89317 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its precise tolerances and robust design make it suitable for heavy-duty machinery and equipment.

Application

Industrial Uses of 89317 M Bearing
89317 M Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its double-row design handles significant thrust loads efficiently. The machined brass cage ensures smooth operation even under high stress.

Where Is 89317 M Bearing Used?
You’ll often find 89317 M Bearing in automotive applications such as truck transmissions, where its robust construction supports heavy axial loads. Its metric sizing makes it a reliable choice for European and Asian vehicle models.

Built for Heavy-Duty Use: 89317 M Bearing
89317 M Bearing excels in construction equipment like cranes, thanks to its chrome steel rollers and high static load capacity. The precise tolerances ensure consistent performance in demanding environments.

Automotive vs Aerospace: Applications of 89317 M Bearing
In automotive systems, 89317 M Bearing is ideal for gearboxes, while in aerospace, it supports auxiliary power units. Its temperature range and durability make it versatile across industries.

Essential Roles of 89317 M Bearing
For medical imaging devices, 89317 M Bearing provides reliable performance due to its smooth operation and resistance to wear. The chrome steel construction ensures longevity in high-use scenarios.
