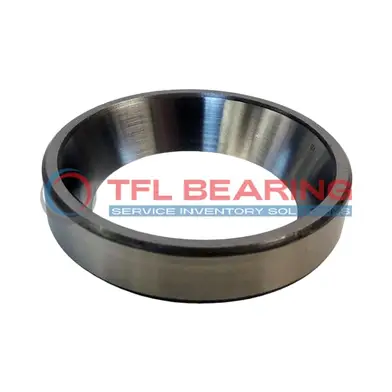

414 Single Cups (Imperial)

414 Single Cups (Imperial)

The 414 single cup is a tapered roller bearing component with an outer diameter of 3.4843 inches and a width of 0.875 inches, made from durable chrome steel. It fits snugly with a tight outer diameter tolerance for precise alignment.

This cup handles a range of temperatures from -30°C to 110°C, making it suitable for various environments. Its ABEC-1 rating ensures reliable performance for general industrial use.

The standard cup design is compatible with Timken bearings, offering easy interchangeability. It pairs with multiple bearing part numbers, providing flexibility in assembly.

Ideal for machinery requiring tapered roller bearings, such as gearboxes or wheel hubs. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 414
  • Brand TFL
  • Interchangeable Timken
  • Size 3.03" x 3.4843" x 0.875"
  • Outer Dia 3.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 3.18"
  • Cup Backface Backing Diameter 3.03"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 415-414 , 416-414 , 417-414 , 418-414 , 419-414 , 420-414 , 421-414 , 422-414
  • Cups Type Standard
  • Series 415
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 414 Bearing

414 Bearing is crafted from chrome steel, offering durability and resistance to wear in various industrial applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing installation errors.
With an operating temperature range of -30° to 110°C, it performs reliably in diverse environments.

414 Bearing is interchangeable with Timken models, providing flexibility for maintenance and replacements.
Its standard cup type and ABEC-1 rating make it suitable for general-purpose use.

Application

Key Fields for 414 Single Cups
414 Single Cups are commonly used in agricultural machinery, such as tractor wheel hubs, where their tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in dusty outdoor conditions.

In automotive applications, 414 Single Cups support wheel bearings in trucks and trailers, providing reliable performance under heavy loads. Their inch sizing makes them compatible with many North American vehicle models.

For industrial gearboxes, 414 Single Cups offer smooth operation in high-torque environments. The standard cup design simplifies maintenance and replacement in demanding production settings.

Where Is 414 Single Cups Used?
You’ll often find 414 Single Cups in construction equipment like excavators, where they handle uneven loads and shock impacts. Their robust design suits rough terrains and heavy-duty cycles.

In mining machinery, 414 Single Cups are trusted for conveyor systems and crushers, thanks to their resistance to wear. The ABEC-1 rating ensures consistent performance without over-engineering.

Built for Heavy-Duty Use: 414 Single Cups
414 Single Cups excel in railway axle boxes, where they endure constant vibration and load shifts. The tapered roller design distributes stress evenly for long service life.

They’re also a go-to for wind turbine pitch control systems, combining reliability with straightforward installation. The temperature range suits both cold and moderately hot climates.

Automotive vs Industrial: Applications of 414 Single Cups
In automotive repairs, 414 Single Cups are frequently paired with 415 cones for wheel bearing overhauls. Their interchangeability with Timken simplifies sourcing.

For industrial presses, these cups provide stable rotation under intermittent high pressure. The precise outer diameter tolerance ensures a snug fit in housing bores.
