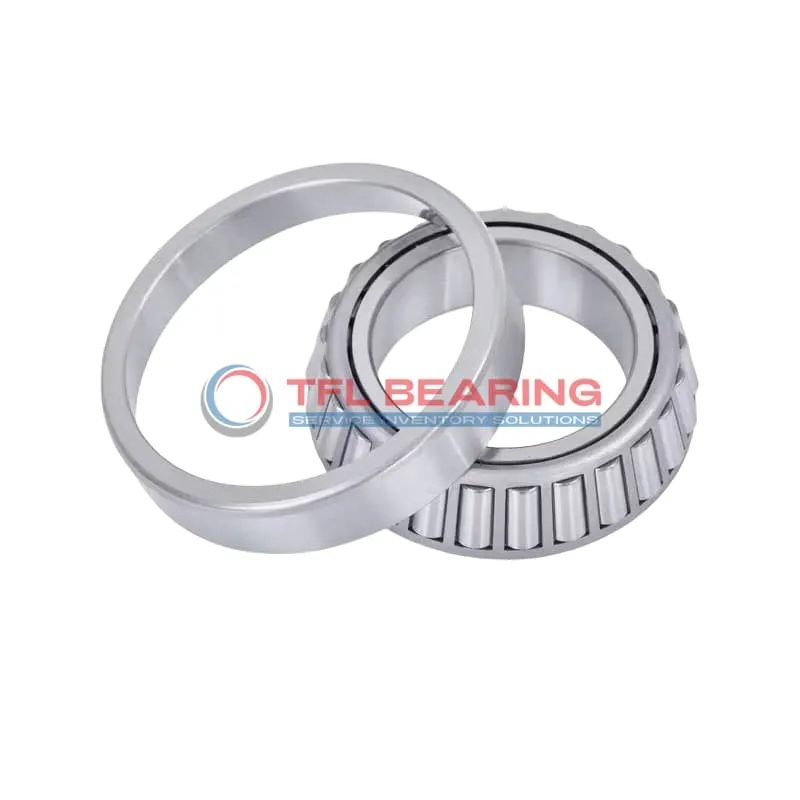

TS (Single Row Tapered Roller Bearings) (Imperial) 369AS-362

TS (Single Row Tapered Roller Bearings) (Imperial) 369AS-362

The 369AS-362 is a single-row tapered roller bearing with a 1.875″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf thrust, suitable for demanding applications.

Its open design allows straightforward lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

Interchangeable with Timken models, it’s a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.2 lb, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 369AS-362
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 3.5433" x 0.7874"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7874"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.24"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 369AS
  • Cup Part Number 362
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.2 lb

Features

Performance Features of 369AS-362 Bearing

369AS-362 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a standard radial clearance, it provides flexibility for different operational needs.

369AS-362 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design ensures smooth performance under both radial and thrust loads.

The bearing requires lubrication but is designed for durability in demanding conditions.
Its ABEC-1 rating balances precision and cost-effectiveness for industrial use.

Application

Industrial Uses of 369AS-362 Bearing
369AS-362 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 369AS-362 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a preferred choice for American-made vehicles.

For industrial automation, 369AS-362 Bearing supports conveyor systems and gearboxes, where its open design allows for easy lubrication. The steel cage adds stability during high-speed operations.

Where Is 369AS-362 Bearing Used?
You’ll often find 369AS-362 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design handles rough terrain. The standard radial clearance ensures smooth rotation under heavy loads.

In mining equipment, 369AS-362 Bearing excels in crushers and screens, thanks to its high dynamic radial load capacity. The ABEC-1 rating balances precision and cost-effectiveness for industrial use.

Built for Heavy-Duty Use: 369AS-362 Bearing
369AS-362 Bearing is ideal for forestry equipment like log splitters, where its tapered rollers manage intense thrust and radial forces. The steel cage keeps rollers aligned under stress.

In material handling systems, 369AS-362 Bearing ensures smooth operation in forklifts and cranes. Its temperature range of -30° to 110°C suits both indoor and outdoor applications.

Automotive vs Aerospace: Applications of 369AS-362 Bearing
In automotive drivetrains, 369AS-362 Bearing handles high torque in axles and transmissions. Its inch measurements align with standard US automotive specs.

For aerospace ground support, 369AS-362 Bearing works in cargo loaders and tow tractors. The chrome steel rollers provide reliability without the need for frequent maintenance.
