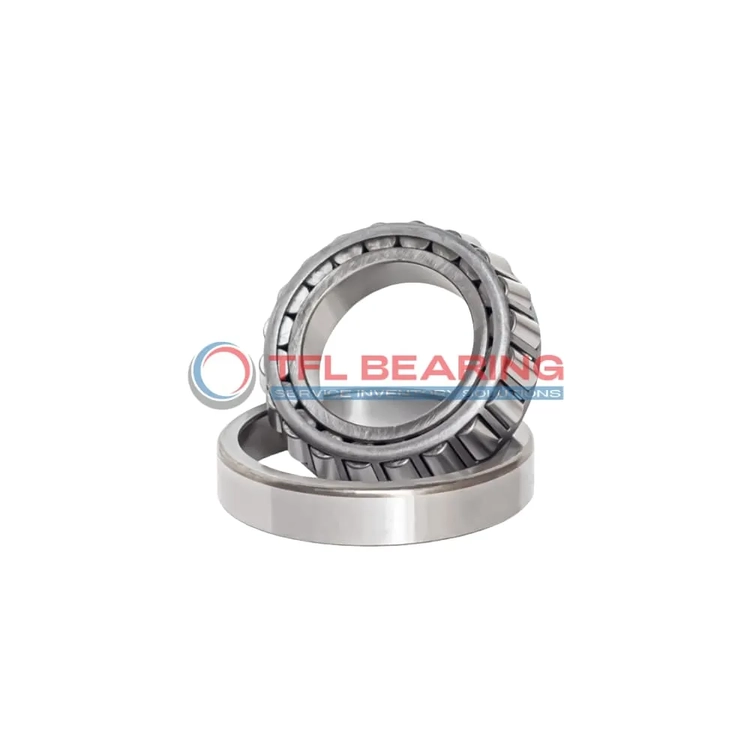

TS (Single Row Tapered Roller Bearings) (Imperial) 467-454

TS (Single Row Tapered Roller Bearings) (Imperial) 467-454

The 467-454 is a single-row tapered roller bearing with a 1.875-inch bore and 4.3307-inch outer diameter, crafted from robust chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf in thrust, making it versatile for various applications.

Its open design and steel cage ensure durability, while the tapered rollers provide smooth operation under heavy loads. The bearing requires regular lubrication and performs well in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 3.1 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 467-454
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 4.3307" x 1.0943"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0943"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.78"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 467
  • Cup Part Number 454
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.1 lb

Features

What Makes 467-454 Bearing Suitable for Heavy-Duty Applications?

467-454 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, making it reliable for heavy-duty machinery.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various working conditions.

How Is 467-454 Bearing Engineered for Reliability?

467-454 Bearing features a single-row tapered roller design, ideal for handling both radial and thrust loads.
The chrome steel construction provides durability and resistance to wear in demanding environments.
Its standard radial clearance ensures smooth operation, while the steel cage maintains roller stability.
With an ABEC-1 rating, it balances precision and performance for industrial applications.

Built for Durability: 467-454 Bearing

467-454 Bearing’s chrome steel components ensure long-lasting performance under heavy loads.
The tapered roller design efficiently distributes stress, reducing wear and extending service life.
Its open construction allows for easy lubrication, maintaining optimal performance over time.
With a static radial load capacity of 37,200 lbf, it excels in rugged applications.

Application

Key Fields for 467-454 Bearing
The 467-454 Bearing is widely used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 467-454 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 467-454 Bearing’s open design allows for easy lubrication, extending its service life in continuous operation. The steel cage adds stability, reducing wear over time.

Medical imaging devices benefit from 467-454 Bearing’s precision, ensuring smooth rotation in critical components. Its standard radial clearance offers consistent performance in sensitive applications.

In robotics, 467-454 Bearing supports articulated arms, where its tapered rollers manage both radial and thrust loads effectively. The ABEC-1 rating ensures adequate precision for most automated tasks.
