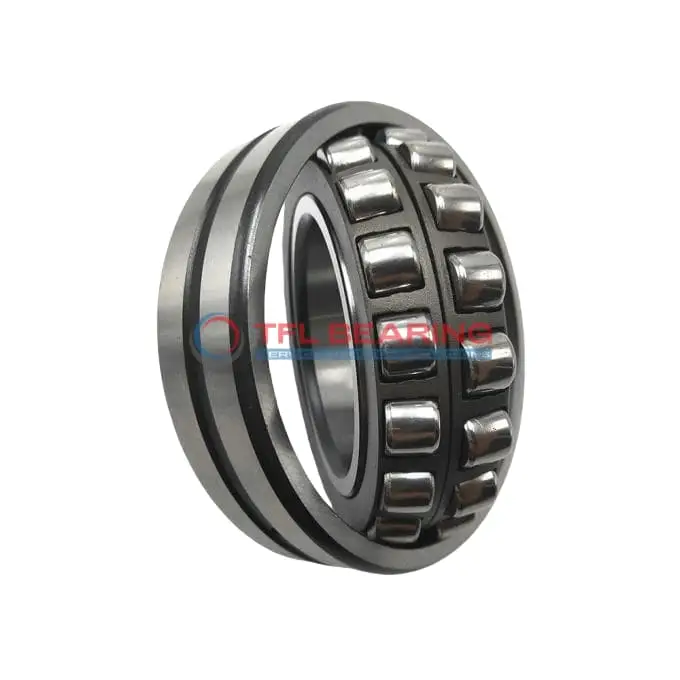

22312C CKJ C3 W33 Double Row Spherical Roller Bearing

22312C CKJ C3 W33 Double Row Spherical Roller Bearing

The 22312C CKJ C3 W33 is a double-row spherical roller bearing with a 60mm bore and 130mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 73063 lbf and spins smoothly at speeds up to 5300 RPM.
Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing operates well in temperatures from -30°C to 200°C, suitable for demanding environments.
With a C3 radial clearance, it accommodates slight misalignments, ideal for heavy machinery or industrial gearboxes. Weighing 2.95kg, it balances strength and manageability.
This model is interchangeable with SKF bearings, offering a reliable replacement option. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22312C CKJ C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 130 x 46 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance +0.03mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 46 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 77.9 mm
  • Shoulder/Recess Dia Of Outer Ring 110 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 73063 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 5300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.95 kg
  • Price （US$） 58.5

Features

Performance Features of 22312C CKJ C3 W33 Bearing

22312C CKJ C3 W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 73063 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends service life even in challenging conditions.

With a maximum speed of 5300 rpm, 22312C CKJ C3 W33 Bearing balances high performance and efficiency.
The C3 radial clearance provides optimal operation under varying thermal conditions.

22312C CKJ C3 W33 Bearing operates in temperatures from -30° to 200°C, suitable for diverse environments.
Its steel cage maintains roller alignment, ensuring smooth and consistent performance.

The lubrication groove and holes in 22312C CKJ C3 W33 Bearing facilitate easy maintenance.
This design helps distribute lubricant evenly, reducing wear and prolonging service intervals.

Application

Industrial Uses of 22312C CKJ C3 W33 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads effortlessly. The spherical rollers also compensate for minor misalignments, ensuring smooth operation.

Where Is 22312C CKJ C3 W33 Bearing Used?
You’ll often find it in mining equipment, where its robust construction withstands harsh conditions. The tapered bore design ensures a secure fit, reducing slippage under heavy loads.

Built for Heavy-Duty Use: 22312C CKJ C3 W33 Bearing
It’s a go-to choice for conveyor systems in manufacturing plants, thanks to its high dynamic load capacity. The steel cage adds durability, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 22312C CKJ C3 W33 Bearing
In automotive applications, it supports gearboxes and drivetrains, while in aerospace, it’s used in auxiliary systems. The wide temperature range ensures performance in varying environments.

Perfect Fit for Automation: 22312C CKJ C3 W33 Bearing
This bearing excels in robotic arms and automated assembly lines, where precision and load capacity are key. The lubrication groove design simplifies maintenance, reducing downtime.
