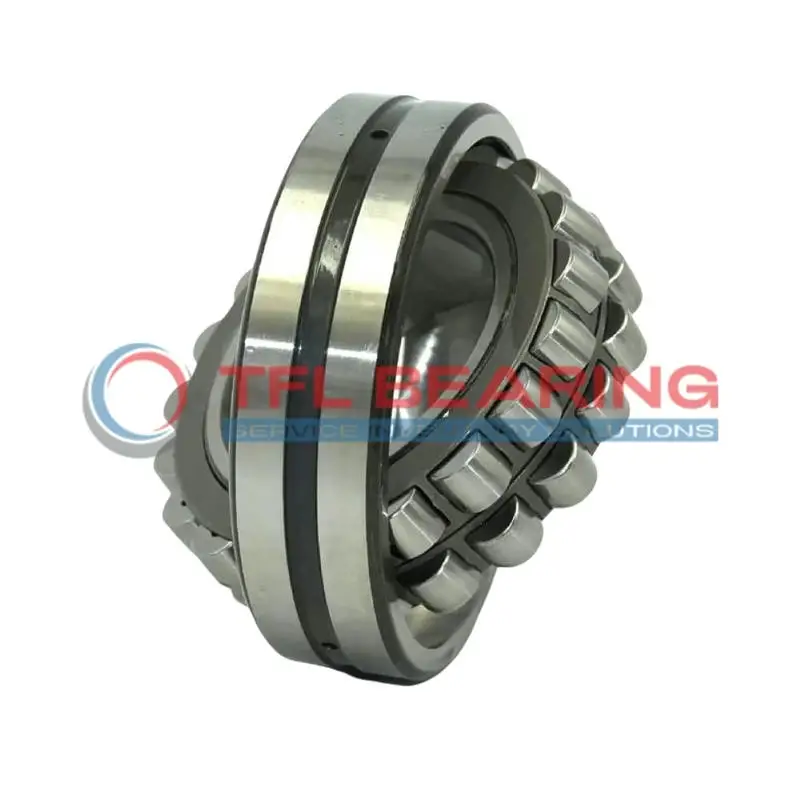

24152 CCK30/C2W33 Double Row Spherical Roller Bearing

24152 CCK30/C2W33 Double Row Spherical Roller Bearing

The 24152 CCK30/C2W33 is a double-row spherical roller bearing with a 260mm bore and 440mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 69376 lbf and runs smoothly at speeds up to 1500 RPM.

Its spherical roller design adjusts to misalignment, while the steel cage ensures durability. The open construction allows easy lubrication through the 9mm holes, ideal for high-load environments.

This bearing suits heavy machinery like crushers or mining equipment, where shock loads and misalignment are common. It operates in temperatures from -30°C to 200°C.

Weighing 110kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24152 CCK30/C2W33
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 440 x 180 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 440 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 180 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 293 mm
  • Shoulder/Recess Dia Of Outer Ring 368 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 69376 lbf
  • Static Radial Load 1079083 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 110 kg
  • Price （US$） US$3,259.94

Features

Performance Features of 24152 CCK30/C2W33 Bearing

24152 CCK30/C2W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 69376 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 1500 rpm, it delivers reliable performance in demanding environments.

24152 CCK30/C2W33 Bearing operates in temperatures from -30° to 200°C, ensuring versatility.
The tapered bore design simplifies installation and enhances stability during operation.

The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.
Its C2 radial clearance provides optimal performance for various industrial applications.

Application

Industrial Uses of 24152 CCK30/C2W33 Bearing
The 24152 CCK30/C2W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. Its tapered bore ensures a secure fit, reducing slippage during operation.

In automotive applications, 24152 CCK30/C2W33 Bearing supports large vehicle components such as axles and transmissions, providing stability under high radial loads. The chrome steel construction offers durability, even in demanding conditions.

For industrial fans and blowers, 24152 CCK30/C2W33 Bearing’s spherical roller design accommodates misalignment, ensuring smooth rotation. The open seal type allows for easy lubrication, extending service life in continuous-use environments.

Where Is 24152 CCK30/C2W33 Bearing Used?
You’ll often find 24152 CCK30/C2W33 Bearing in mining equipment, where its high dynamic load capacity withstands harsh conditions. The steel cage enhances strength, making it reliable for heavy-duty applications.

In paper mills, 24152 CCK30/C2W33 Bearing supports rollers, handling both radial and axial loads with ease. Its C2 radial clearance ensures optimal performance, even at high speeds.

Built for Heavy-Duty Use: 24152 CCK30/C2W33 Bearing
The 24152 CCK30/C2W33 Bearing excels in construction machinery, such as cranes and excavators, thanks to its robust design. Its temperature range of -30° to 200°C makes it suitable for extreme environments.

In wind turbines, 24152 CCK30/C2W33 Bearing’s spherical rollers compensate for shaft misalignment, reducing wear. The lubrication groove design simplifies maintenance, ensuring long-term reliability.
