Drawn Cup Needle Roller Bearings BCH1810

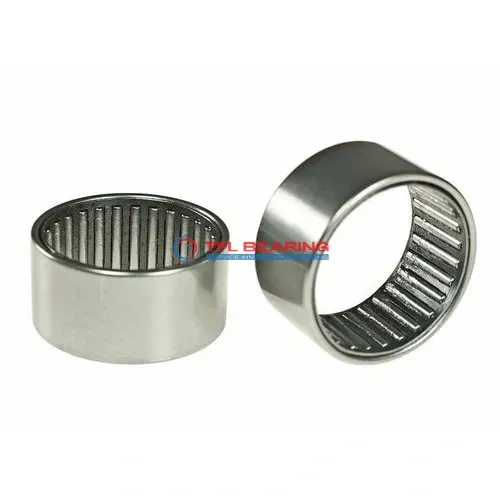

Drawn Cup Needle Roller Bearings BCH1810

The BCH1810 is a drawn cup needle roller bearing with a 1.125″ bore and 1.5″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4901 lbf and spins smoothly at speeds up to 8700 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. It works well in temperatures from -20°C to 110°C, making it suitable for automotive or industrial applications.
With a compact width of 0.625″, it fits neatly into tight spaces. RoHS compliant for safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCH1810
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4901 lbf
  • Static Radial Load 6519 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8700 rpm
  • Weight 43 g
Drawn Cup Needle Roller Bearings BCH1810 dimension drawing
Download DWG Download PDF

Features

Why Choose BCH1810 Bearing for Precision Tasks?
BCH1810 Bearing features a steel construction, ensuring durability and resistance to wear in radial load applications.
Its dynamic radial load capacity of 4901 lbf makes it suitable for high-performance machinery.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 8700 rpm, BCH1810 Bearing delivers reliable performance in demanding conditions.

Application

Industrial Uses of BCH1810 Bearing
BCH1810 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The press-fit mounting ensures a secure installation, reducing maintenance needs over time.
Where Is BCH1810 Bearing Used?
You’ll often spot BCH1810 Bearing in automotive steering systems, providing smooth rotation under heavy loads. Its steel construction handles wear well, making it a reliable choice for long-term use in vehicles.
Built for Heavy-Duty Use: BCH1810 Bearing
In conveyor systems, BCH1810 Bearing excels due to its ability to handle continuous radial loads. The open design allows for easy lubrication, keeping operations running smoothly even in demanding environments.
Automotive vs Industrial: Applications of BCH1810 Bearing
BCH1810 Bearing works equally well in both automotive and industrial settings, from transmission systems to heavy machinery. Its inch sizing makes it a versatile fit for various equipment types.
Perfect Fit for Automation: BCH1810 Bearing
BCH1810 Bearing is a go-to for robotic arms, where precision and durability are key. The needle roller design ensures low friction, enhancing performance in high-speed automation tasks.
