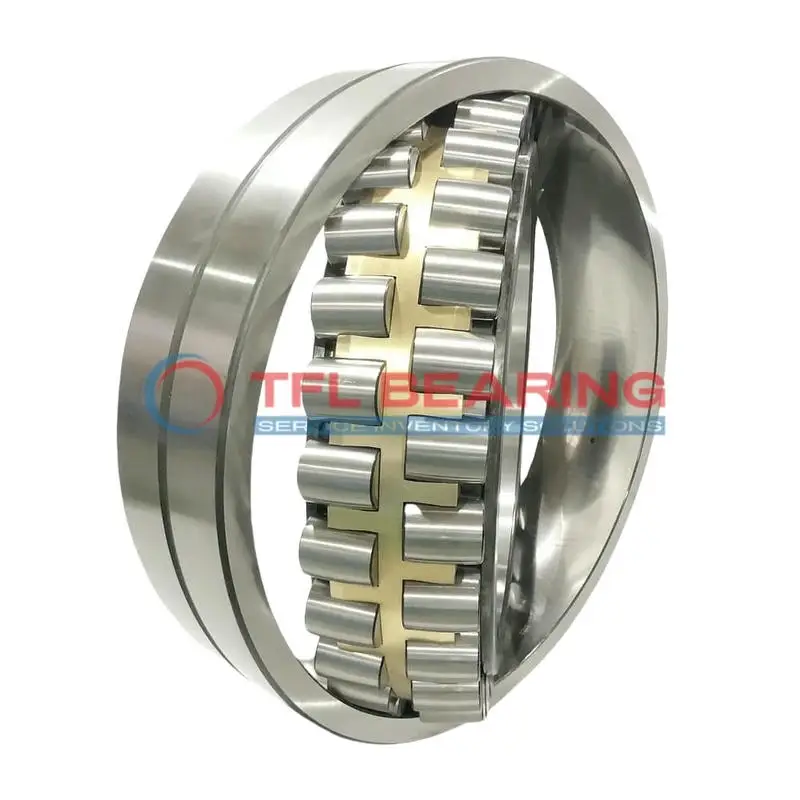

241/600 ECAK30/C3W33 Double Row Spherical Roller Bearing

241/600 ECAK30/C3W33 Double Row Spherical Roller Bearing

The 241/600 ECAK30/C3W33 is a double-row spherical roller bearing with a 600mm bore and 980mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 3039867 lbf and operates smoothly at speeds up to 300 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:30) simplifies installation. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

With a C3 radial clearance, it accommodates thermal expansion in heavy-duty applications. Ideal for industrial machinery like crushers or large gearboxes where high radial loads are common.

Weighing 1100kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/600 ECAK30/C3W33
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 980 x 375 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance +0.05mm to 0
  • Outer Dia 980 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 375 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 702 mm
  • Shoulder/Recess Dia Of Outer Ring 845 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3039867 lbf
  • Static Radial Load 5305491 lbf
  • Max Speed 300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1100 kg
  • Price （US$） US$20,048.99

Features

Performance Features of 241/600 ECAK30/C3W33 Bearing

241/600 ECAK30/C3W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 3,039,867 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and wear.
With a maximum speed of 300 rpm, it maintains stability under demanding conditions.

241/600 ECAK30/C3W33 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its tapered bore design simplifies installation, saving time and effort.

The C3 radial clearance provides optimal performance under heavy loads.
This bearing is designed for long service life, reducing maintenance and replacement costs.

Application

Industrial Uses of 241/600 ECAK30/C3W33 Bearing
241/600 ECAK30/C3W33 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles high radial and axial loads effortlessly.
The brass cage ensures smooth operation even under extreme conditions, making it a reliable choice for demanding industrial environments.

What Makes 241/600 ECAK30/C3W33 Bearing a Preferred Choice?
In wind turbines, 241/600 ECAK30/C3W33 Bearing’s spherical roller design accommodates misalignment, reducing wear and extending service life.
Its tapered bore simplifies installation, while the C3 radial clearance allows for thermal expansion in high-temperature applications.

Built for Heavy-Duty Use: 241/600 ECAK30/C3W33 Bearing
For steel mills and paper processing plants, 241/600 ECAK30/C3W33 Bearing’s chrome steel construction withstands continuous heavy loads.
The lubrication groove and holes ensure consistent performance, even in dusty or high-moisture environments.

Automotive vs Aerospace: Applications of 241/600 ECAK30/C3W33 Bearing
While too large for most automotive uses, 241/600 ECAK30/C3W33 Bearing excels in aerospace ground support equipment like aircraft tugs.
Its dynamic load capacity and temperature range make it suitable for both stationary and mobile heavy-duty applications.
