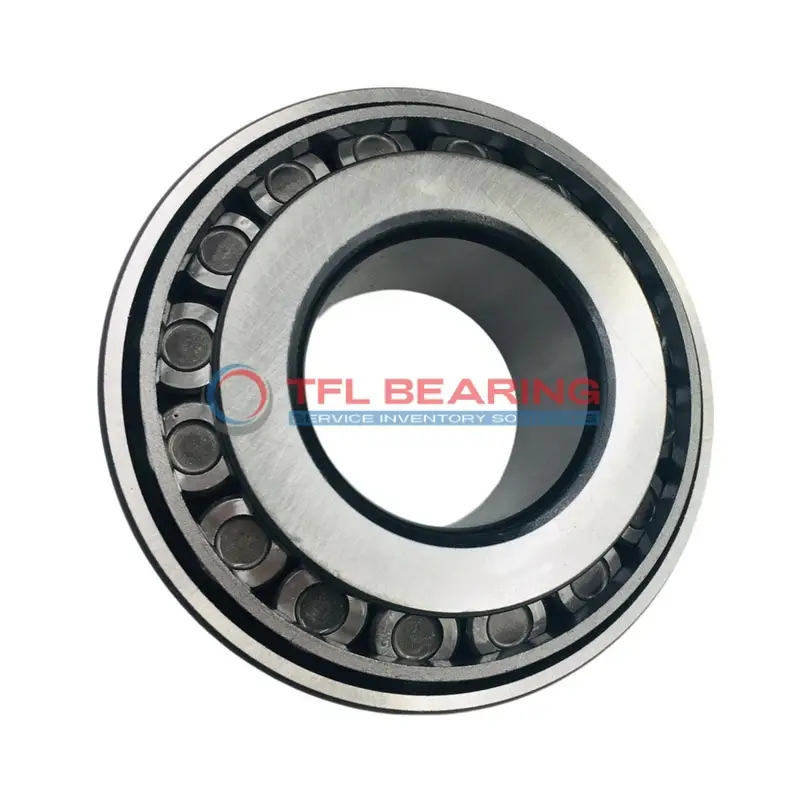

567-S Single Cones (Imperial)

567-S Single Cones (Imperial)

The 567-S is a single-row tapered roller bearing with a 2.8125″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 44100 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With standard radial clearance and ABEC-1 rating, it offers consistent performance for industrial applications. Ideal for heavy-duty machinery or equipment where combined loads are common.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various engineering needs. The compact design and robust construction make it suitable for tight spaces and demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567-S
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 567-S-563
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 565
  • Bore Dia 2.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 3.15"
  • Cone Backface Backing Diameter 3.62"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 76900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 19900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does 567-S Bearing Handle Combined Loads?

567-S Bearing is built with chrome steel rings and a steel cage, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding conditions.
The tapered roller design efficiently distributes combined loads, reducing stress and wear.
With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Industrial Uses of 567-S Bearing
567-S Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes 567-S Bearing a Preferred Choice?
In automotive applications, 567-S Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models, ensuring easy integration.

Built for Heavy-Duty Use: 567-S Bearing
For industrial conveyor systems, 567-S Bearing’s chrome steel construction ensures durability and consistent operation. The steel cage adds strength, making it suitable for high-load scenarios where reliability is key.

Automotive vs Aerospace: Applications of 567-S Bearing
In automotive settings, 567-S Bearing excels in transmissions and axles, offering robust performance. While not typically used in aerospace, its precision and load capacity make it ideal for ground-based heavy machinery.

Where Is 567-S Bearing Used?
You’ll often find 567-S Bearing in agricultural machinery, where its ability to handle radial and thrust loads is invaluable. The standard radial clearance options provide flexibility for different operational needs.
