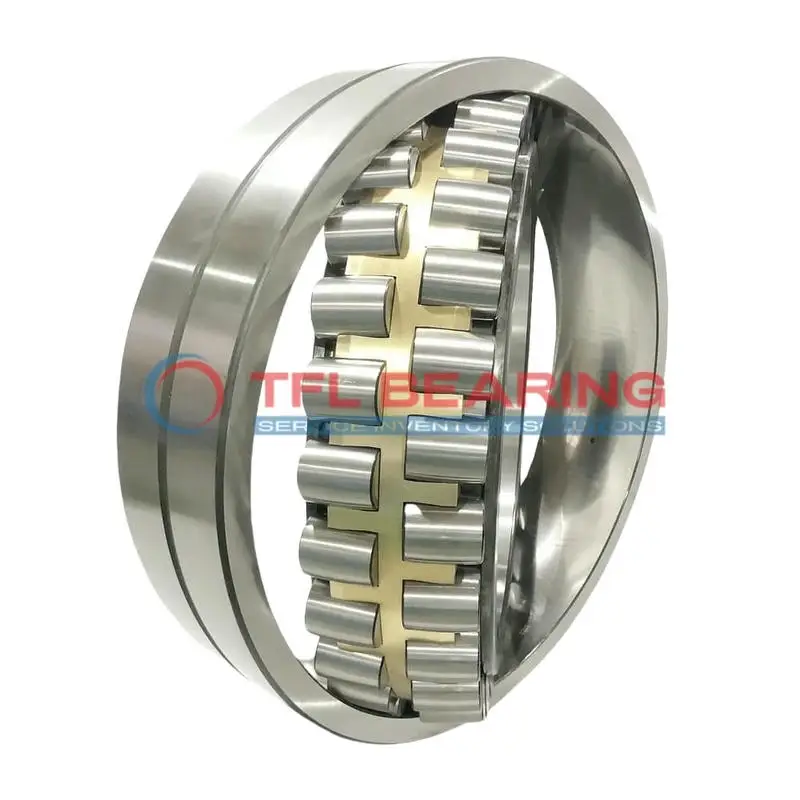

241/600 ECAK30/C08W33 Double Row Spherical Roller Bearing

241/600 ECAK30/C08W33 Double Row Spherical Roller Bearing

The 241/600 ECAK30/C08W33 is a double-row spherical roller bearing with a large 600mm bore and 980mm outer diameter, built from tough chrome steel. It handles combined loads up to 3039867 lbf and runs smoothly at speeds up to 300 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:30) allows for secure fitting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or large gearboxes where high radial loads are common.

Weighing 1100kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards, it requires regular lubrication for optimal performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/600 ECAK30/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 980 x 375 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance +0.05mm to 0
  • Outer Dia 980 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 375 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 702 mm
  • Shoulder/Recess Dia Of Outer Ring 845 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3039867 lbf
  • Static Radial Load 5305491 lbf
  • Max Speed 300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1100 kg

Features

Performance Features of 241/600 ECAK30/C08W33 Bearing

241/600 ECAK30/C08W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 3,039,867 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 300 rpm, it maintains stable performance under demanding conditions.

241/600 ECAK30/C08W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring precise alignment and reliable operation.

The open seal type allows for easy lubrication, extending the bearing’s service life.
Weighing 1100 kg, it is designed for robust industrial use while maintaining precision.

Application

Industrial Uses of 241/600 ECAK30/C08W33 Bearing
241/600 ECAK30/C08W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The brass cage ensures smooth operation even in demanding conditions.

In mining equipment, 241/600 ECAK30/C08W33 Bearing’s tapered bore provides a secure fit for rotating components, reducing vibration and wear. Its large size and robust construction make it ideal for long-term use in harsh environments.

For wind turbines, 241/600 ECAK30/C08W33 Bearing supports the main shaft, offering reliable performance under varying loads. The chrome steel rollers and rings enhance durability, while the open design simplifies lubrication.

What Makes 241/600 ECAK30/C08W33 Bearing a Preferred Choice?
241/600 ECAK30/C08W33 Bearing excels in paper manufacturing machinery, where its spherical rollers accommodate misalignment. The metric dimensions ensure compatibility with a wide range of industrial equipment.

Built for Heavy-Duty Use: 241/600 ECAK30/C08W33 Bearing
241/600 ECAK30/C08W33 Bearing is a go-to for steel mills, handling extreme loads and high temperatures. Its dynamic radial load capacity makes it suitable for rolling mills and other high-stress applications.

Light-Duty vs Heavy-Duty: Best Uses for 241/600 ECAK30/C08W33 Bearing
241/600 ECAK30/C08W33 Bearing is tailored for heavy-duty industrial applications like cement kilns, where its combined load capacity shines. The brass cage and chrome steel construction ensure longevity even in abrasive conditions.

In marine propulsion systems, 241/600 ECAK30/C08W33 Bearing’s tapered bore and spherical rollers handle misalignment from shaft flexing. The large lubrication holes make maintenance straightforward in remote locations.

For conveyor systems in ports, 241/600 ECAK30/C08W33 Bearing’s high static radial load capacity supports heavy materials. The open seal design allows for easy inspection and relubrication during routine maintenance.
