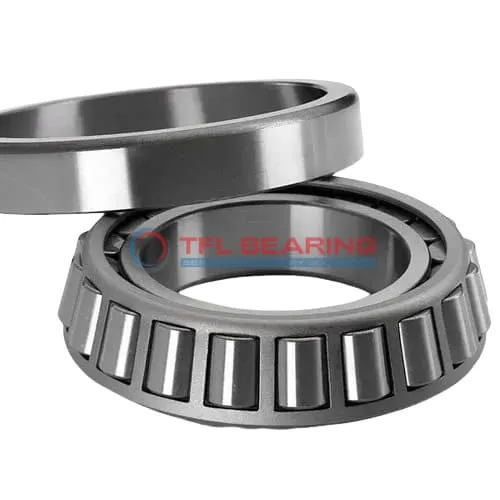

TS (Single Row Tapered Roller Bearings) (Imperial) EE560629-561251

TS (Single Row Tapered Roller Bearings) (Imperial) EE560629-561251

The EE560629-561251 is a single-row tapered roller bearing with a 6.296″ bore and 12.5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 234,000 lbf radially and 48,200 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or large vehicles where robust performance is needed.

Weighing 56.60 lb, it’s designed for stability and long service life. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE560629-561251
  • Brand TFL
  • Interchangeable Timken
  • Size 6.296" x 12.5" x 3.0626"
  • Bore Dia 6.296"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.5"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.0626"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.410"
  • Cup Backface ToClear Radius 0.190"
  • Cone Frontface Backing Diameter 8.27"
  • Cone Backface Backing Diameter 7.95"
  • Cup Frontface Backing Diameter 11.36"
  • Cup Backface Backing Diameter 10.98"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.5"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE560629
  • Cup Part Number 561251
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 560000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 234000 lbf
  • Static Radial Load 295000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 60700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 48200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 56.60 lb

Features

Performance Features of EE560629-561251 Bearing

EE560629-561251 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 234,000 lbf, ensuring reliable performance in heavy-duty applications.

The single-row tapered roller design provides effective load distribution, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

EE560629-561251 Bearing features a steel cage for stability, maintaining roller alignment under stress.
Its standard radial clearance options allow flexibility for different precision requirements.

Application

Industrial Uses of EE560629-561251 Bearing
EE560629-561251 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is EE560629-561251 Bearing Used?
You’ll often find EE560629-561251 Bearing in automotive applications, particularly in truck wheel hubs and differential systems. Its imperial sizing makes it a straightforward fit for North American vehicle designs.

Built for Heavy-Duty Use: EE560629-561251 Bearing
EE560629-561251 Bearing excels in industrial gearboxes, providing reliable performance under high radial and thrust loads. The steel cage adds extra strength, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of EE560629-561251 Bearing
In automotive settings, EE560629-561251 Bearing supports axle systems, while in aerospace, it’s used in landing gear mechanisms. Its ABEC-1 rating ensures consistent precision for both industries.

Key Fields for EE560629-561251 Bearing
EE560629-561251 Bearing is a go-to choice for agricultural machinery, such as tractors and harvesters. The standard radial clearance allows for smooth performance even in dusty environments.
