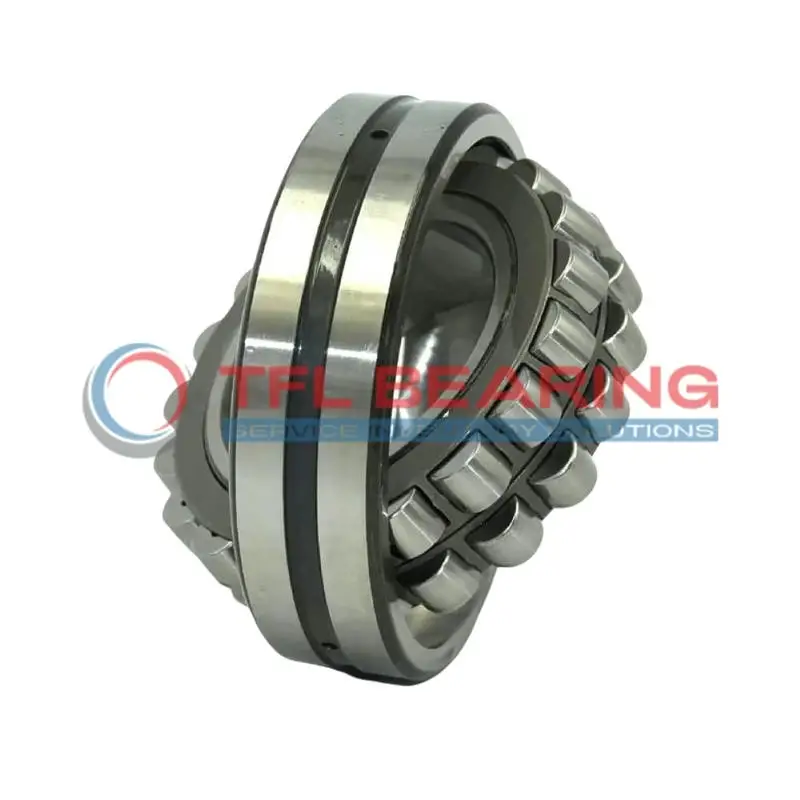

24052 CC/W33 Double Row Spherical Roller Bearing

24052 CC/W33 Double Row Spherical Roller Bearing

The 24052 CC/W33 is a double-row spherical roller bearing with a 260mm bore and 400mm outer diameter, built from tough chrome steel. It handles combined loads up to 479,967 lbf and runs smoothly at speeds up to 1400 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability under heavy loads. The open construction requires regular lubrication, with grooves and holes for easy maintenance.

This bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments. It’s interchangeable with SKF models, ideal for industrial machinery like crushers or large gearboxes.

Weighing 63.5kg, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24052 CC/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 400 x 140 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 140 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 289 mm
  • Shoulder/Recess Dia Of Outer Ring 347 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 479967 lbf
  • Static Radial Load 775591 lbf
  • Max Speed 1400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 63.5 kg
  • Price （US$） US$1,627.52

Features

Performance Features of 24052 CC/W33 Bearing

24052 CC/W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 479,967 lbf, making it suitable for heavy-duty industrial applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 1,400 rpm, it balances performance and durability in demanding environments.

24052 CC/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, reducing wear and extending service life.

The lubrication groove and hole design ensures consistent lubrication, enhancing reliability.
This bearing is ideal for applications requiring high load capacity and long-term performance.

Application

Industrial Uses of 24052 CC/W33 Bearing
The 24052 CC/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. Its chrome steel construction ensures durability in demanding industrial environments.

Where Is 24052 CC/W33 Bearing Used?
You’ll often find 24052 CC/W33 Bearing in mining equipment, where its high load capacity and spherical roller design accommodate misalignment. The lubrication groove helps maintain performance even in dusty or harsh conditions.

Built for Heavy-Duty Use: 24052 CC/W33 Bearing
24052 CC/W33 Bearing excels in paper mill machinery, supporting large rollers that require smooth operation under heavy loads. The steel cage and chrome steel rollers provide long service life, reducing maintenance downtime.

Automotive vs Aerospace: Applications of 24052 CC/W33 Bearing
In large vehicles like trucks and buses, 24052 CC/W33 Bearing supports drivetrain components, while its high-temperature tolerance makes it unsuitable for most aerospace applications. Its metric sizing ensures compatibility with European and Asian heavy vehicles.

Practical Applications of 24052 CC/W33 Bearing
For wind turbines, 24052 CC/W33 Bearing handles the variable loads and misalignment common in rotor shafts. The open design allows for easy relubrication, extending bearing life in remote installations.
