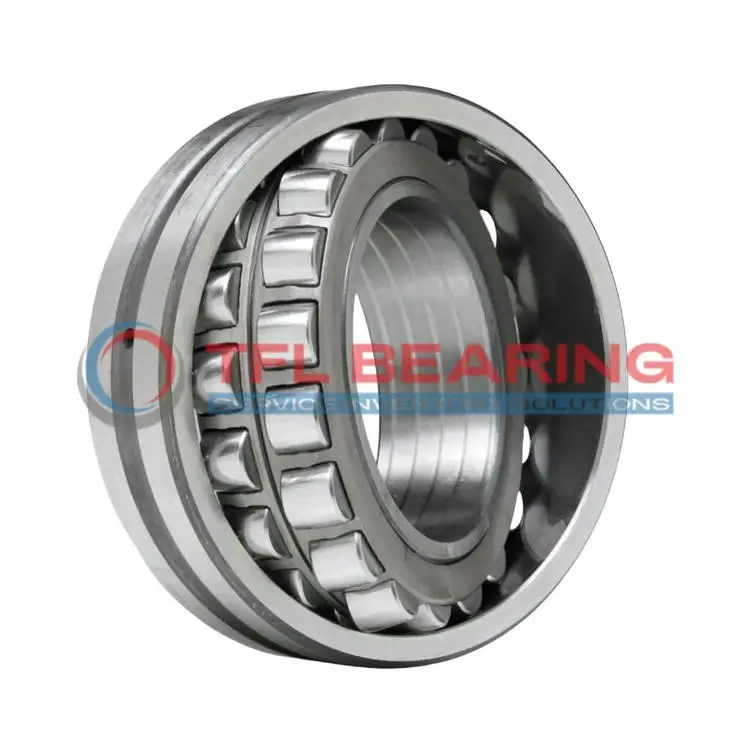

24040 CC/C3W513 Double Row Spherical Roller Bearing

24040 CC/C3W513 Double Row Spherical Roller Bearing

The 24040 CC/C3W513 is a double-row spherical roller bearing with a 200mm bore and 310mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 304,167 lbf and runs smoothly at speeds up to 1900 RPM.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates well in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery, industrial gearboxes, or applications requiring high radial load capacity.

Weighing 30kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24040 CC/C3W513
  • Brand TFL
  • Interchangeable SKF
  • Size 200 x 310 x 109 mm
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 310 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 109 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 223 mm
  • Shoulder/Recess Dia Of Outer Ring 268 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 304167 lbf
  • Static Radial Load 476595 lbf
  • Max Speed 1900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 30 kg

Features

Performance Features of 24040 CC/C3W513 Bearing

24040 CC/C3W513 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 304167 lbf, ensuring robust performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining smooth operation.
With a maximum speed of 1900 rpm, it balances durability and efficiency in demanding conditions.

24040 CC/C3W513 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The C3 radial clearance provides flexibility, accommodating thermal expansion during use.

Steel cage construction ensures proper roller alignment, reducing wear and extending service life.
Lubrication grooves and holes facilitate easy maintenance, enhancing long-term reliability.

Application

Industrial Uses of 24040 CC/C3W513 Bearing
24040 CC/C3W513 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The chrome steel construction ensures durability in demanding industrial environments.

In automotive applications, 24040 CC/C3W513 Bearing supports large drivetrain components, such as truck axles and transmissions. Its high dynamic radial load capacity makes it reliable for long-haul vehicles.

For wind turbines, 24040 CC/C3W513 Bearing’s ability to withstand combined loads and misalignment is crucial. The C3 radial clearance allows for thermal expansion, ensuring stable performance in varying temperatures.

Where Is 24040 CC/C3W513 Bearing Used?
You’ll often find 24040 CC/C3W513 Bearing in mining equipment, where its robust design handles extreme loads and harsh conditions. The steel cage adds extra strength for prolonged use.

In construction machinery, this bearing supports large rotating parts like crane slewing rings. Its metric sizing ensures compatibility with standard European and Asian equipment.

Built for Heavy-Duty Use: 24040 CC/C3W513 Bearing
24040 CC/C3W513 Bearing excels in paper mill machinery, where its spherical rollers manage misalignment from heavy rolls. The open design simplifies lubrication, reducing downtime.

For marine applications, this bearing’s temperature range (-30° to 200°C) suits engine and propeller systems. The chrome steel rollers resist corrosion in salty environments.

Automotive vs Aerospace: Applications of 24040 CC/C3W513 Bearing
In automotive, 24040 CC/C3W513 Bearing handles high loads in truck wheel hubs, while in aerospace, it’s used in landing gear systems. The metric dimensions fit both industries’ standards.

The bearing’s C3 clearance accommodates thermal expansion in aerospace, whereas in automotive, it ensures smooth rotation under heavy loads. Steel cage construction adds reliability in both fields.
