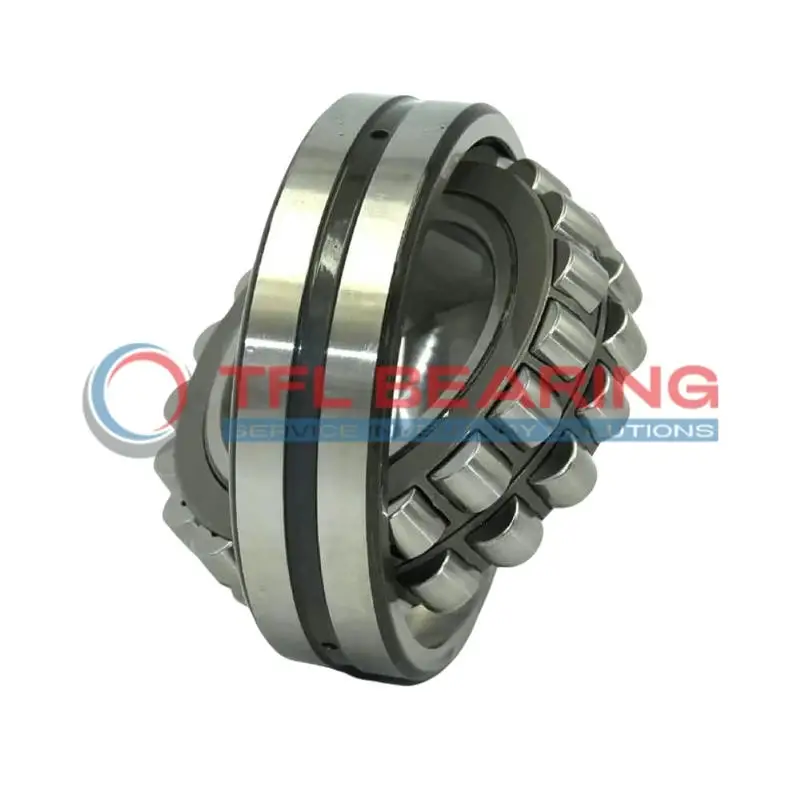

24052 CC/C4W33VA991 Double Row Spherical Roller Bearing

24052 CC/C4W33VA991 Double Row Spherical Roller Bearing

The 24052 CC/C4W33VA991 is a double-row spherical roller bearing with a 260mm bore and 400mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 479,967 lbf and operates smoothly at speeds up to 2200 RPM.

Its open design and C4 radial clearance allow for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or mining equipment where high radial loads are common.

Weighing 63.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24052 CC/C4W33VA991
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 400 x 140 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 140 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 289 mm
  • Shoulder/Recess Dia Of Outer Ring 347 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 479967 lbf
  • Static Radial Load 775591 lbf
  • Max Speed 2200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 63.5 kg

Features

Performance Features of 24052 CC/C4W33VA991 Bearing

24052 CC/C4W33VA991 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 479967 lbf, ensuring dependable performance in heavy-duty applications.

The double-row spherical roller design allows for self-alignment, reducing stress and wear.
This feature makes it suitable for applications where shaft deflection or misalignment may occur.

24052 CC/C4W33VA991 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, enhancing durability and extending service life.

With a maximum speed of 2200 rpm, it balances high performance and reliability.
The C4 radial clearance ensures smooth operation under varying thermal conditions.

Application

Industrial Uses of 24052 CC/C4W33VA991 Bearing
24052 CC/C4W33VA991 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The spherical roller type also compensates for misalignment, ensuring smooth operation in rough conditions.

Where Is 24052 CC/C4W33VA991 Bearing Used?
You’ll find 24052 CC/C4W33VA991 Bearing in mining equipment, where its high dynamic radial load capacity withstands extreme forces. The chrome steel construction and C4 clearance make it reliable for high-temperature environments.

Built for Heavy-Duty Use: 24052 CC/C4W33VA991 Bearing
24052 CC/C4W33VA991 Bearing excels in paper mill machinery, supporting large rollers under constant stress. Its steel cage and lubrication groove design reduce wear, extending service life even in demanding applications.

Automotive vs Aerospace: Applications of 24052 CC/C4W33VA991 Bearing
In automotive, 24052 CC/C4W33VA991 Bearing suits large trucks and buses, handling heavy axial and radial loads. For aerospace, its precision and temperature range make it suitable for ground support equipment.

Practical Applications of 24052 CC/C4W33VA991 Bearing
24052 CC/C4W33VA991 Bearing is ideal for wind turbines, where its spherical rollers adapt to shaft deflections. The metric sizing and high static load capacity ensure compatibility with European and Asian turbine designs.
