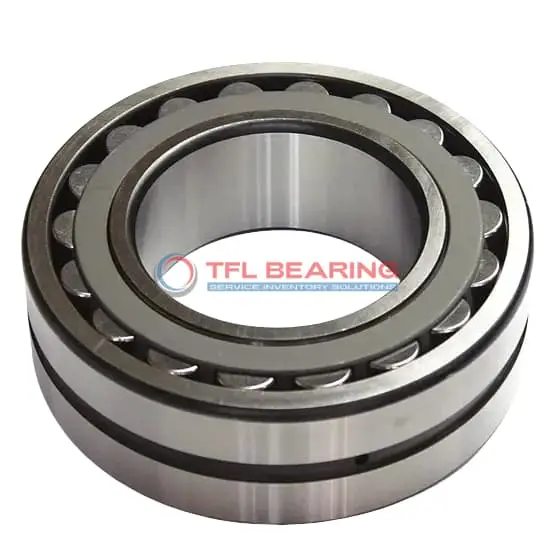

24034/C3W33VA9B1 Double Row Spherical Roller Bearing

24034/C3W33VA9B1 Double Row Spherical Roller Bearing

The 24034/C3W33VA9B1 is a double row spherical roller bearing with a 170mm bore and 260mm outer diameter, built from sturdy chrome steel. It handles combined loads with a static radial capacity of 328221 lbf and operates at speeds up to 20 RPM.

Its open design and C3 radial clearance allow for thermal expansion, while the steel cage ensures durability. The bearing includes lubrication grooves and holes for easy maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like mining equipment or industrial machinery where high loads are common.

Weighing 17.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 200°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24034/C3W33VA9B1
  • Brand TFL
  • Interchangeable SKF
  • Size 170 x 260 x 90 mm
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 90 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 188 mm
  • Shoulder/Recess Dia Of Outer Ring 226 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Static Radial Load 328221 lbf
  • Max Speed 20 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 17.3 kg

Features

Structural Advantages of 24034/C3W33VA9B1 Bearing

24034/C3W33VA9B1 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability, even under high static radial loads up to 328221 lbf.

The lubrication groove and holes in 24034/C3W33VA9B1 Bearing facilitate smooth operation, reducing friction and wear.
With a temperature range of -30° to 200°C, it performs reliably in varied environments.

24034/C3W33VA9B1 Bearing’s cylindrical bore simplifies installation, saving time and effort.
Its steel cage maintains roller alignment, enhancing longevity and reducing maintenance needs.

Designed for low-speed applications, 24034/C3W33VA9B1 Bearing excels in heavy-duty machinery.
The C3 radial clearance ensures optimal performance under varying thermal conditions.

Application

Industrial Uses of 24034/C3W33VA9B1 Bearing
24034/C3W33VA9B1 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rugged environments.

In mining equipment, 24034/C3W33VA9B1 Bearing supports conveyor systems and gearboxes, thanks to its robust chrome steel rollers and steel cage. Its C3 radial clearance allows for thermal expansion, making it suitable for high-temperature applications.

For wind turbines, 24034/C3W33VA9B1 Bearing provides reliable performance in gearboxes and yaw systems, where its lubrication grooves ensure consistent operation. The metric sizing and interchangeable design with SKF make it a versatile choice for global installations.

Where Is 24034/C3W33VA9B1 Bearing Used?
24034/C3W33VA9B1 Bearing is ideal for paper mill machinery, particularly in rollers and dryers, where its high static load capacity ensures durability. The open seal design simplifies maintenance, reducing downtime in continuous production lines.

In construction equipment like cranes and excavators, 24034/C3W33VA9B1 Bearing handles heavy combined loads with ease. Its temperature range of -30° to 200°C makes it adaptable to both cold and hot working conditions.

Built for Heavy-Duty Use: 24034/C3W33VA9B1 Bearing
24034/C3W33VA9B1 Bearing excels in steel plants, supporting rolling mills and continuous casting machines. The spherical rollers and steel cage provide long service life even under extreme loads and harsh conditions.

For marine applications, 24034/C3W33VA9B1 Bearing is used in propeller shafts and winches, where its corrosion-resistant materials and lubrication system enhance reliability. The metric dimensions ensure compatibility with international marine standards.
