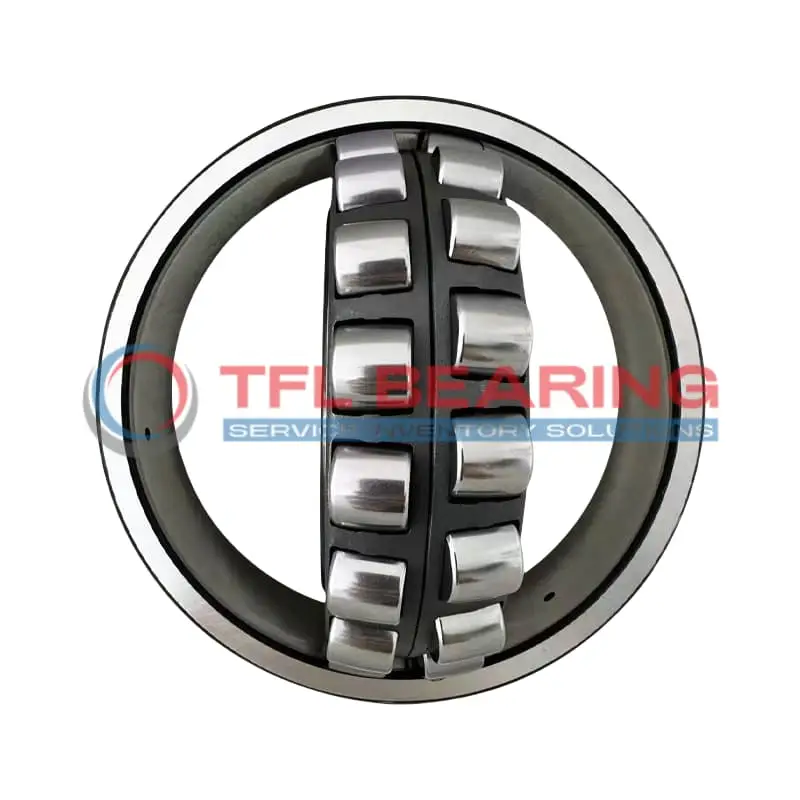

24032 CCK30/C3FW503 Double Row Spherical Roller Bearing

24032 CCK30/C3FW503 Double Row Spherical Roller Bearing

The 24032 CCK30/C3FW503 is a double-row spherical roller bearing with a 160mm bore and 240mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 176025 lbf and operates smoothly at speeds up to 2400 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures reliable performance under heavy loads. The bearing requires regular lubrication, with grooves and holes designed for easy maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery, gearboxes, or heavy equipment where combined loads and misalignment are common.

Weighing 12.5kg, it’s built to withstand temperatures from -30°C to 200°C. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24032 CCK30/C3FW503
  • Brand TFL
  • Interchangeable SKF
  • Size 160 x 240 x 80 mm
  • Bore Dia 160 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 176 mm
  • Shoulder/Recess Dia Of Outer Ring 211 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 176025 lbf
  • Static Radial Load 269771 lbf
  • Max Speed 2400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 12.5 kg
  • Price （US$） US$381.56

Features

Performance Features of 24032 CCK30/C3FW503 Bearing

24032 CCK30/C3FW503 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 176025 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 2400 rpm, it maintains efficiency even under demanding conditions.

24032 CCK30/C3FW503 Bearing operates in temperatures from -30° to 200°C, suitable for various industrial environments.
The C3 radial clearance provides flexibility, accommodating thermal expansion during operation.

Its open design simplifies lubrication, ensuring smooth performance over time.
The tapered bore design allows for secure mounting, enhancing stability during use.

Application

Industrial Uses of 24032 CCK30/C3FW503 Bearing
24032 CCK30/C3FW503 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rough conditions.

In automotive applications, 24032 CCK30/C3FW503 Bearing supports large drivetrain components, such as truck axles and gearboxes. Its tapered bore provides a secure fit, while the C3 clearance accommodates thermal expansion during long hauls.

For industrial fans and blowers, 24032 CCK30/C3FW503 Bearing’s high-speed capability (up to 2400 rpm) makes it a reliable choice. The chrome steel rollers and steel cage offer durability, even in dusty or high-temperature environments.

Where Is 24032 CCK30/C3FW503 Bearing Used?
You’ll find 24032 CCK30/C3FW503 Bearing in mining equipment, where its robust design withstands extreme loads and vibrations. The lubrication groove ensures consistent performance, even in remote or harsh locations.

In paper mills, 24032 CCK30/C3FW503 Bearing handles the heavy rolls and high speeds typical of production lines. Its metric sizing and interchangeable design simplify maintenance, reducing downtime for repairs.

Built for Heavy-Duty Use: 24032 CCK30/C3FW503 Bearing
24032 CCK30/C3FW503 Bearing excels in construction machinery like cranes and excavators, thanks to its high static radial load capacity (269771 lbf). The open seal design allows for easy relubrication, extending service life.

For wind turbines, 24032 CCK30/C3FW503 Bearing’s temperature range (-30° to 200°C) ensures reliability in varying climates. The spherical rollers adapt to shaft deflections, reducing wear and tear over time.
