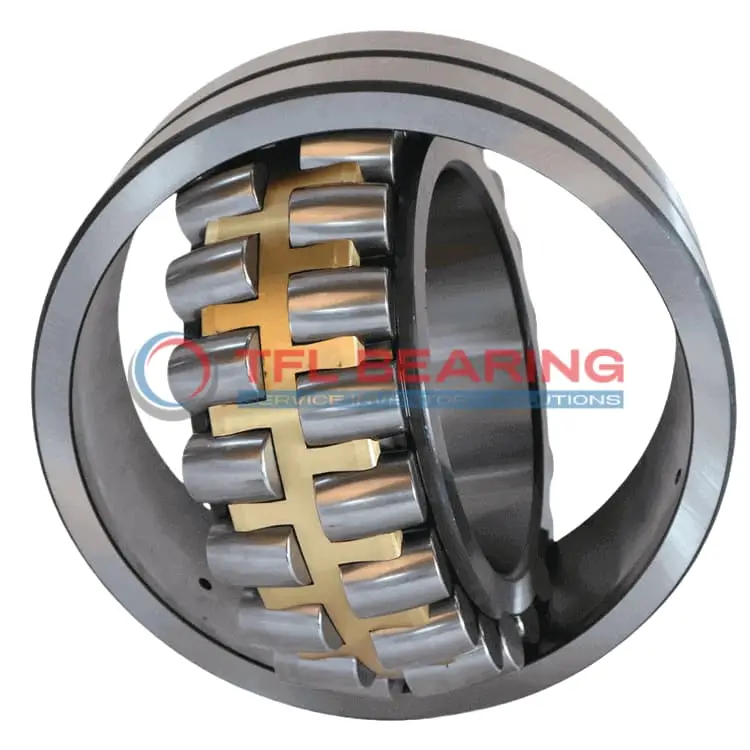

231/500 CA/W33 VE294 Double Row Spherical Roller Bearing

231/500 CA/W33 VE294 Double Row Spherical Roller Bearing

The 231/500 CA/W33 VE294 is a double-row spherical roller bearing with a 500mm bore and 830mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1,806,789 lbf and operates smoothly at speeds up to 700 RPM.

Its brass cage and open design ensure durability, while the lubrication groove (22.3mm wide) simplifies maintenance. The bearing performs reliably in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 575kg, it’s designed for robust performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 231/500 CA/W33 VE294
  • Brand TFL
  • Interchangeable SKF
  • Size 500 x 830 x 264 mm
  • Bore Dia 500 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 830 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 264 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 605 mm
  • Shoulder/Recess Dia Of Outer Ring 726 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1806789 lbf
  • Static Radial Load 2900035 lbf
  • Max Speed 700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 575 kg
  • Price （US$） US$11,763.18

Features

Performance Features of 231/500 CA/W33 VE294 Bearing

231/500 CA/W33 VE294 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,806,789 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller movement, reducing friction and extending operational life.
With a maximum speed of 700 rpm, it balances performance and durability in demanding conditions.

231/500 CA/W33 VE294 Bearing operates in temperatures from -30° to 200°C, ensuring reliability in varied environments.
Its lubrication groove and hole design facilitate consistent lubrication, enhancing efficiency.

The double-row spherical roller design accommodates misalignment, improving performance under heavy loads.
Weighing 575 kg, it is robust yet engineered for precise industrial use.

Application

Industrial Uses of 231/500 CA/W33 VE294 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment effortlessly. The brass cage ensures smooth operation even under intense radial loads.

In wind turbine applications, 231/500 CA/W33 VE294 Bearing supports the main shaft, withstanding variable wind forces while maintaining stability. Its large bore size makes it ideal for renewable energy equipment requiring robust performance.

For mining equipment, 231/500 CA/W33 VE294 Bearing excels in conveyor systems and excavators, where its high dynamic load capacity prolongs service life. The lubrication groove design simplifies maintenance in harsh environments.

Key Fields for 231/500 CA/W33 VE294 Bearing
You’ll find this bearing in paper mill machinery, where its heat resistance up to 200°C ensures reliable operation. The chrome steel construction resists wear in high-speed rolling processes.

In steel production plants, 231/500 CA/W33 VE294 Bearing handles the extreme loads of rolling mills. Its spherical rollers compensate for shaft deflection, reducing downtime in continuous operations.

What Makes 231/500 CA/W33 VE294 Bearing a Preferred Choice?
Its combination of radial and thrust load capacity makes it versatile for construction cranes. The W33 lubrication feature extends bearing life in dusty job site conditions.

The metric dimensions allow easy replacement in European industrial equipment. Users appreciate its consistent performance in both high and low-temperature environments.

Built for Heavy-Duty Use: 231/500 CA/W33 VE294 Bearing
This model shines in marine applications like ship propulsion systems, where saltwater resistance matters. The brass cage prevents corrosion while maintaining structural integrity.

For power generation plants, 231/500 CA/W33 VE294 Bearing supports turbine shafts with reliable rotation. Its CN radial clearance provides optimal performance under varying operational loads.
