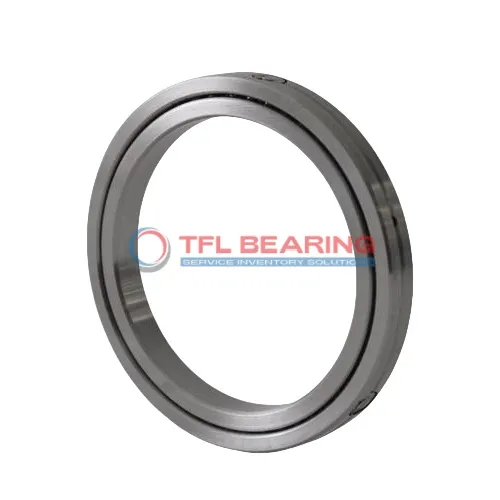

CRBS Crossed Roller Bearings CRBS 1408 V

CRBS Crossed Roller Bearings CRBS 1408 V

The CRBS 1408 V is a compact crossed roller bearing, measuring 140mm in bore diameter and 156mm in outer diameter, with a slim 8mm width. Made from sturdy steel, it handles combined loads up to 11.7 kN, suitable for precise applications.

Its single-row design offers high rigidity, while the open seal allows easy lubrication. The bearing operates smoothly in temperatures ranging from 0°C to 110°C.

Designed for press-fit mounting, it ensures a secure installation without the need for holes. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial machinery.

Weighing just 0.205kg, it’s lightweight yet durable, ideal for robotics or medical equipment where precision is key. Interchangeable with IKO bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBS 1408 V
  • Brand TFL
  • Interchangeable Brand IKO
  • Size 140 mm x 156 mm x 8 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 140 mm
  • Outer Dia 156 mm
  • Width 8 mm
  • R(min) 0.4 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 144 mm
  • Mounting Dimensions(Da) 151 mm
  • Basic Load Rating C 11.700 kN
  • Basic Load Rating Co 26.800 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.205 Kg

Features

How Does CRBS 1408 V Bearing Handle Combined Loads?

CRBS 1408 V Bearing is built with steel rings and rollers, offering strong resistance to combined loads.
Its basic load rating C reaches 11.700 kN, ensuring reliable performance in various applications.
The crossed roller design provides high precision and stability, even under heavy loads.
With a temperature range of 0 to 230°F, it performs well in diverse conditions.

Why Choose CRBS 1408 V Bearing for Precision Tasks?

CRBS 1408 V Bearing features a single-row crossed roller design, ideal for high-precision applications.
The steel construction ensures durability and consistent performance under combined loads.
Its ABEC5 rating (available in ABEC7/9) guarantees tight tolerances for precise operations.
The press-fit shaft mounting simplifies installation, saving time and effort.

Engineered for Reliability: CRBS 1408 V Bearing

CRBS 1408 V Bearing’s steel rollers and rings provide excellent load-bearing capacity.
The open design allows for easy lubrication, ensuring smooth operation over time.
With a basic load rating Co of 26.800 kN, it handles heavy loads reliably.
Its compact width of 8 mm makes it suitable for space-constrained applications.

Steel vs Ceramic Bearings: Strengths of CRBS 1408 V Bearing

CRBS 1408 V Bearing uses high-quality steel for both rings and rollers, ensuring durability.
The steel construction offers a cost-effective solution without compromising performance.
Its crossed roller design provides superior stability compared to standard bearings.
The bearing operates efficiently within a wide temperature range of 0 to 230°F.

Application

Industrial Uses of CRBS 1408 V Bearing
CRBS 1408 V Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

What Makes CRBS 1408 V Bearing a Preferred Choice?
In robotics, CRBS 1408 V Bearing offers precise motion control for robotic arms, thanks to its combined load capacity. The steel construction ensures durability even in high-speed automation environments.

Built for Heavy-Duty Use: CRBS 1408 V Bearing
For conveyor systems, CRBS 1408 V Bearing handles heavy loads smoothly, with its press-fit mounting simplifying installation. The ABEC5 rating guarantees consistent performance in industrial settings.

Medical vs Industrial: Where CRBS 1408 V Bearing Excels
In medical imaging devices, CRBS 1408 V Bearing provides quiet operation, essential for sensitive equipment. Its steel rollers also make it suitable for industrial applications requiring high load capacity.

Perfect Fit for Automation: CRBS 1408 V Bearing
CRBS 1408 V Bearing works well in 3D printers, ensuring accurate linear motion with minimal friction. The compact 8mm width makes it ideal for space-constrained automated systems.
