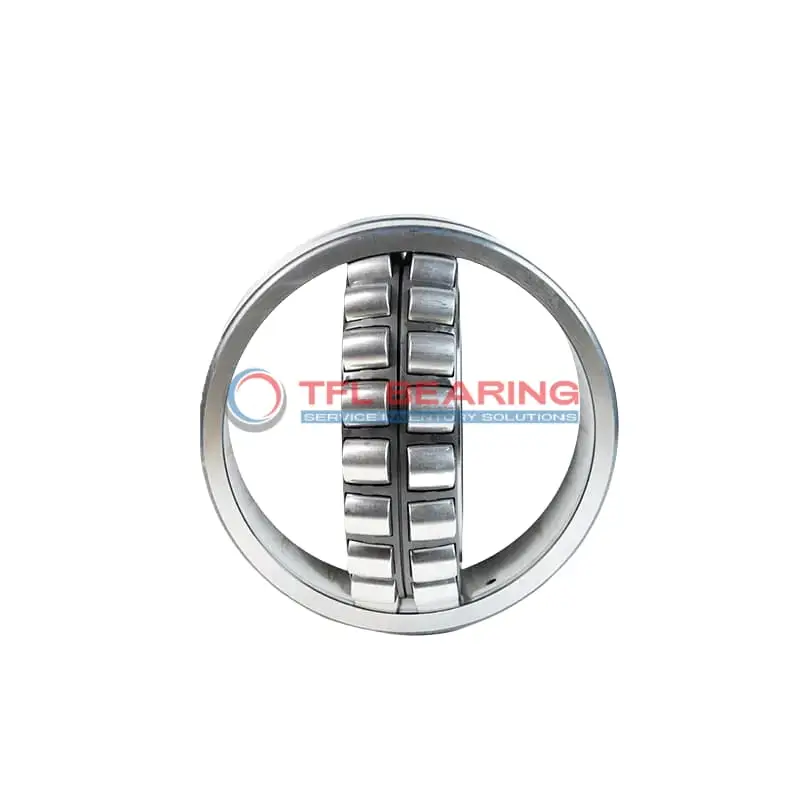

22317K CKJ W33 OD Double Row Spherical Roller Bearing

22317K CKJ W33 OD Double Row Spherical Roller Bearing

The 22317K CKJ W33 OD is a double-row spherical roller bearing with an 85mm bore and 180mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 129715 lbf and runs smoothly at speeds up to 3800 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 7.3kg, it’s a solid choice for demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22317K CKJ W33 OD
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 180 x 60 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 60 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 108 mm
  • Shoulder/Recess Dia Of Outer Ring 154 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 129715 lbf
  • Static Radial Load 139382 lbf
  • Max Speed 3800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.3 kg
  • Price （US$） 75.96

Features

Performance Features of 22317K CKJ W33 OD Bearing

22317K CKJ W33 OD Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 129715 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

With a maximum speed of 3800 rpm, 22317K CKJ W33 OD Bearing balances high performance and efficiency.
The lubrication groove and holes ensure smooth operation, reducing maintenance needs.

22317K CKJ W33 OD Bearing operates in temperatures from -30° to 200 °C, suitable for various environments.
Its robust construction and materials make it a dependable choice for industrial applications.

Application

Industrial Uses of 22317K CKJ W33 OD Bearing
22317K CKJ W33 OD Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The tapered bore ensures a secure fit, reducing slippage during high-load operations.

Where Is 22317K CKJ W33 OD Bearing Used?
You’ll often find 22317K CKJ W33 OD Bearing in mining equipment, where its robust construction withstands harsh conditions. The lubrication groove and holes make maintenance straightforward, even in dusty environments.

Built for Heavy-Duty Use: 22317K CKJ W33 OD Bearing
22317K CKJ W33 OD Bearing excels in paper mills and steel plants, thanks to its high dynamic load capacity. The chrome steel rollers and cage provide durability, even at elevated temperatures.

Automotive vs Aerospace: Applications of 22317K CKJ W33 OD Bearing
In automotive applications, 22317K CKJ W33 OD Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems requiring precision. The metric sizing ensures compatibility across industries.

Practical Applications of 22317K CKJ W33 OD Bearing
22317K CKJ W33 OD Bearing is ideal for wind turbines, where its spherical rollers accommodate misalignment. The open design allows for easy relubrication, extending service life in remote installations.
