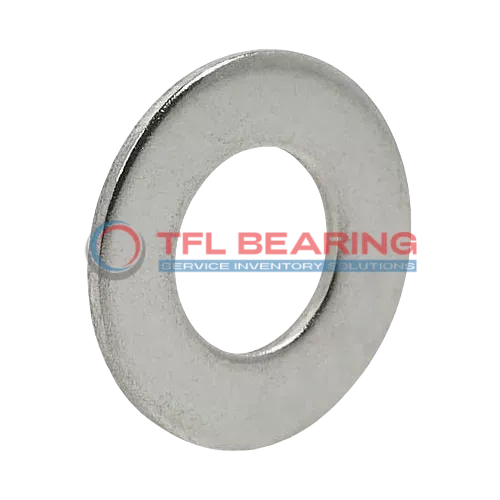

Needle Roller Thrust Bearing Washers AS120155

Needle Roller Thrust Bearing Washers AS120155

The AS120155 needle roller thrust bearing washers feature a 120mm bore and 155mm outer diameter, crafted from resilient spring steel. With a slim 1mm width, they fit snugly in compact assemblies.
These washers handle moderate thrust loads and operate smoothly between -30°C and 110°C. Their spring steel construction offers good durability without adding bulk.
Compatible with INA bearings, they serve as reliable replacements in tight spaces. Ideal for gear mechanisms or automotive applications where thin washers are needed.
Weighing just 59g, they’re lightweight yet sturdy. RoHS compliant for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AS120155
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 120 mm
  • Bore Dia Tolerance 0.072mm to 0.422mm
  • Outer Dia 155 mm
  • Outer Dia Tolerance -0.715mm to -0.085mm
  • Width 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 59 g

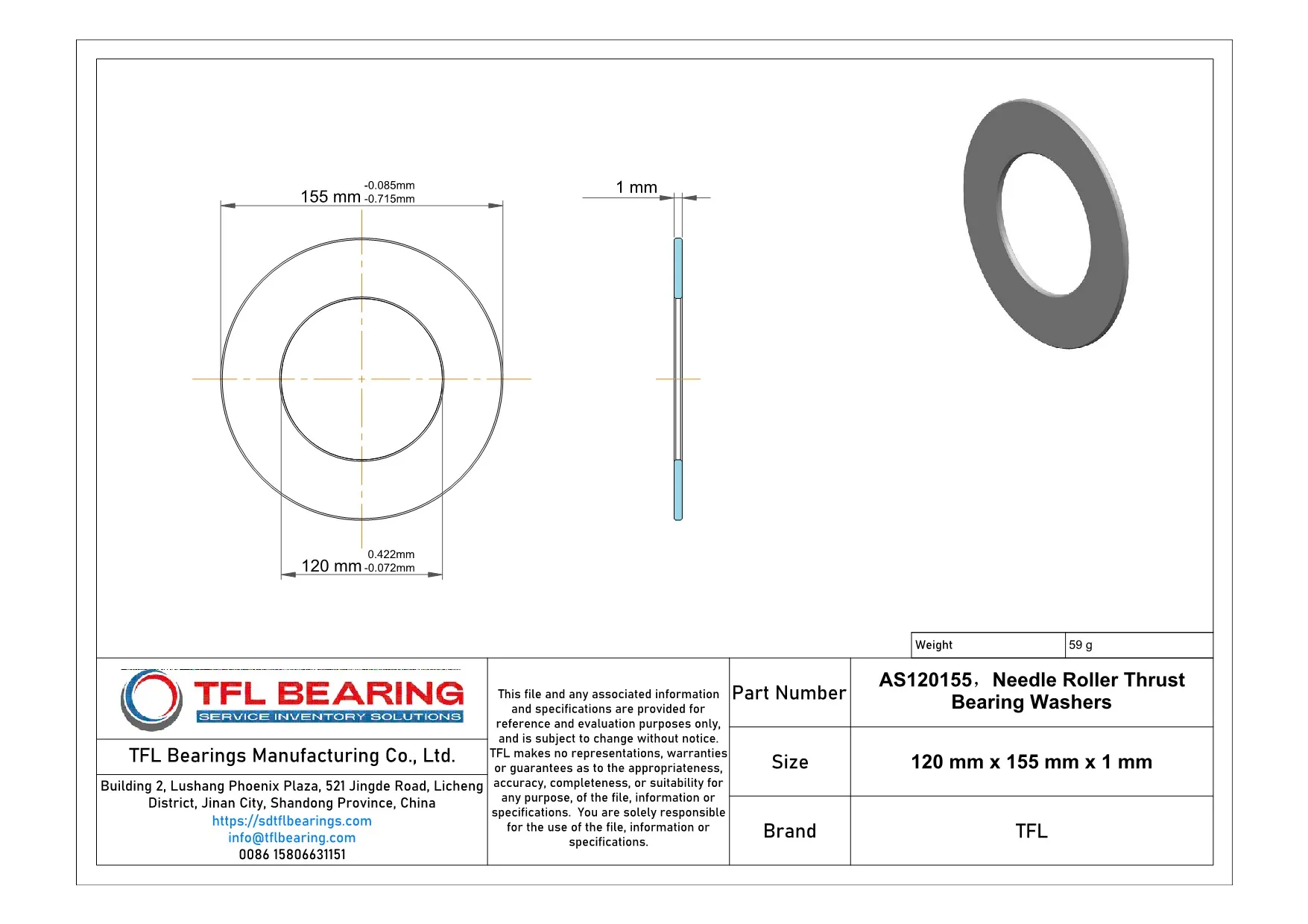

Needle Roller Thrust Bearing Washers AS120155 dimension drawing
Download DWG Download PDF

Features

Why Choose AS120155 Bearing for Precision Tasks?
AS120155 Bearing is crafted from spring steel, offering excellent durability for precise applications.
Its needle roller design ensures smooth operation under high thrust loads.
The narrow width of 1 mm makes it suitable for compact spaces without compromising performance.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Application

Industrial Uses of AS120155 Bearing
AS120155 Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high axial loads. The spring steel material ensures durability even in demanding environments.
In automotive applications, AS120155 Bearing fits well in clutch assemblies and transmission systems. Its precise dimensions make it a reliable choice for maintaining smooth operation under pressure.
For automation equipment, AS120155 Bearing’s thin profile allows it to fit into compact spaces like robotic joints. The metric sizing ensures compatibility with various European machinery standards.
Medical devices benefit from AS120155 Bearing’s consistent performance in imaging equipment. Its resistance to wear makes it suitable for high-precision applications requiring long-term reliability.
In household appliances, AS120155 Bearing can be found in washing machine drums. Its lightweight design and durability contribute to quieter and more efficient operation.
