TS (Single Row Tapered Roller Bearings) (Imperial) 398-394CS

TS (Single Row Tapered Roller Bearings) (Imperial) 398-394CS

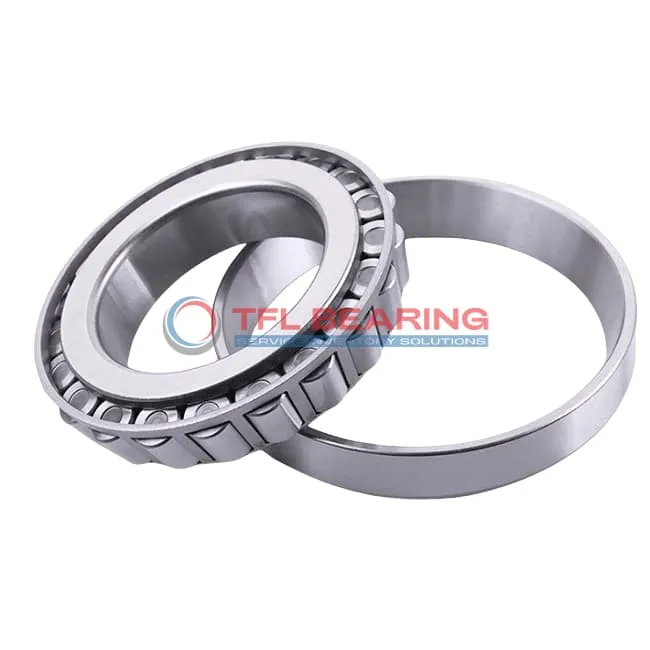

The 398-394CS is a single-row tapered roller bearing with a 2-inch bore and 4.468-inch outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22200 lbf radially and 3970 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 398-394CS
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 4.468" x 0.8661"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.468"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.866"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7411"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8661"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 2.4"
  • Cone Backface Backing Diameter 2.44"
  • Cup Frontface Backing Diameter 4.18"
  • Cup Backface Backing Diameter 4.02"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.05"
  • Effective Center Location -0.03"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 398
  • Cup Part Number 394CS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 395
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22200 lbf
  • Static Radial Load 28100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5760 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3970 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.5 lb

Features

How Is 398-394CS Bearing Engineered for Reliability?

398-394CS Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 22,200 lbf, making it suitable for demanding industrial applications.

The tapered roller design distributes loads evenly, reducing stress and extending service life.
With a standard radial clearance, it offers reliable performance across various operating conditions.

398-394CS Bearing operates within a temperature range of -30° to 110°C, adapting to diverse environments.
Its steel cage maintains roller alignment, ensuring smooth operation and reduced wear over time.

Application

Industrial Uses of 398-394CS Bearing
The 398-394CS Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 398-394CS Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyors, 398-394CS Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds stability during continuous operation.

What Makes 398-394CS Bearing a Preferred Choice?
398-394CS Bearing is often chosen for agricultural machinery due to its ability to withstand harsh conditions like dust and moisture. The standard radial clearance offers flexibility in various setups.

In mining equipment, 398-394CS Bearing’s robust design ensures smooth operation even under extreme loads. Its ABEC-1 rating balances precision and cost-effectiveness for industrial use.

Built for Heavy-Duty Use: 398-394CS Bearing
398-394CS Bearing excels in forestry machinery, where its tapered rollers manage uneven loads effortlessly. The chrome steel rollers resist wear, reducing maintenance needs.

For material handling systems, 398-394CS Bearing’s compatibility with Timken models simplifies replacements. Its temperature range suits both indoor and outdoor applications.

Automotive vs Aerospace: Applications of 398-394CS Bearing
In automotive drivetrains, 398-394CS Bearing handles high torque and axial forces reliably. The inch measurements align with many truck and off-road vehicle specifications.

For industrial gearboxes, 398-394CS Bearing’s dynamic load capacity ensures longevity. Its steel cage prevents roller misalignment during high-speed rotations.
