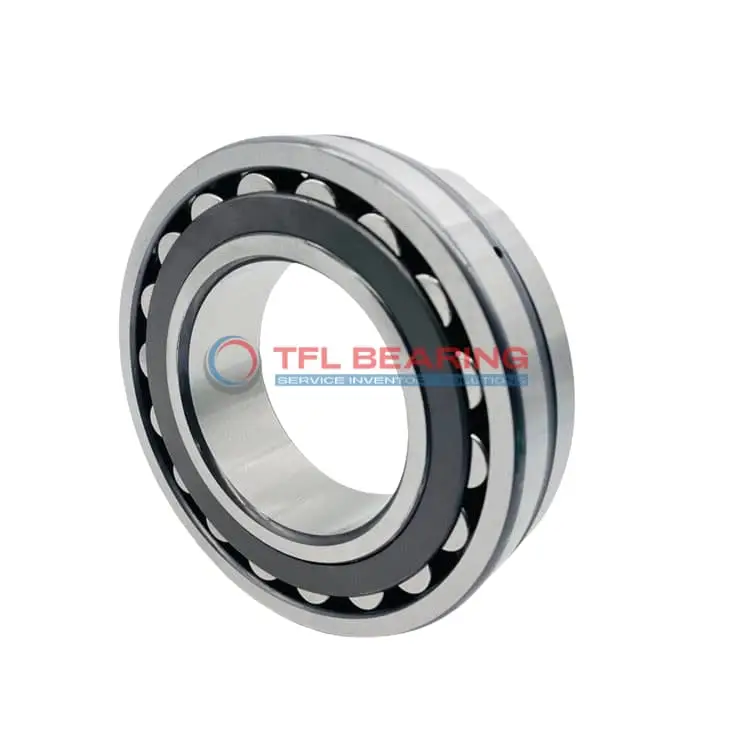

22316CK Double Row Spherical Roller Bearing

22316CK Double Row Spherical Roller Bearing

The 22316CK is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 116001 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like industrial gearboxes or heavy machinery where combined loads are common.

Weighing 6.25kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316CK
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance +0.03mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 89.1

Features

Performance Features of 22316CK Bearing

22316CK Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 4000 rpm, it delivers reliable performance in various industrial settings.

22316CK Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

The tapered bore design simplifies installation and ensures a secure fit.
Lubrication grooves and holes facilitate proper lubrication, extending the bearing’s service life.

Application

Industrial Uses of 22316CK Bearing
The 22316CK Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
Its spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Where Is 22316CK Bearing Used?
You’ll often find 22316CK Bearing in mining equipment, where its high dynamic load capacity ensures reliable performance under extreme conditions.
The tapered bore design also simplifies installation in large shafts, saving time during maintenance.

Built for Heavy-Duty Use: 22316CK Bearing
22316CK Bearing excels in paper mill machinery, where its chrome steel rollers withstand constant friction and high temperatures.
The open seal design allows for easy relubrication, extending the bearing’s service life in dusty environments.

Automotive vs Aerospace: Applications of 22316CK Bearing
In automotive applications, 22316CK Bearing supports heavy axles and transmissions, thanks to its robust construction.
While not typically used in aerospace, its high-speed capability makes it suitable for large industrial fans and turbines.

Key Fields for 22316CK Bearing
22316CK Bearing is a go-to choice for wind turbine gearboxes, where its combined load handling and durability are crucial.
The metric sizing ensures compatibility with European-designed machinery, simplifying replacements.
