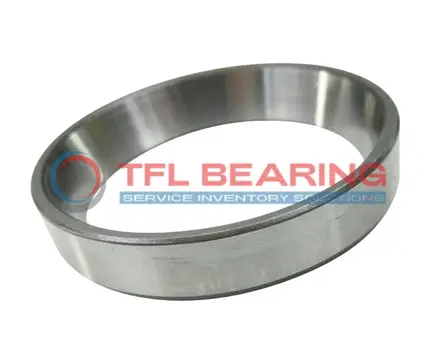

563X Single Cups (Imperial)

563X Single Cups (Imperial)

The 563X is a single cup tapered roller bearing with a 5″ outer diameter and 1.125″ width, made from sturdy chrome steel. It fits well with Timken models, making it a versatile choice for replacements.

Its standard cup design ensures easy installation, while the chrome steel construction offers reliable performance in temperatures from -30°C to 110°C. The ABEC-1 rating provides good precision for general applications.

This cup is part of the 565 series and works with various bearing part numbers, offering flexibility. Ideal for industrial machinery or automotive uses where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and durable option for many mechanical setups. The compact size (4.49″ x 5″ x 1.125″) makes it suitable for space-conscious designs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 563X
  • Brand TFL
  • Interchangeable Timken
  • Size 4.49" x 5" x 1.125"
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.03"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.49"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 565-563X , 566-563X , 567-563X , 567A-563X , 567X-563X , 568-563X , 569-563X , 570-563X , 570X-563X
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Core Advantages of 563X Bearing

563X Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its standard cup design ensures compatibility with multiple part numbers, making it versatile for different setups.

The tapered roller bearing type provides efficient load distribution, enhancing performance under stress.
With a temperature range of -30° to 110°C, 563X Bearing performs reliably in diverse environmental conditions.

ABEC-1 rating ensures consistent precision, suitable for general industrial use.
Compliant with RoHS and REACH standards, it meets environmental and safety requirements.

Application

Industrial Uses of 563X Bearing
563X Bearing is commonly used in heavy machinery like construction equipment, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is 563X Bearing Used?
You’ll often find 563X Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its inch sizing makes it a good fit for older equipment still using imperial measurements.

Built for Heavy-Duty Use: 563X Bearing
563X Bearing works well in mining applications, where its robust design can withstand high loads and harsh environments. The standard cup type simplifies replacement and maintenance.

Automotive vs Aerospace: Applications of 563X Bearing
In automotive settings, 563X Bearing supports axle systems, while in aerospace, it’s used in auxiliary equipment. The temperature range ensures reliability in varying climates.

Practical Applications of 563X Bearing
563X Bearing is a solid choice for industrial fans, where its tapered rollers manage both radial and thrust loads. The ABEC-1 rating balances precision and cost-effectiveness for general machinery.
