Needle Roller Thrust Bearing Washers LS2035

Needle Roller Thrust Bearing Washers LS2035

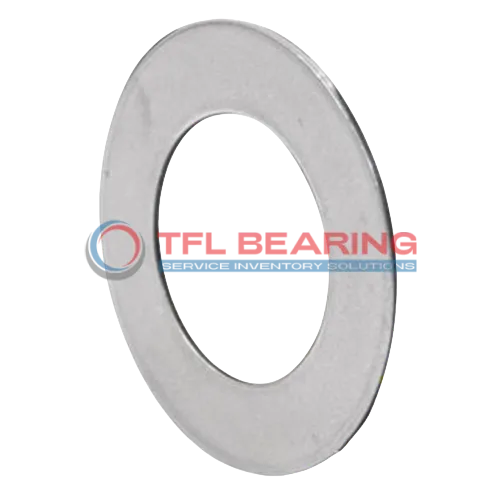

The LS2035 needle roller thrust bearing washers are slim units with a 20mm bore and 35mm outer diameter, crafted from spring steel for resilience. Their 2.75mm width makes them ideal for tight spaces where low-profile components are needed.
Designed to handle high thrust loads, these washers work smoothly in temperatures from -30°C to 110°C. The spring steel construction ensures durability even under continuous use.
These washers are interchangeable with INA models, offering a practical replacement option. They’re commonly used in gearboxes, automotive applications, or machinery requiring precise thrust management.
Weighing just 12g, they’re lightweight yet sturdy. Compliant with RoHS standards, they’re a safe choice for various industrial settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LS2035
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 20 mm
  • Bore Dia Tolerance 0.04mm to 0.25mm
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.440mm to -0.05mm
  • Width 2.75 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 12 g

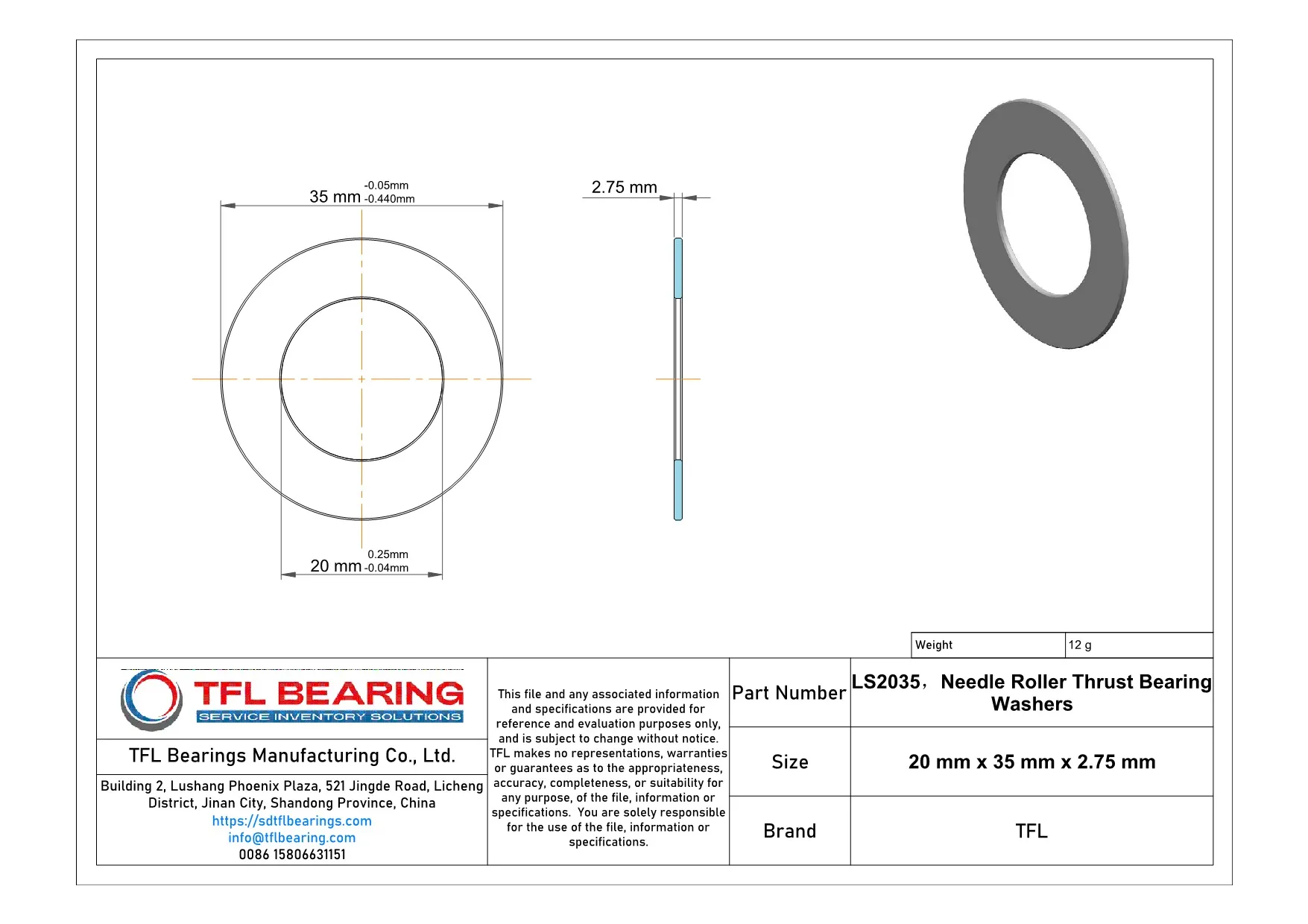

Needle Roller Thrust Bearing Washers LS2035 dimension drawing
Download DWG Download PDF

Features

Why Choose LS2035 Bearing for Precision Tasks?
LS2035 Bearing is crafted from high-quality spring steel, offering excellent durability for precision applications.
Its needle roller design ensures smooth operation even under high thrust loads.
The precise bore and outer diameter tolerances make LS2035 Bearing ideal for exacting mechanical setups.
With a temperature range of -30° to 110°C, it performs reliably in various environments.
LS2035 Bearing’s lightweight design at just 12 grams reduces overall system weight without compromising strength.
Its compatibility with INA models adds versatility for replacement or upgrade scenarios.

Application

Key Fields for LS2035 Bearing
LS2035 Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high axial loads. The spring steel construction ensures durability even in demanding environments.
In automotive applications, LS2035 Bearing fits well in compact spaces like clutch assemblies, providing reliable performance. Its metric sizing makes it a versatile choice for various vehicle models.
For automation systems, LS2035 Bearing supports precise movement in robotic arms and linear guides. The thin profile allows for easy integration without compromising strength.
In household appliances, LS2035 Bearing can be found in washing machines and dishwashers, where its smooth operation reduces noise. The lightweight design also helps in energy-efficient performance.
Medical devices benefit from LS2035 Bearing’s consistent performance in equipment like dental drills. The spring steel material ensures long-lasting use in high-frequency applications.
