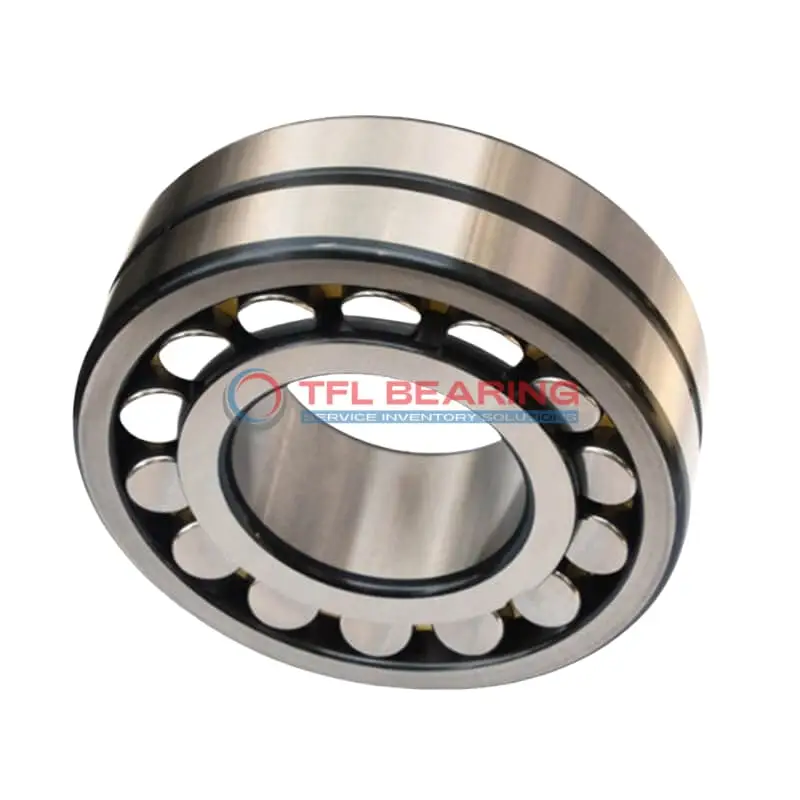

22316 CJ C3 W33 W64B Double Row Spherical Roller Bearing

The 22316 CJ C3 W33 W64B is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 116001 lbf and runs smoothly at speeds up to 4000 RPM.

Its spherical roller design adjusts to misalignment, while the steel cage ensures durability. The open construction allows easy lubrication through the 4.5mm holes, ideal for high-load applications.

This bearing suits heavy machinery like gearboxes or industrial fans, operating in temperatures from -30°C to 200°C. It’s interchangeable with SKF models, making replacements straightforward.

Weighing 6.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 22316 CJ C3 W33 W64B
Brand TFL
Interchangeable SKF
Size 80 x 170 x 58 mm
Bore Dia 80 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 170 mm
Outer Dia Tolerance -0.025mm to 0
Width 58 mm
Width Tolerance -0.06mm to 0
Shoulder Dia Of Inner Ring 98.3 mm
Shoulder/Recess Dia Of Outer Ring 143 mm
Width Of Lubrication Groove 8.3 mm
Diameter Of Lubrication Hole 4.5 mm
Chamfer Dimension min.2.1 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Cylindrical
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 116001 lbf
Static Radial Load 119149 lbf
Max Speed 4000 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance C3
RoHs Compliant
REACH Compliant
Weight 6.25 kg
Price （US$） 128.34

Features

Performance Features of 22316 CJ C3 W33 W64B Bearing

22316 CJ C3 W33 W64B Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, ensuring robust performance in heavy-duty applications.

The double-row spherical roller design allows for self-alignment, reducing stress and wear.
This makes 22316 CJ C3 W33 W64B Bearing suitable for applications with misalignment or shaft deflection.

With a maximum speed of 4,000 rpm, it balances efficiency and durability.
The steel cage maintains roller alignment, contributing to smooth operation and extended service life.

22316 CJ C3 W33 W64B Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its C3 radial clearance ensures optimal performance under varying thermal conditions.

Application

Industrial Uses of 22316 CJ C3 W33 W64B Bearing
22316 CJ C3 W33 W64B Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in demanding conditions.

What Makes 22316 CJ C3 W33 W64B Bearing a Preferred Choice?
In mining equipment, 22316 CJ C3 W33 W64B Bearing’s robust chrome steel construction withstands harsh environments, while the lubrication groove extends service life. Its C3 clearance allows for thermal expansion, making it ideal for high-temperature applications.

Built for Heavy-Duty Use: 22316 CJ C3 W33 W64B Bearing
For wind turbine gearboxes, 22316 CJ C3 W33 W64B Bearing offers reliable performance under fluctuating loads and speeds. The steel cage provides added durability, reducing maintenance needs in remote installations.

Automotive vs Aerospace: Applications of 22316 CJ C3 W33 W64B Bearing
In truck wheel hubs, 22316 CJ C3 W33 W64B Bearing supports heavy loads with its high static radial capacity. Meanwhile, its precision tolerances make it suitable for aerospace components requiring consistent performance under stress.

Key Fields for 22316 CJ C3 W33 W64B Bearing
22316 CJ C3 W33 W64B Bearing is a staple in paper mill machinery, where its W33 lubrication feature ensures smooth rolling under constant use. The wide temperature range also suits industrial ovens and dryers.
