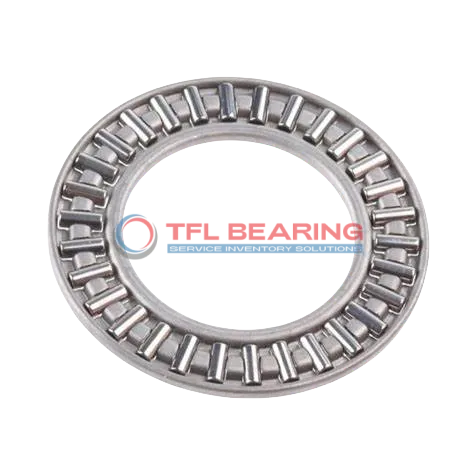

Needle Roller Thrust Bearings (Cages) AXK6085

Needle Roller Thrust Bearings (Cages) AXK6085

The AXK6085 is a needle roller thrust bearing with a 60mm bore and 85mm outer diameter, crafted from sturdy steel for reliable performance. It supports dynamic thrust loads up to 10012 lbf and operates smoothly at speeds up to 3900 RPM.

Its compact 3mm width makes it ideal for tight spaces, while the steel cage ensures durability under heavy loads. Regular lubrication is needed to maintain optimal performance.

This bearing works well in temperatures ranging from -30°C to 110°C, suitable for various industrial environments. It’s interchangeable with INA bearings, offering flexibility for replacements.

Perfect for applications like gearboxes or machinery with high axial loads, the AXK6085 is RoHS compliant for safe use. The included axial bearing washer (AS6085) ensures easy installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXK6085
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 60 mm
  • Bore Dia Tolerance 0.06mm to 0.250mm
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.520mm to -0.170mm
  • Width 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 10012 lbf
  • Static Thrust Load 52650 lbf
  • Max Speed 3900 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS6085
Needle Roller Thrust Bearings (Cages) AXK6085 dimension drawing
Download DWG Download PDF

Features

How Does AXK6085 Bearing Handle Heavy Loads?
AXK6085 Bearing is built with steel cages and needles, offering strong resistance to high thrust loads.
Its dynamic thrust load capacity reaches 10012 lbf, making it suitable for demanding applications.
The steel construction ensures durability, even under continuous heavy use.
With a maximum speed of 3900 rpm, it delivers reliable performance in various conditions.
AXK6085 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Essential Roles of AXK6085 Bearing
AXK6085 Bearing is commonly used in industrial gearboxes, where its high thrust load capacity handles heavy axial forces efficiently. The steel cage ensures durability even in demanding conditions.
In automotive applications, AXK6085 Bearing fits well in clutch assemblies and transmission systems, providing reliable performance under constant pressure. Its metric sizing makes it versatile for various vehicle designs.
For automation equipment, AXK6085 Bearing supports precise movements in robotic arms and linear guides. The needle roller design offers smooth operation, essential for repetitive tasks.
Medical devices like surgical tools benefit from AXK6085 Bearing’s consistent performance and compact design. The steel construction ensures hygiene and long-term reliability in sterile environments.
Household appliances such as washing machines use AXK6085 Bearing for its quiet operation and resistance to wear. Its low-maintenance design makes it ideal for everyday use.
