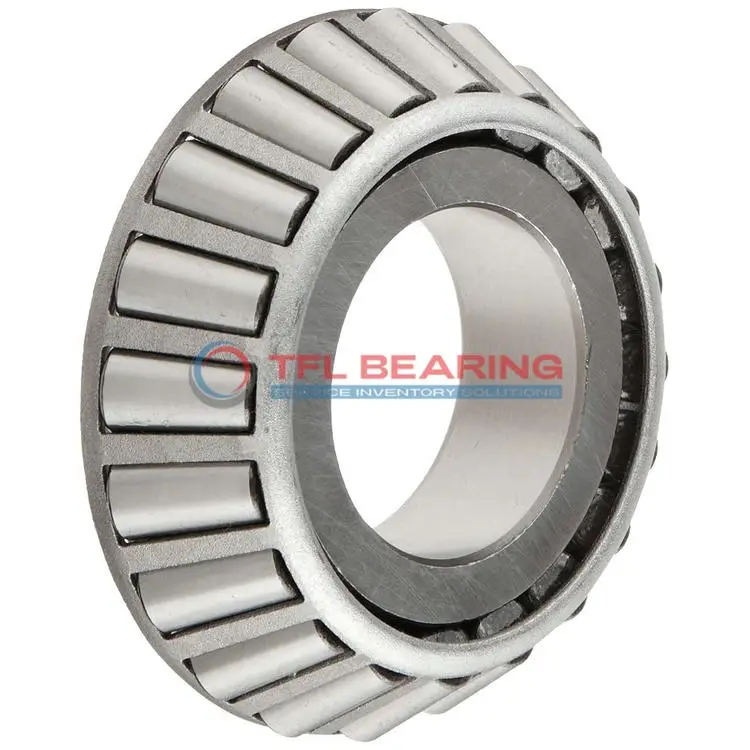

843 Single Cones (Imperial)

843 Single Cones (Imperial)

The 843 single cones are tapered roller bearings with a 3-inch bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 109,000 lbf and operate smoothly in temperatures from -30°C to 110°C.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The bearings come with standard radial clearance, but options like C3, C4, or C5 are available for specific needs.

Interchangeable with Timken bearings, these cones are a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

Compliant with RoHS and REACH standards, they offer a balance of strength and longevity. The ABEC-1 rating ensures consistent performance for most industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 843
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 843-832 , 843-832V , 843-833W
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 835
  • Bore Dia 3"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 2.219"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 3.5"
  • Cone Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.73"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 109000 lbf
  • Static Radial Load 117000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 28300 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 190000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 14500 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 49200 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does 843 Bearing Handle Combined Loads?

843 Bearing is designed with chrome steel rings, providing strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 109,000 lbf, ensuring reliable performance in demanding applications.

The tapered roller design of 843 Bearing ensures smooth operation under combined loads.
With a maximum temperature range of -30° to 110°C, it performs well in various environments.

843 Bearing’s steel cage keeps the rollers aligned, reducing wear and extending service life.
The standard radial clearance options offer flexibility for different operational needs.

Application

Industrial Uses of 843 Single Cones
843 Single Cones are commonly used in heavy machinery like construction equipment, where their tapered roller design handles combined loads effectively. The inch sizing makes them a straightforward fit for North American industrial applications.

In automotive settings, 843 Single Cones work well in wheel hubs and differential systems, thanks to their robust chrome steel construction. Their open design allows for easy lubrication, extending service life in high-stress conditions.

For agricultural machinery, 843 Single Cones provide reliable performance in tractors and harvesters, where durability is key. The standard radial clearance options ensure compatibility with various operational demands.

Where Is 843 Single Cones Used?
You’ll often find 843 Single Cones in conveyor systems, where their tapered rollers manage both radial and thrust loads smoothly. Their steel cage adds stability, even in continuous operation.

In mining equipment, 843 Single Cones excel due to their high dynamic load capacity. The ABEC-1 rating ensures consistent performance in rugged environments.

Built for Heavy-Duty Use: 843 Single Cones
843 Single Cones are ideal for gearboxes, where their single-row construction simplifies maintenance. The chrome steel rings resist wear, even under frequent load changes.

For railway applications, 843 Single Cones support axle loads reliably. Their temperature range suits both cold and moderate climates.

Automotive vs Aerospace: Applications of 843 Single Cones
In automotive drivetrains, 843 Single Cones handle high torque with ease. Their inch measurements align with many US and UK vehicle standards.

While not typically used in aerospace, 843 Single Cones are a go-to for ground support equipment. Their static radial load capacity ensures stability in heavy lifting.
