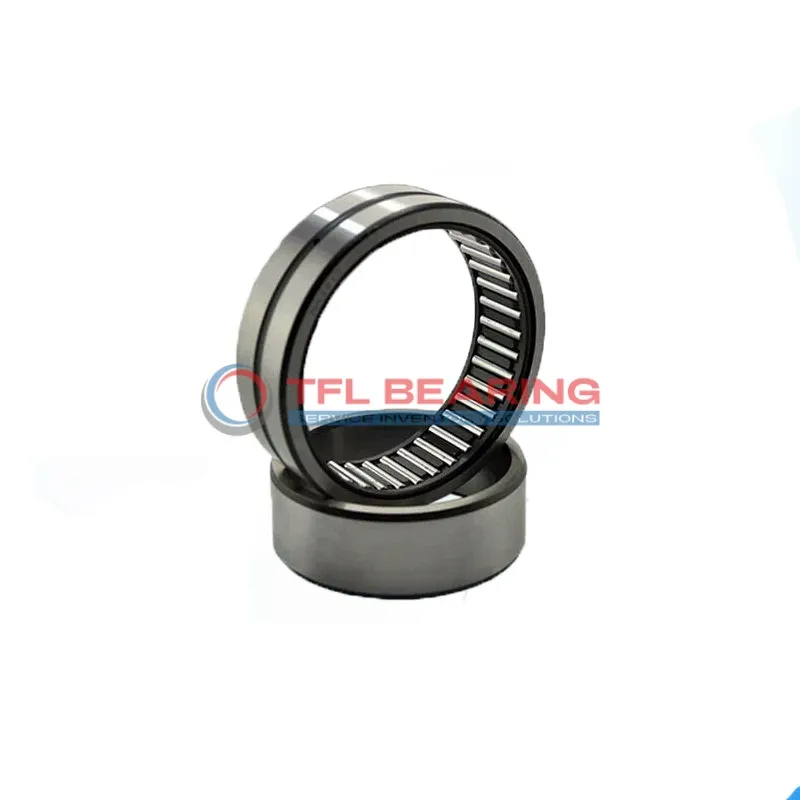

Heavy Duty Needle Roller Bearings (Machined) NAO6X17X10-TV-IS1-XL

Heavy Duty Needle Roller Bearings (Machined) NAO6X17X10-TV-IS1-XL

The NAO6X17X10-TV-IS1-XL is a heavy-duty needle roller bearing with a 6mm bore and 17mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1192 lbf and spins at speeds up to 29,500 RPM, making it suitable for high-speed applications.
Its open design and PA66 cage ensure smooth operation, while the press-fit shaft mount provides a secure installation. The bearing requires regular lubrication to maintain optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for use in compact machinery or automotive components where space is limited and radial loads are common.
Weighing just 14g, it’s lightweight yet durable. Compliant with RoHS standards, it operates efficiently in temperatures from -20°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NAO6X17X10-TV-IS1-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring Yes
  • Series With Inner Ring
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material PA66
  • Roller Material Steel
  • Dynamic Radial Load 1192 lbf
  • Static Radial Load 1238 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 29500 rpm
  • Weight 14 g

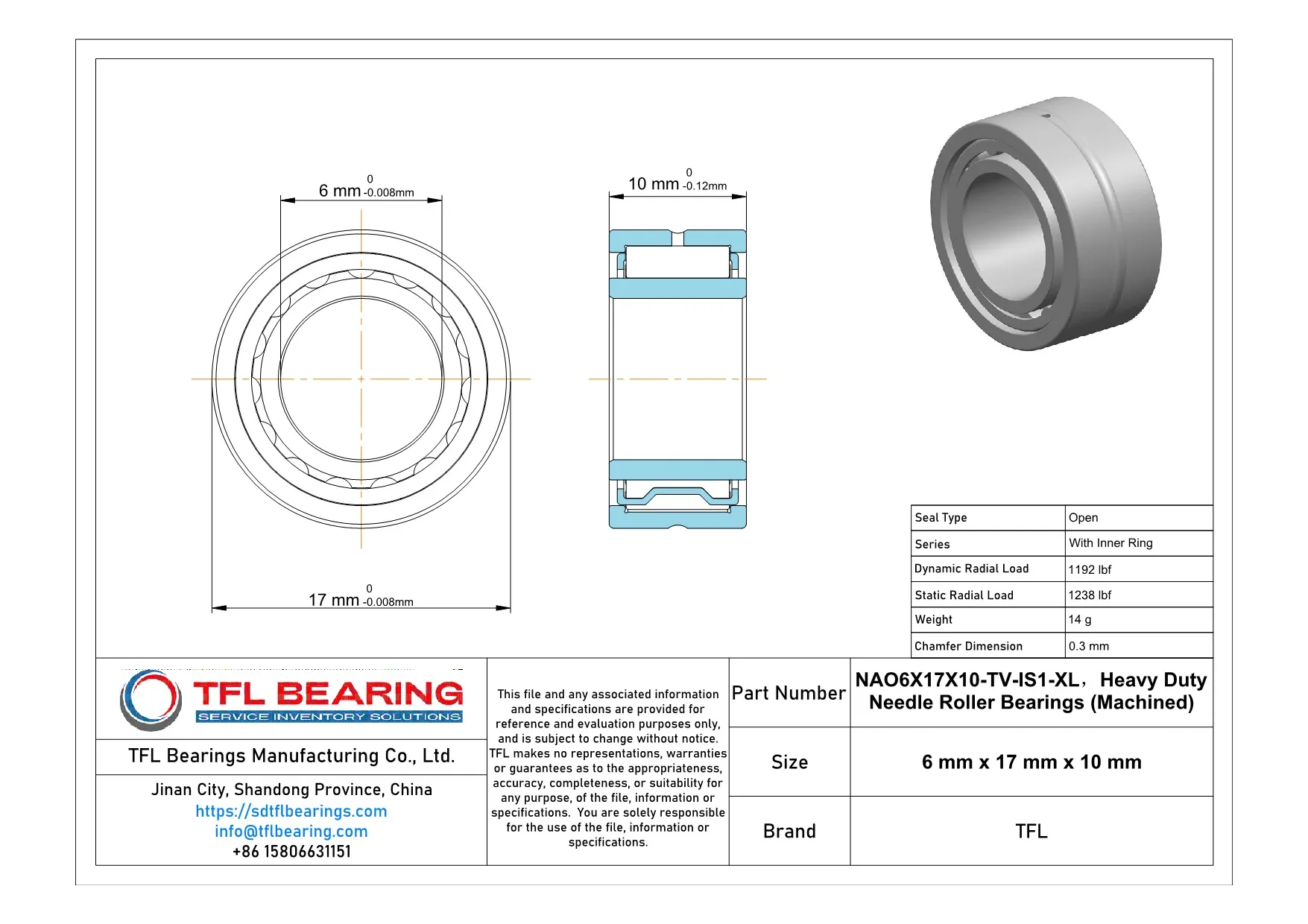

Heavy Duty Needle Roller Bearings (Machined) NAO6X17X10-TV-IS1-XL dimension drawing
Download DWG Download PDF

Features

How Does NAO6X17X10-TV-IS1-XL Bearing Handle Heavy Loads?
NAO6X17X10-TV-IS1-XL Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 1192 lbf, ensuring reliable performance in demanding applications.
The PA66 cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 29,500 rpm, it balances durability and efficiency.

Application

Key Fields for NAO6X17X10-TV-IS1-XL Bearing
NAO6X17X10-TV-IS1-XL Bearing is commonly used in industrial machinery, especially where space is limited but high radial load capacity is needed, like in compact gearboxes. Its steel construction ensures durability even in demanding environments.
In automotive applications, NAO6X17X10-TV-IS1-XL Bearing fits well in components such as transmission systems and steering mechanisms. The press-fit design makes installation straightforward, saving time during assembly.
For automation equipment, NAO6X17X10-TV-IS1-XL Bearing provides reliable performance in robotic arms and linear guides. The high-speed capability up to 29,500 rpm ensures smooth operation in fast-moving parts.
In household appliances, NAO6X17X10-TV-IS1-XL Bearing can be found in small electric motors, like those in power tools or kitchen gadgets. Its lightweight design at just 14g helps maintain efficiency without adding bulk.
