TS (Single Row Tapered Roller Bearings) (Imperial) 2561X-2523

TS (Single Row Tapered Roller Bearings) (Imperial) 2561X-2523

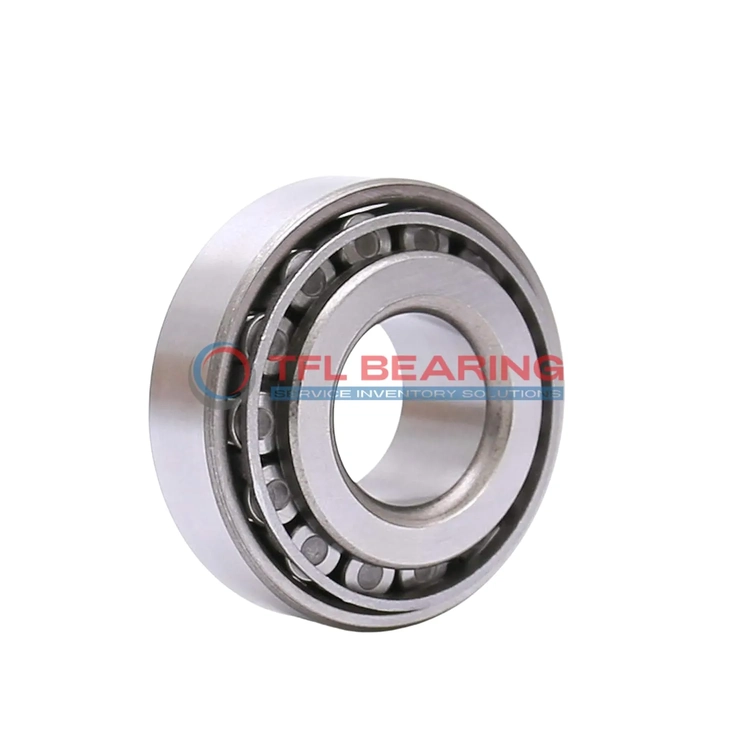

The 2561X-2523 is a single-row tapered roller bearing with a 1.1895″ bore and 2.75″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 18800 lbf radially and 2280 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing just 1 lb, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2561X-2523
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1895" x 2.75" x 0.9375"
  • Bore Dia 1.1895"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.973"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.44"
  • Cone Backface Backing Diameter 1.57"
  • Cup Frontface Backing Diameter 2.56"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.34"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2561X
  • Cup Part Number 2523
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 18800 lbf
  • Static Radial Load 21200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4880 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

Performance Features of 2561X-2523 Bearing

2561X-2523 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 18,800 lbf, ensuring reliable performance in various applications.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it operates effectively in diverse conditions.

2561X-2523 Bearing’s standard radial clearance allows for smooth operation and easy installation.
Its ABEC-1 rating ensures consistent precision for industrial use.

Application

Industrial Uses of 2561X-2523 Bearing
2561X-2523 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively.
The chrome steel construction ensures durability even in demanding environments, making it a reliable choice for long-term use.

Where Is 2561X-2523 Bearing Used?
You’ll often find 2561X-2523 Bearing in automotive applications like wheel hubs and differential systems, thanks to its ability to manage both radial and thrust loads.
Its inch sizing makes it compatible with many North American vehicle models, simplifying replacements and maintenance.

Built for Heavy-Duty Use: 2561X-2523 Bearing
2561X-2523 Bearing excels in industrial conveyor systems, where its robust design supports continuous operation under significant stress.
The open seal type allows for easy lubrication, ensuring smooth performance over extended periods.

Automotive vs Aerospace: Applications of 2561X-2523 Bearing
In automotive settings, 2561X-2523 Bearing is ideal for transmissions and axles, offering reliable performance under varying loads.
While not typically used in aerospace, its precision and strength make it suitable for ground support equipment and other heavy-duty applications.

Perfect Fit for Automation: 2561X-2523 Bearing
2561X-2523 Bearing works well in automated production lines, where its tapered rollers provide stability for moving parts.
The steel cage enhances its longevity, reducing downtime in high-use industrial environments.
