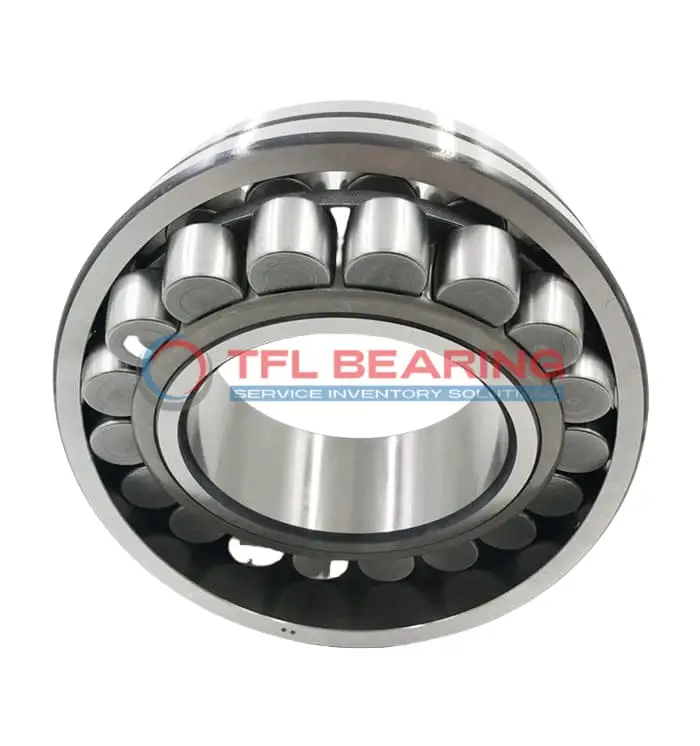

22313E C1 W33 Double Row Spherical Roller Bearing

22313E C1 W33 Double Row Spherical Roller Bearing

The 22313E C1 W33 is a double-row spherical roller bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 80257 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 3.5kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22313E C1 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 140 x 48 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 48 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 81.6 mm
  • Shoulder/Recess Dia Of Outer Ring 118 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 80257 lbf
  • Static Radial Load 80931 lbf
  • Max Speed 5000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C1
  • RoHs Compliant
  • REACH Compliant
  • Weight 3.5 kg
  • Price （US$） 61.02

Features

Performance Features of 22313E C1 W33 Bearing

22313E C1 W33 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 80257 lbf, making it suitable for heavy-duty industrial applications.

The double-row spherical roller design allows for slight misalignment, ensuring smooth operation.
With a maximum speed of 5000 rpm, it maintains efficiency without compromising durability.

22313E C1 W33 Bearing operates in temperatures from -30° to 200°C, adapting to various working conditions.
The C1 radial clearance provides optimal performance for precision applications.

Steel cage construction keeps the rollers aligned, reducing friction and extending service life.
Lubrication grooves and holes ensure consistent performance, even in demanding environments.

Application

Industrial Uses of 22313E C1 W33 Bearing
22313E C1 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The spherical roller construction also compensates for misalignment, ensuring smooth operation in demanding environments.

Where Is 22313E C1 W33 Bearing Used?
In mining equipment, 22313E C1 W33 Bearing supports rotating shafts in conveyors and separators, thanks to its robust chrome steel construction. The lubrication groove and holes further enhance its performance in dusty or high-temperature conditions.

Built for Heavy-Duty Use: 22313E C1 W33 Bearing
22313E C1 W33 Bearing excels in paper mill machinery, where its C1 radial clearance provides stability under fluctuating loads. The steel cage adds durability, making it a reliable choice for continuous operation.

Automotive vs Aerospace: Applications of 22313E C1 W33 Bearing
In automotive applications, 22313E C1 W33 Bearing is found in gearboxes and differentials, handling combined loads efficiently. For aerospace, its high-speed capability and temperature resistance make it suitable for auxiliary power units.

Perfect Fit for Automation: 22313E C1 W33 Bearing
22313E C1 W33 Bearing is ideal for robotic arms in manufacturing lines, where precision and load capacity are critical. The open seal design allows for easy relubrication, extending service life in high-cycle applications.
