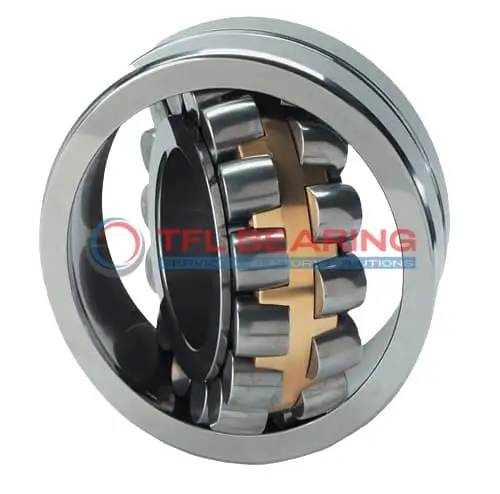

23192 CA/C08W33VE554E Double Row Spherical Roller Bearing

23192 CA/C08W33VE554E Double Row Spherical Roller Bearing

The 23192 CA/C08W33VE554E is a double-row spherical roller bearing with a large 460mm bore and 760mm outer diameter, built from tough chrome steel. It handles combined loads up to 1519708 lbf and runs smoothly at speeds up to 800 RPM.

Its brass cage and open design ensure durability, while the lubrication groove and holes make maintenance straightforward. The bearing operates well in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a reliable option for replacements. Suitable for heavy-duty applications like mining equipment or large industrial machinery where high radial loads are common.

Weighing 430kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23192 CA/C08W33VE554E
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 760 x 240 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 760 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 240 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 555 mm
  • Shoulder/Recess Dia Of Outer Ring 666 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1519708 lbf
  • Static Radial Load 2427937 lbf
  • Max Speed 800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 430 kg
  • Price （US$） US$11,748.88

Features

How Is 23192 CA/C08W33VE554E Bearing Engineered for Reliability?

23192 CA/C08W33VE554E Bearing features a double-row spherical roller design, ideal for handling combined loads with high precision.
Its chrome steel rings and rollers provide excellent resistance to wear, ensuring long-term durability.

The brass cage maintains proper roller alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 1,519,708 lbf, it excels in heavy-duty applications.

23192 CA/C08W33VE554E Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its open design allows for easy lubrication, ensuring smooth operation even at high speeds up to 800 rpm.

Application

Industrial Uses of 23192 CA/C08W33VE554E Bearing
23192 CA/C08W33VE554E Bearing is commonly used in heavy machinery like crushers and large gearboxes, where its double-row design handles combined loads effectively. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23192 CA/C08W33VE554E Bearing supports the main shaft, thanks to its high dynamic radial load capacity. Its spherical roller design accommodates misalignment, making it ideal for renewable energy applications.

For mining equipment, 23192 CA/C08W33VE554E Bearing’s chrome steel construction withstands harsh conditions, such as dust and heavy vibrations. The lubrication groove simplifies maintenance, extending service life in demanding environments.

Where Is 23192 CA/C08W33VE554E Bearing Used?
23192 CA/C08W33VE554E Bearing is found in paper mills, where its high static radial load capacity supports large rollers. The P5 radial run-out ensures precision in paper production.

In steel plants, 23192 CA/C08W33VE554E Bearing handles extreme temperatures and heavy loads in rolling mills. Its open design allows for easy lubrication, reducing downtime.

Built for Heavy-Duty Use: 23192 CA/C08W33VE554E Bearing
23192 CA/C08W33VE554E Bearing excels in construction equipment like cranes, where its 430 kg weight and robust design provide stability. The cylindrical bore ensures a secure fit on large shafts.

For marine applications, 23192 CA/C08W33VE554E Bearing’s corrosion-resistant materials suit propeller shafts. Its temperature range from -30° to 200°C makes it reliable in varying climates.

Automotive vs Aerospace: Applications of 23192 CA/C08W33VE554E Bearing
In automotive testing rigs, 23192 CA/C08W33VE554E Bearing endures high-speed rotations and variable loads. Its brass cage reduces friction, enhancing longevity.

For aerospace ground equipment, 23192 CA/C08W33VE554E Bearing’s precision supports landing gear testing. The spherical rollers absorb shocks, ensuring accurate performance measurements.
