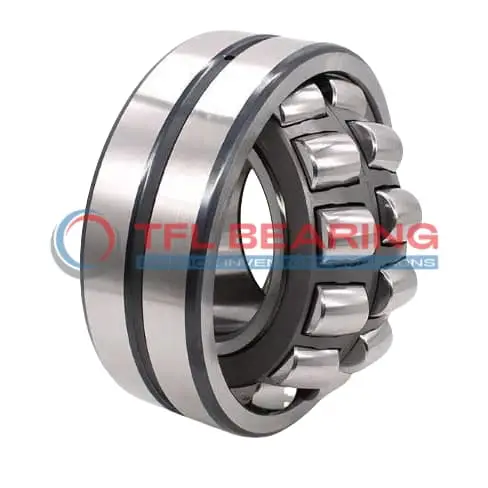

22236 CC/C3W502 Double Row Spherical Roller Bearing

22236 CC/C3W502 Double Row Spherical Roller Bearing

The 22236 CC/C3W502 is a double-row spherical roller bearing with a 180mm bore and 320mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 278089 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing performs well in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial and axial loads are present.

Weighing 29.5kg, it’s a robust option for demanding applications. Compliant with RoHS and REACH standards for safe and reliable operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22236 CC/C3W502
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 320 x 86 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 213 mm
  • Shoulder/Recess Dia Of Outer Ring 278 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 278089 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 29.5 kg
  • Price （US$） US$353.70

Features

How Does 22236 CC/C3W502 Bearing Handle Combined Loads?

22236 CC/C3W502 Bearing features a double row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures high strength and durability under heavy dynamic radial loads up to 278089 lbf.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 2600 rpm, it performs reliably in demanding industrial applications.

What Makes 22236 CC/C3W502 Bearing Suitable for High-Temperature Applications?

22236 CC/C3W502 Bearing operates efficiently in temperatures ranging from -30° to 200 °C.
Its chrome steel rollers and rings resist thermal deformation, ensuring consistent performance.
The open design allows for effective lubrication, crucial for high-temperature environments.
This bearing is built to maintain stability and reliability even under extreme conditions.

Engineered for Precision: 22236 CC/C3W502 Bearing

22236 CC/C3W502 Bearing is designed with precise radial run-out standards for smooth operation.
Its cylindrical bore and spherical rollers ensure accurate alignment and reduced vibration.
The lubrication groove and holes facilitate consistent oil flow, enhancing performance.
This bearing is a reliable choice for applications requiring high precision and stability.

Steel vs Ceramic Bearings: Strengths of 22236 CC/C3W502 Bearing

22236 CC/C3W502 Bearing uses chrome steel for both rollers and rings, offering excellent load capacity.
The steel construction provides superior durability compared to ceramic alternatives in heavy-duty scenarios.
Its C3 radial clearance allows for thermal expansion, ensuring reliable operation.
This bearing is a cost-effective solution for industrial applications requiring robust performance.

Application

Industrial Uses of 22236 CC/C3W502 Bearing
22236 CC/C3W502 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rugged conditions.

Where Is 22236 CC/C3W502 Bearing Used?
In mining equipment, 22236 CC/C3W502 Bearing supports large rotating components, thanks to its high dynamic radial load capacity. The chrome steel rollers and steel cage provide durability in dusty, high-vibration environments.

Built for Heavy-Duty Use: 22236 CC/C3W502 Bearing
This bearing excels in paper mill machinery, where its C3 radial clearance accommodates thermal expansion. The lubrication groove design ensures consistent performance even under continuous operation.

Automotive vs Aerospace: Applications of 22236 CC/C3W502 Bearing
While 22236 CC/C3W502 Bearing isn’t typical for aerospace, it’s ideal for commercial vehicle transmissions, balancing heavy loads and moderate speeds. Its metric sizing aligns with European truck manufacturing standards.

Essential Roles of 22236 CC/C3W502 Bearing
In wind turbine gearboxes, 22236 CC/C3W502 Bearing’s temperature range (-30° to 200°C) suits variable weather conditions. The open seal type simplifies relubrication during maintenance cycles.
