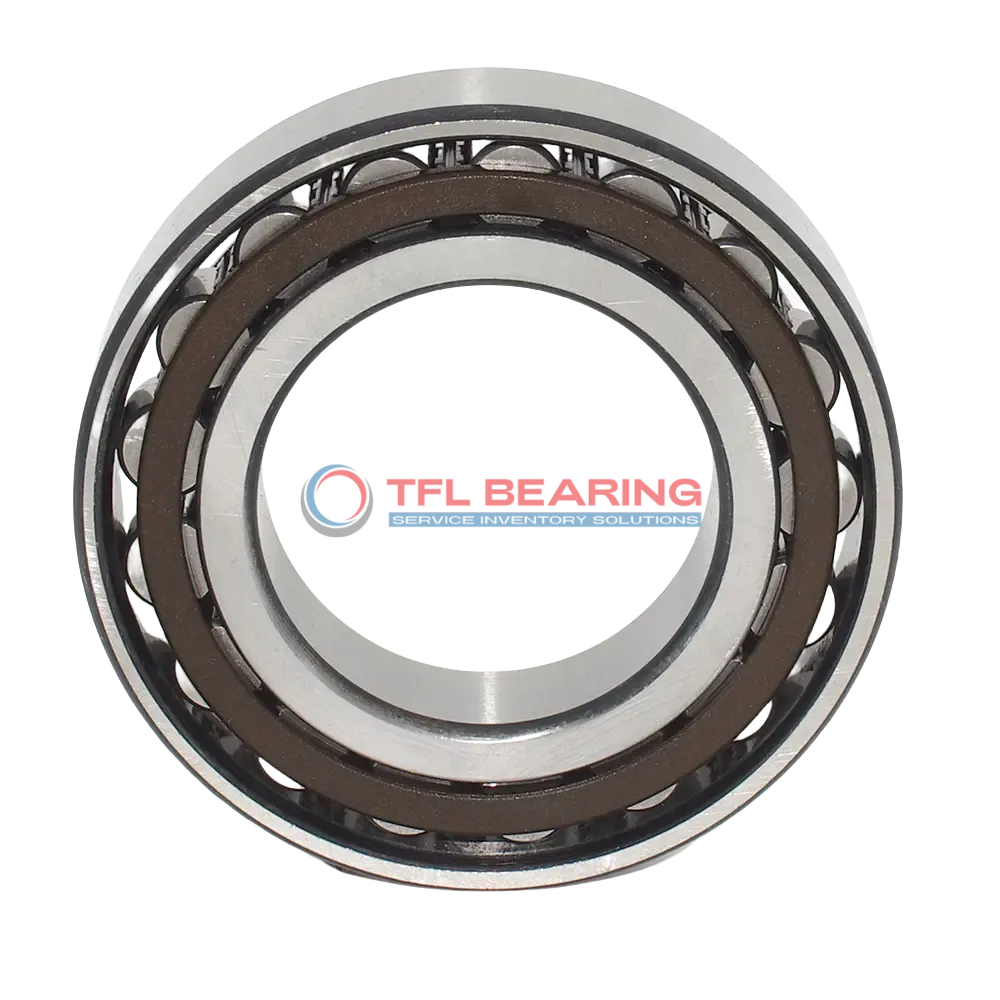

Single Row Cylindrical Roller Bearings With Inner Ring N 315 ECP

Single Row Cylindrical Roller Bearings With Inner Ring N 315 ECP

The N 315 ECP is a single-row cylindrical roller bearing with a 75mm bore and 160mm outer diameter, crafted from durable chrome steel. It handles combined loads with a dynamic radial capacity of 63000 lbf and spins smoothly at up to 5000 RPM.

Its open design and PA66 cage ensure easy lubrication with grease or oil, while the centred rollers provide stable performance. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where combined loads are common.

Weighing 3.29kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 315 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 104 mm
  • Raceway Diameter Of Outer Ring(E) 143 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Chamfer Dimension r3,4(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 1.8 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 63000 lbf
  • Static Radial Load 59625 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 3.29 kg
Single Row Cylindrical Roller Bearings With Inner Ring N 315 ECP dimension drawing
Download DWG Download PDF

Features

Why Choose N 315 ECP Bearing for Precision Tasks?

N 315 ECP Bearing features a chrome steel construction, ensuring durability and resistance to wear.
Its single-row cylindrical roller design handles combined loads efficiently, with a dynamic radial load capacity of 63,000 lbf.
The PA66 cage keeps rollers centred, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it is suitable for high-performance applications.

Application

Industrial Uses of N 315 ECP Bearing
N 315 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and electric motors, where its cylindrical roller design handles combined loads efficiently. The chrome steel construction ensures durability in demanding environments.

What Makes N 315 ECP Bearing a Preferred Choice?
In automotive applications, N 315 ECP Bearing fits well in transmission systems due to its high radial load capacity and precise tolerances. The PA66 cage also reduces friction, making it suitable for high-speed operations.

Built for Heavy-Duty Use: N 315 ECP Bearing
For automation equipment, N 315 ECP Bearing provides reliable performance in robotic arms and conveyor systems. Its open design allows for easy lubrication, extending service life in continuous-use scenarios.

Medical vs Industrial: Where N 315 ECP Bearing Excels
In medical devices like MRI machines, N 315 ECP Bearing offers smooth operation with minimal noise. However, its true strength lies in industrial settings, where it withstands heavy loads and high temperatures effortlessly.
