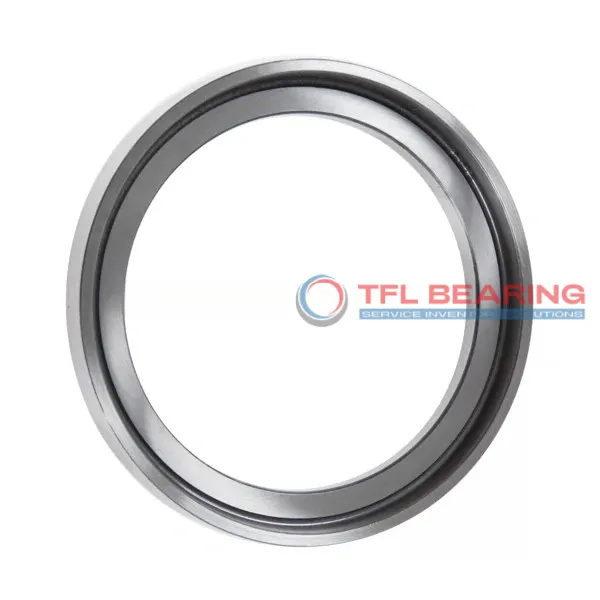

Angle Rings For Cylindrical Roller Bearings HJ 2226 EC

Angle Rings For Cylindrical Roller Bearings HJ 2226 EC

The HJ 2226 EC angle ring is designed for cylindrical roller bearings, with a 130mm bore and 164.1mm outer diameter. Made from chrome steel, it offers durability and resistance to wear.
Its 11mm width on the inner ring side ensures a secure fit, while the 21mm overall width provides stability. The ring operates well in temperatures ranging from -30°C to 110°C.
The chamfered edges (3mm) make installation easier, reducing the risk of damage during fitting. This model is interchangeable with SKF bearings, offering flexibility for replacements.
Weighing 0.83kg, it’s a robust component suitable for heavy-duty machinery. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2226 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 164.1 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width Contacting Inner Ring Side Face 11 mm
  • Width 21 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.83 kg
Angle Rings For Cylindrical Roller Bearings HJ 2226 EC dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 2226 EC Bearing
HJ 2226 EC Bearing is crafted from chrome steel, offering excellent durability and resistance to wear.
Its precise dimensions, with a bore diameter of 130 mm and outer diameter of 164.1 mm, ensure a perfect fit for cylindrical roller bearings.
The bearing operates efficiently within a temperature range of -30° to 110°C, making it suitable for various industrial conditions.
With a weight of 0.83 kg, it balances strength and ease of handling.
HJ 2226 EC Bearing’s chamfer length of 3 mm reduces stress concentrations, enhancing its longevity.
Its compliant status with RoHS and REACH standards ensures environmental and safety adherence.

Application

Key Fields for HJ 2226 EC Bearing
HJ 2226 EC Bearing is commonly used in industrial machinery, especially in heavy-duty applications like gearboxes and large conveyor systems. Its robust chrome steel construction ensures it can handle significant radial loads with ease.
In the automotive sector, HJ 2226 EC Bearing is ideal for supporting components in trucks and buses, where durability and precision are key. The metric dimensions make it a versatile choice for various vehicle designs.
For automation systems, HJ 2226 EC Bearing provides reliable performance in robotic arms and assembly lines. Its precise tolerances help maintain smooth operation in high-speed environments.
HJ 2226 EC Bearing also finds use in medical imaging devices, where its stability and low maintenance requirements are highly valued. The chrome steel material ensures long-term reliability in critical applications.
