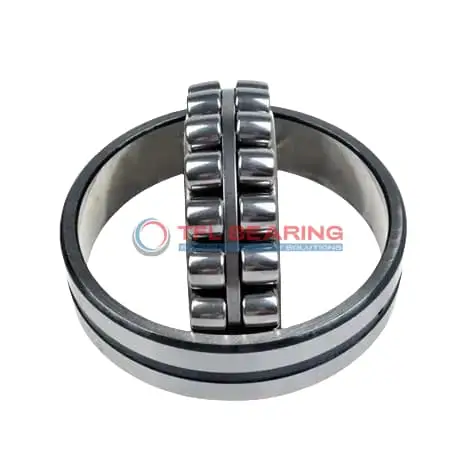

22220 CY C3 W33 Double Row Spherical Roller Bearing

22220 CY C3 W33 Double Row Spherical Roller Bearing

The 22220 CY C3 W33 is a double-row spherical roller bearing with a 100mm bore and 180mm outer diameter, built from tough chrome steel for durability. It handles combined loads up to 97342 lbf and runs smoothly at speeds up to 4500 RPM.

Its brass cage and spherical rollers ensure reliable performance, while the C3 radial clearance allows for thermal expansion. The open design with lubrication grooves makes maintenance straightforward.

This bearing suits high-load applications like industrial gearboxes or heavy machinery, operating in temperatures from -30°C to 200°C. It’s interchangeable with SKF models for easy replacement.

Weighing 4.95kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22220 CY C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 180 x 46 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 46 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 118 mm
  • Shoulder/Recess Dia Of Outer Ring 159 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 97342 lbf
  • Static Radial Load 110156 lbf
  • Max Speed 4500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 4.95 kg
  • Price （US$） 89.1

Features

Performance Features of 22220 CY C3 W33 Bearing

22220 CY C3 W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 97342 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 4500 rpm, it balances durability and efficiency in demanding conditions.

22220 CY C3 W33 Bearing operates effectively in temperatures ranging from -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, making it suitable for varying operational environments.

The lubrication groove and holes in 22220 CY C3 W33 Bearing ensure consistent grease distribution.
This design reduces wear and maintenance needs, enhancing long-term reliability.

22220 CY C3 W33 Bearing’s double-row spherical rollers accommodate misalignment and heavy loads.
Its robust construction makes it a dependable choice for industrial machinery and equipment.

Application

Industrial Uses of 22220 CY C3 W33 Bearing
22220 CY C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

What Makes 22220 CY C3 W33 Bearing a Preferred Choice?
In mining equipment, 22220 CY C3 W33 Bearing’s spherical rollers accommodate misalignment, reducing wear and extending service life. Its C3 radial clearance allows for thermal expansion in high-temperature environments.

Perfect Fit for Automation: 22220 CY C3 W33 Bearing
This bearing excels in robotic arms and conveyor systems, where its high dynamic load capacity supports continuous operation. The lubrication groove design simplifies maintenance, keeping downtime to a minimum.

Automotive vs Aerospace: Applications of 22220 CY C3 W33 Bearing
In automotive gearboxes, 22220 CY C3 W33 Bearing provides reliable performance under combined loads. For aerospace applications, its temperature range and precision make it suitable for auxiliary systems.

Essential Roles of 22220 CY C3 W33 Bearing
Wind turbines benefit from 22220 CY C3 W33 Bearing’s ability to handle variable loads and misalignment. The chrome steel construction ensures durability in harsh outdoor conditions.
