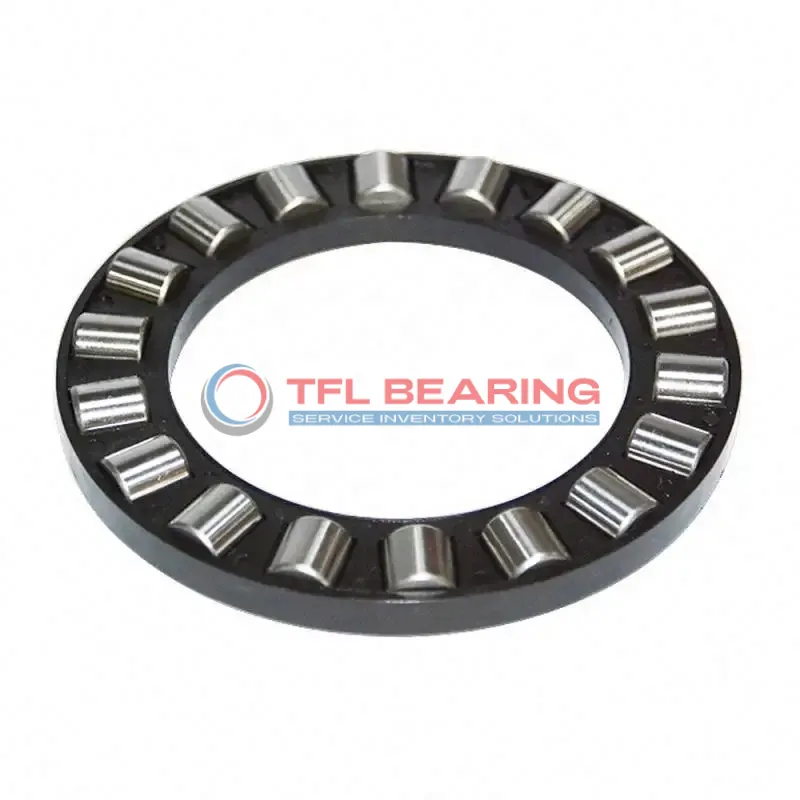

Single Row Cylindrical Roller Thrust Bearings assembly K 81108 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81108 TN

The K 81108 TN is a compact single-row cylindrical roller thrust bearing, measuring 40mm x 60mm x 6mm, with a chrome steel construction for durability. It handles thrust loads up to 9675 lbf and spins smoothly at speeds up to 5000 RPM.

Its glass fibre reinforced PA66 cage ensures quiet operation and reduces friction, while the precise tolerances provide reliable performance. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like gearboxes or industrial machinery where high thrust loads are present.

Weighing just 0.031kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81108 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 40 mm
  • Bore Dia Tolerance +0.05mm to +0.21mm
  • Outer Dia 60 mm
  • Outer Dia Tolerance -0.34mm to -0.80mm
  • Diameter Roller 6 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 42 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 58 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 9675 lbf
  • Static Radial Load 30825 lbf
  • Max Speed 5000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.031 kg
  • Shaft Washer WS 81108
  • Housing Washer GS 81108
  • Universal Washer LS 4060

Features

Why Choose K 81108 TN Bearing for Precision Tasks?

K 81108 TN Bearing features a single-row cylindrical roller design, optimised for handling thrust loads with precision.
Its chrome steel rollers and glass fibre reinforced PA66 cage ensure durability and smooth operation.

With a dynamic radial load capacity of 9675 lbf, K 81108 TN Bearing performs reliably under heavy loads.
The bearing operates efficiently at speeds up to 5000 rpm, maintaining stability in demanding conditions.

K 81108 TN Bearing’s compact size (40 mm x 60 mm x 6 mm) makes it suitable for space-constrained applications.
Its temperature range of -30° to 110 °C ensures consistent performance in varied environments.

Application

Industrial Uses of K 81108 TN Bearing
K 81108 TN Bearing is commonly used in machine tools, where its cylindrical roller design handles high thrust loads efficiently. The glass fibre reinforced PA66 cage ensures smooth operation even at speeds up to 5000 rpm.

In automotive applications, K 81108 TN Bearing fits well in gearboxes and clutch systems, thanks to its durable chrome steel rollers. Its metric dimensions make it a versatile choice for various vehicle models.

For automation equipment, K 81108 TN Bearing provides reliable performance in robotic arms and conveyor systems. The reinforced cage material adds to its longevity in continuous operation.

What Makes K 81108 TN Bearing a Preferred Choice?
K 81108 TN Bearing stands out in heavy-duty industrial settings due to its high static radial load capacity of 30825 lbf. Its compact size (40x60x6 mm) makes it ideal for space-constrained applications.

In medical devices, K 81108 TN Bearing’s precision and temperature stability (-30° to 110°C) ensure consistent performance. The chrome steel rollers offer low friction, crucial for sensitive equipment.

Built for Heavy-Duty Use: K 81108 TN Bearing
K 81108 TN Bearing excels in applications like hydraulic pumps and compressors, where thrust loads are significant. Its robust construction and high dynamic radial load rating (9675 lbf) ensure reliability.

For consumer electronics, K 81108 TN Bearing’s lightweight design (0.031 kg) and compact dimensions make it suitable for printers and small motors. The PA66 cage reduces noise, enhancing user experience.

Automotive vs Aerospace: Applications of K 81108 TN Bearing
In automotive systems, K 81108 TN Bearing handles thrust loads in transmissions and steering mechanisms. Its compatibility with SKF models simplifies maintenance and replacements.

For aerospace components, K 81108 TN Bearing’s temperature range and RoHS compliance meet strict industry standards. The precision rollers ensure smooth operation in critical flight systems.
