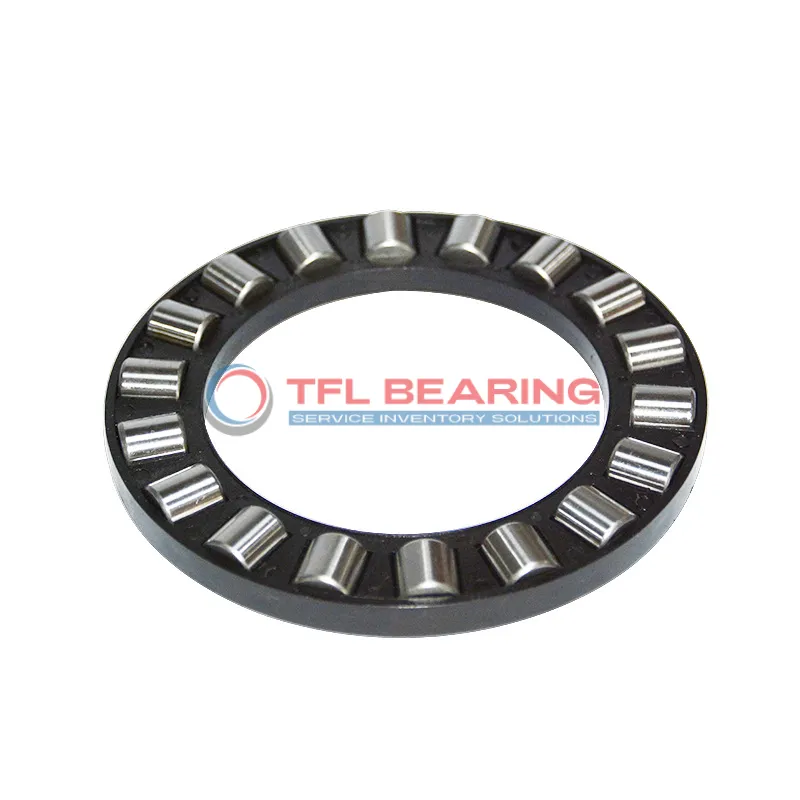

Single Row Cylindrical Roller Thrust Bearings assembly K 81207 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81207 TN

The K 81207 TN is a single-row cylindrical roller thrust bearing with a 35mm bore and 62mm outer diameter, designed for heavy thrust loads. It measures just 7.5mm in width, making it a compact yet robust solution.

With a dynamic radial load capacity of 13950 lbf, it handles demanding applications smoothly. Its glass fibre reinforced PA66 cage ensures durability, even at speeds up to 4000 RPM.

The chrome steel rollers provide reliable performance in temperatures from -30°C to 110°C. This model is interchangeable with SKF bearings, offering flexibility for replacements.

Ideal for industrial machinery or gear systems where space is limited but high thrust load capacity is needed. Compliant with RoHS and REACH standards, it’s both safe and efficient. Weighing only 0.043kg, it’s lightweight without compromising strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81207 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 35 mm
  • Bore Dia Tolerance +0.05mm to +0.21mm
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.34mm to -0.80mm
  • Diameter Roller 7.5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 39 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 58 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 13950 lbf
  • Static Radial Load 42750 lbf
  • Max Speed 4000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.043 kg
  • Shaft Washer WS 81207
  • Housing Washer GS 81207

Features

Why Choose K 81207 TN Bearing for Precision Tasks?

K 81207 TN Bearing features a single row cylindrical roller design, ideal for handling thrust loads with precision.
Its chrome steel rollers and glass fibre reinforced PA66 cage ensure durability and smooth operation.

With a dynamic radial load capacity of 13950 lbf, K 81207 TN Bearing performs reliably under heavy loads.
The bearing operates efficiently at speeds up to 4000 rpm, making it suitable for high-performance applications.

K 81207 TN Bearing works in temperatures ranging from -30° to 110°C, adapting to various environments.
Its compact size (35 mm x 62 mm x 7.5 mm) allows for easy integration into different machinery setups.

Application

Industrial Uses of K 81207 TN Bearing
K 81207 TN Bearing is commonly used in industrial machinery, especially in applications needing high thrust load capacity, like hydraulic pumps and gearboxes. Its cylindrical roller design ensures smooth operation even under heavy loads.

Where Is K 81207 TN Bearing Used?
In automotive systems, K 81207 TN Bearing fits well in clutch assemblies and transmissions, where its durability and precision are key. The metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: K 81207 TN Bearing
For automation equipment, K 81207 TN Bearing’s glass fibre reinforced cage offers excellent wear resistance in high-speed scenarios. Its chrome steel rollers provide reliable performance in robotic arms and conveyor systems.

Medical vs Industrial: Where K 81207 TN Bearing Excels
In medical devices, K 81207 TN Bearing’s compact design and high load capacity make it suitable for imaging equipment. Meanwhile, in industrial settings, it handles heavy machinery with ease due to its robust construction.

Practical Applications of K 81207 TN Bearing
K 81207 TN Bearing is a great fit for consumer electronics like printers, where its low friction and high-speed capability ensure quiet operation. The PA66 cage material also helps reduce maintenance needs.
