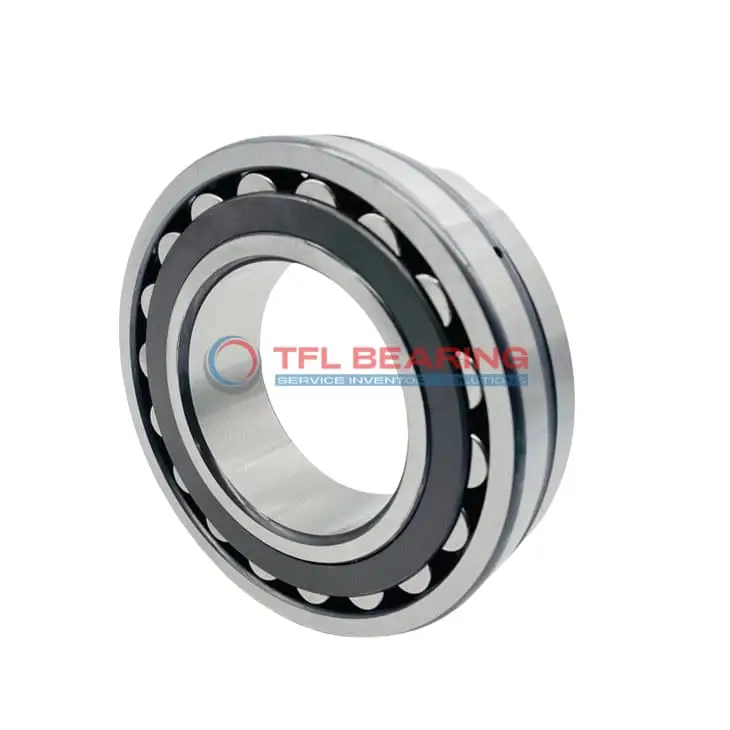

22217 CY C3 W33 Double Row Spherical Roller Bearing

22217 CY C3 W33 Double Row Spherical Roller Bearing

The 22217 CY C3 W33 is a double-row spherical roller bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 65419 lbf and runs smoothly at speeds up to 5600 RPM.

Its brass cage and open design ensure durability and easy lubrication, while the C3 radial clearance allows for thermal expansion. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

With a lubrication groove and hole, maintenance is straightforward, ideal for heavy-duty applications. This model is interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 2.7kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for demanding environments like mining or construction machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22217 CY C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 150 x 36 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 101 mm
  • Shoulder/Recess Dia Of Outer Ring 133 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 65419 lbf
  • Static Radial Load 73063 lbf
  • Max Speed 5600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.7 kg
  • Price （US$） 59.58

Features

Performance Features of 22217 CY C3 W33 Bearing

22217 CY C3 W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 65419 lbf, ensuring robust performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 5600 rpm, it delivers reliable operation under demanding conditions.

22217 CY C3 W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The C3 radial clearance allows for thermal expansion, ensuring consistent performance.

Its double-row spherical design accommodates misalignment, improving operational stability.
The lubrication groove and holes ensure proper oil distribution, extending service life.

Application

Industrial Uses of 22217 CY C3 W33 Bearing
22217 CY C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

Where Is 22217 CY C3 W33 Bearing Used?
You’ll often find 22217 CY C3 W33 Bearing in mining equipment, where its robust construction withstands harsh environments. Its C3 radial clearance allows for thermal expansion in high-temperature applications.

Built for Heavy-Duty Use: 22217 CY C3 W33 Bearing
22217 CY C3 W33 Bearing excels in paper mill machinery, thanks to its spherical roller design that compensates for misalignment. The lubrication groove ensures consistent performance over long periods.

Automotive vs Aerospace: Applications of 22217 CY C3 W33 Bearing
In automotive applications, 22217 CY C3 W33 Bearing supports heavy-duty transmissions, while in aerospace, it’s used in auxiliary systems. Its chrome steel rollers provide reliability in both sectors.

Key Fields for 22217 CY C3 W33 Bearing
22217 CY C3 W33 Bearing is ideal for wind turbines, where its high dynamic load capacity ensures longevity. The open design allows for easy relubrication, reducing maintenance downtime.
