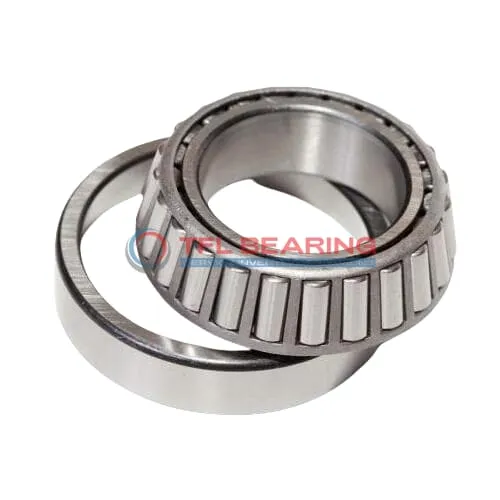

TS (Single Row Tapered Roller Bearings) (Imperial) 53150-53387X

TS (Single Row Tapered Roller Bearings) (Imperial) 53150-53387X

The 53150-53387X is a single-row tapered roller bearing with a 1.5″ bore and 3.875″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 26700 lbf radially and 8760 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53150-53387X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 3.875" x 1.2187"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1142"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2187"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.07"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.62"
  • Cup Backface Backing Diameter 3.23"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.19"
  • Effective Center Location -0.01"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 53150
  • Cup Part Number 53387X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 53000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26700 lbf
  • Static Radial Load 23400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8760 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.4 lb

Features

Performance Features of 53150-53387X Bearing

53150-53387X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 26,700 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 53150-53387X Bearing Engineered for Reliability?

53150-53387X Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 8,760 lbf at 90 million revolutions highlights long-term reliability.
This bearing is interchangeable with Timken models, offering flexibility in replacement options.

Designed for Durability: 53150-53387X Bearing

53150-53387X Bearing’s tapered roller design efficiently manages both radial and thrust loads.
The chrome steel components resist wear, maintaining performance under demanding conditions.
With an ABEC-1 rating, it balances precision and cost-effectiveness for industrial applications.
Its standard lubrication requirement ensures consistent performance over extended periods.

Steel vs Ceramic Bearings: Strengths of 53150-53387X Bearing

53150-53387X Bearing uses chrome steel for both rollers and rings, providing excellent strength and durability.
This material choice ensures reliable performance in high-load scenarios without the brittleness of ceramics.
The bearing’s 2.4 lb weight offers a robust yet manageable solution for industrial equipment.
Its compatibility with standard lubrication systems simplifies maintenance routines.

Application

Industrial Uses of 53150-53387X Bearing
53150-53387X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 53150-53387X Bearing Used?
You’ll often find 53150-53387X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a popular choice for American-made vehicles.

Built for Heavy-Duty Use: 53150-53387X Bearing
53150-53387X Bearing excels in industrial gearboxes, providing reliable performance under high radial and thrust loads. The steel cage adds extra strength for long-term use.

Automotive vs Aerospace: Applications of 53150-53387X Bearing
In automotive systems, 53150-53387X Bearing supports heavy loads in trucks and off-road vehicles. For aerospace, it’s used in auxiliary equipment where precision and reliability are key.

Key Fields for 53150-53387X Bearing
53150-53387X Bearing is ideal for agricultural machinery, such as tractors and harvesters, thanks to its robust design. The standard radial clearance allows for smooth operation in varying conditions.
