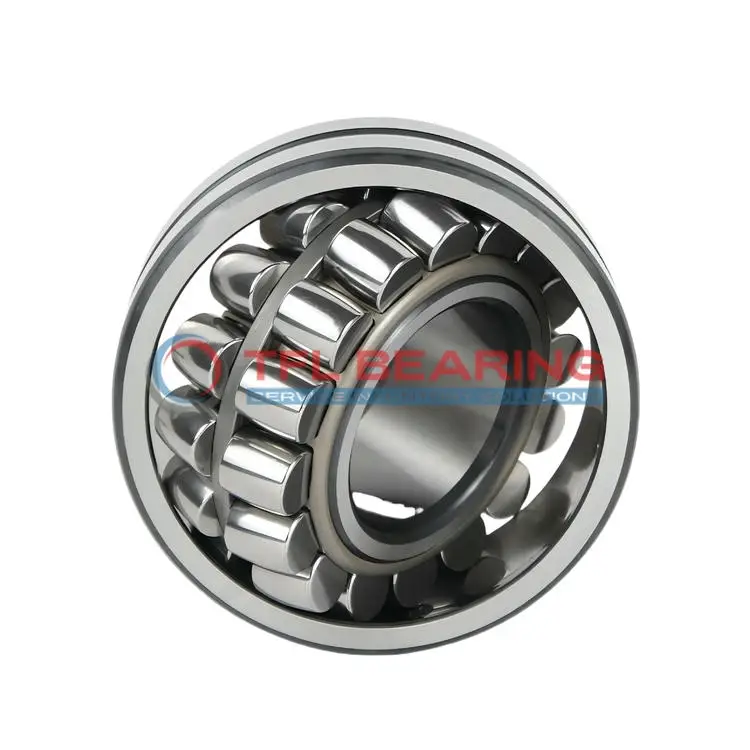

22205 E/W64F Double Row Spherical Roller Bearing

22205 E/W64F Double Row Spherical Roller Bearing

The 22205 E/W64F is a double-row spherical roller bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 11218 lbf and operates smoothly at speeds up to 17000 RPM.

Its open design requires lubrication, with grooves and holes for easy maintenance. The steel cage ensures durability, while the spherical rollers accommodate slight misalignments.

This bearing suits high-load applications like industrial gearboxes or heavy machinery, handling temperatures from -30°C to 200°C. It’s interchangeable with SKF models for convenient replacements.

Weighing 0.18kg, it’s compact yet robust, meeting RoHS and REACH standards for safe use. Ideal for environments demanding reliability and flexibility.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22205 E/W64F
  • Brand TFL
  • Interchangeable SKF
  • Size 25 x 52 x 18 mm
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 31.3 mm
  • Shoulder/Recess Dia Of Outer Ring 44.2 mm
  • Width Of Lubrication Groove 3.7 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11218 lbf
  • Static Radial Load 9892 lbf
  • Max Speed 17000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.18 kg
  • Price （US$） 32.69

Features

Performance Features of 22205 E/W64F Bearing

22205 E/W64F Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 11218 lbf, ensuring reliable performance in various applications.

The double-row spherical roller design allows for smooth operation even under misalignment conditions.
With a maximum speed of 17,000 rpm, it delivers both durability and high-speed efficiency.

22205 E/W64F Bearing operates effectively in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, reducing wear and extending service life.

The lubrication groove and hole design ensures proper lubrication for consistent performance.
This makes 22205 E/W64F Bearing suitable for demanding industrial environments.

Application

Industrial Uses of 22205 E/W64F Bearing
22205 E/W64F Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles both radial and axial loads efficiently.
The spherical roller construction allows for slight misalignment, making it suitable for rugged industrial environments.

Where Is 22205 E/W64F Bearing Used?
In automotive applications, 22205 E/W64F Bearing supports components like gearboxes and differentials, ensuring smooth operation under high loads.
Its chrome steel rollers and steel cage provide durability, even in demanding driving conditions.

Built for Heavy-Duty Use: 22205 E/W64F Bearing
This bearing excels in construction equipment, such as excavators and cranes, where its high dynamic radial load capacity is essential.
The lubrication groove and holes ensure consistent performance, even in dusty or high-temperature environments.

Automotive vs Aerospace: Applications of 22205 E/W64F Bearing
While 22205 E/W64F Bearing is popular in automotive transmissions, it also finds use in aerospace landing gear systems due to its reliability.
The wide temperature range and high-speed capability make it versatile across industries.

Perfect Fit for Automation: 22205 E/W64F Bearing
In robotic arms and automated production lines, 22205 E/W64F Bearing offers precise movement and long service life.
The open design allows for easy lubrication, reducing downtime in continuous operations.
