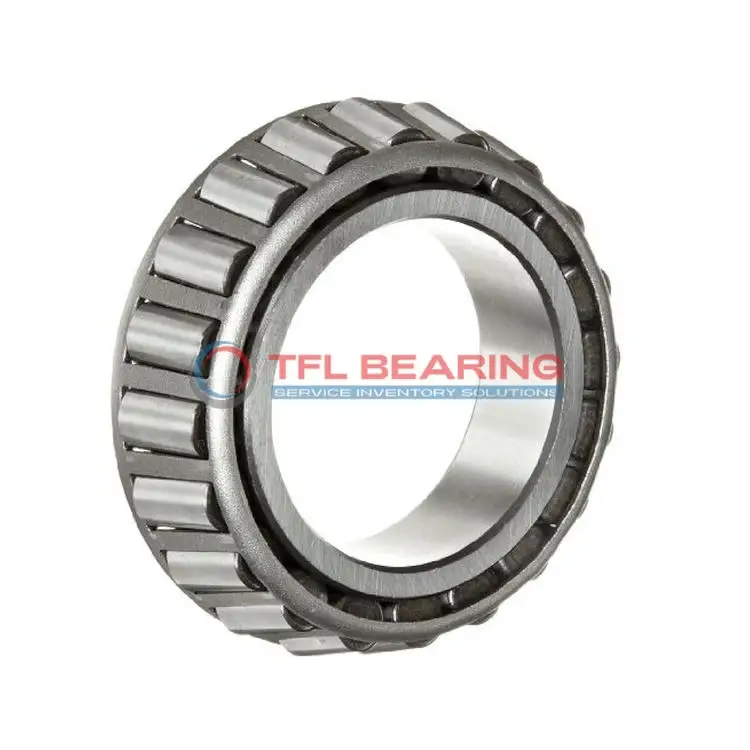

39580 Single Cones (Imperial)

39580 Single Cones (Imperial)

The 39580 is a single-row tapered roller bearing cone with a 2.25″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 37,500 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone width is 1.1875″, with precise tolerances for a secure fit.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial machinery where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 39580
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 39580-39520 , 39580-39520P , 39580-39520XX , 39580-39521 , 39580-39522 , 39580-39528
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 39500
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.1875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 2.68"
  • Cone Backface Backing Diameter 2.91"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.05"
  • Effective Center Location -0.26"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 37500 lbf
  • Static Radial Load 50300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9730 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 65300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5650 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 16900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 39580 Single Cones

39580 Single Cones are crafted from chrome steel, offering strong resistance to combined loads.
Their dynamic radial load capacity reaches 37,500 lbf, ensuring reliable performance in tough conditions.

The steel cage maintains roller alignment, reducing wear and extending service life.
With a temperature range of -30° to 110°C, they perform well in various environments.

The tapered roller design ensures smooth operation under both radial and thrust loads.
Standard radial clearance options provide flexibility for different applications.

Application

Key Fields for 39580 Single Cones
39580 Single Cones are widely used in heavy machinery, particularly in construction equipment where combined loads are common. Their tapered roller design ensures smooth operation even under demanding conditions.

In automotive applications, 39580 Single Cones are often found in wheel hubs and differential systems. The inch sizing makes them a preferred choice for American and British vehicle models.

For industrial gearboxes, 39580 Single Cones provide reliable performance due to their chrome steel construction. The open seal type allows for easy lubrication, extending their service life.

Where Is 39580 Single Cones Used?
You’ll often spot 39580 Single Cones in agricultural machinery, like tractors and harvesters. Their robust design handles the rough terrain and heavy loads typical in farming.

In mining equipment, 39580 Single Cones excel due to their high dynamic radial load capacity. They’re a dependable choice for conveyors and crushers.

Built for Heavy-Duty Use: 39580 Single Cones
39580 Single Cones are ideal for railway applications, particularly in axle boxes. Their tapered rollers manage both radial and thrust loads efficiently.

In marine environments, 39580 Single Cones withstand harsh conditions thanks to their steel cage and chrome steel rings. They’re commonly used in propeller shafts.

Automotive vs Aerospace: Applications of 39580 Single Cones
In automotive systems, 39580 Single Cones are trusted for their durability in drivetrain components. They’re a staple in trucks and off-road vehicles.

For aerospace ground equipment, 39580 Single Cones offer precision in landing gear systems. Their ABEC-1 rating ensures consistent performance.
