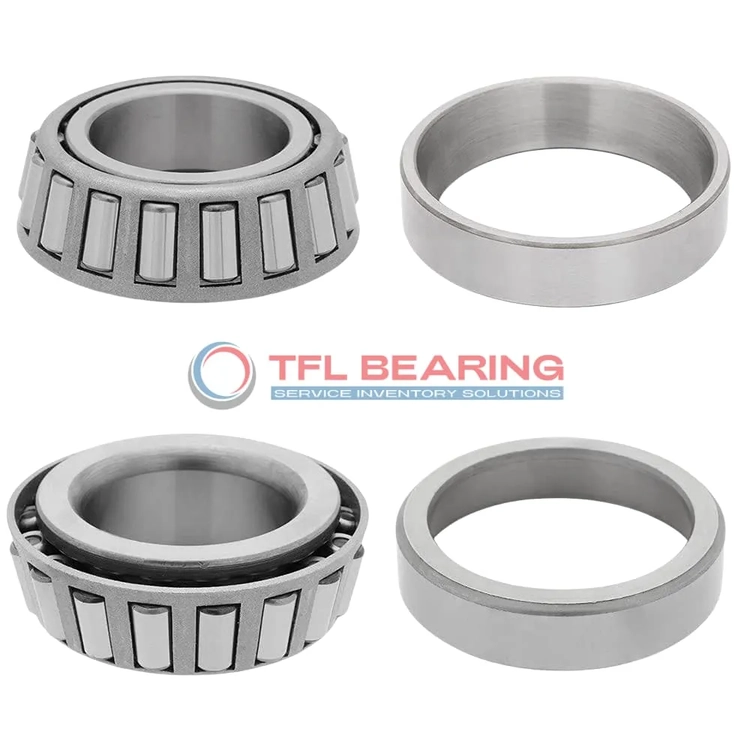

TS (Single Row Tapered Roller Bearings) (Imperial) 02474W-02420A

TS (Single Row Tapered Roller Bearings) (Imperial) 02474W-02420A

The 02474W-02420A is a single-row tapered roller bearing with a 1.125″ bore and 2.6875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 14300 lbf radially and 2650 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or wheel hubs where combined loads are common.

Weighing just 0.8 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 02474W-02420A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.125" x 2.6875" x 0.8269"
  • Bore Dia 1.125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6393"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8269"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.42"
  • Cone Backface Backing Diameter 1.44"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 02474W
  • Cup Part Number 02420A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 15800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3720 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2650 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 02474W-02420A Bearing

02474W-02420A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 14,300 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and wear.
With a standard radial clearance, it provides reliable performance in various operating conditions.

02474W-02420A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design handles both radial and thrust loads effectively.

The open seal type allows for easy lubrication, ensuring smooth operation.
Weighing just 0.8 lb, it balances durability with manageable size.

Application

Industrial Uses of 02474W-02420A Bearing
02474W-02420A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

What Makes 02474W-02420A Bearing a Preferred Choice?
In automotive applications, 02474W-02420A Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 02474W-02420A Bearing
02474W-02420A Bearing excels in conveyor systems and industrial fans, where its open design allows for easy lubrication and maintenance. The steel cage adds stability, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 02474W-02420A Bearing
While 02474W-02420A Bearing is popular in automotive drivetrains, it also finds use in aerospace landing gear components, thanks to its robust construction. The ABEC-1 rating ensures consistent performance in both fields.

Where Is 02474W-02420A Bearing Used?
02474W-02420A Bearing is ideal for mining equipment, where its tapered rollers manage heavy radial and axial loads. The standard radial clearance option offers flexibility for different operational needs.
