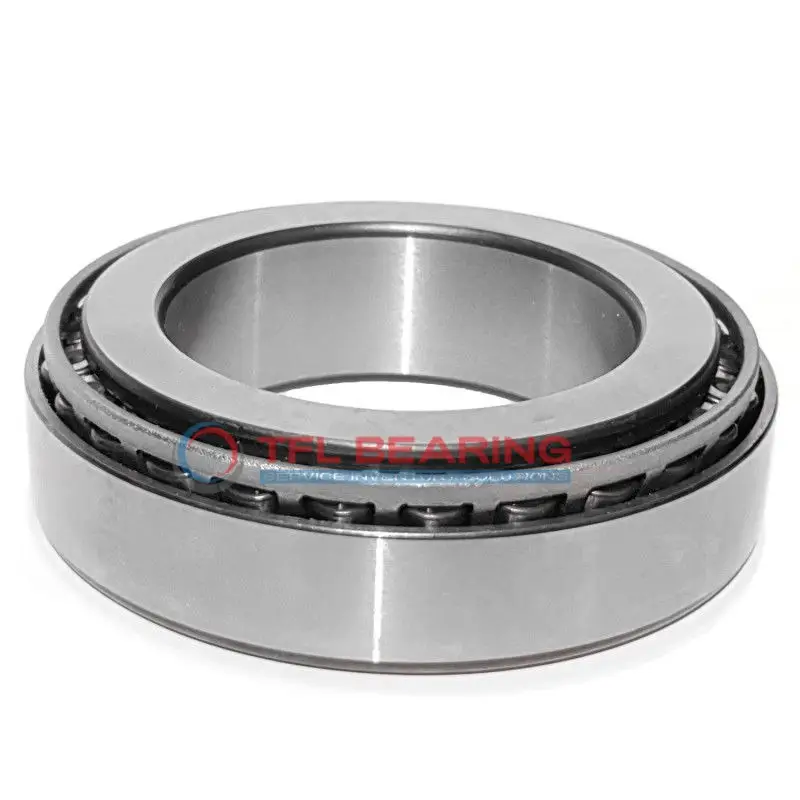

TS (Single Row Tapered Roller Bearings) (Metric) XAA32008X-Y32008X

TS (Single Row Tapered Roller Bearings) (Metric) XAA32008X-Y32008X

The 17118-17244-B is a single-row tapered roller bearing with a flange, measuring 1.18″ x 2.44″ x 0.65″. Made from durable chrome steel, it handles both radial and thrust loads, with a dynamic radial load capacity of 9720 lbf.
Its flanged cup design ensures secure mounting, while the open seal allows for easy lubrication. The bearing operates smoothly in temperatures from -30°C to 110°C.
Interchangeable with Timken models, it’s a practical choice for replacements. Ideal for applications like vehicle axles or industrial gearboxes where combined loads are common.
Weighing just 0.7lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number XAA32008X-Y32008X
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Metric
  • Type Bearing
  • Sizes 40 mm x 68 mm x 19 mm
  • Cone Part Number XAA32008X
  • Cup Part Number Y32008X
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.016mm to 0
  • Cone Width 19 mm
  • Cone Width Tolerance -0.1mm to 0
  • Cup Width 14.5 mm
  • Cup Width Tolerance -0.15mm to 0
  • Width 19 mm
  • Width Tolerance +0.2mm to 0
  • Cone Backface ToClear Radius 3.56 mm
  • Cup Backface ToClear Radius 1.02 mm
  • Cone Frontface Backing Diameter 45.5 mm
  • Cone Backface Backing Diameter 52.1 mm
  • Cup Frontface Backing Diameter 66.00 mm
  • Cup Backface Backing Diameter 60.96 mm
  • Cage Cone Frontface Clearance 2.3 mm
  • Cage Cone Backface Clearance 0.5 mm
  • Effective Center Location -3.8 mm
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 32008X
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14805 lbf
  • Static Radial Load 16110 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3847.5 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2497.5 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.66 lb

Features

How Is 17118-17244-B Bearing Engineered for Reliability?

17118-17244-B Bearing features a single-row tapered roller design, ideal for handling combined loads with precision.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The flanged cup design provides secure mounting, enhancing stability during operation.
With a dynamic radial load capacity of 9720 lbf, it delivers reliable performance under heavy loads.

17118-17244-B Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in various industrial settings.

Application

Common Applications of 17118-17244-B Bearing
17118-17244-B Bearing is widely used in industrial machinery, especially in conveyor systems and gearboxes where combined loads are common. Its tapered roller design ensures smooth operation even under heavy radial and thrust forces.

In automotive applications, 17118-17244-B Bearing fits well in wheel hubs and differential systems, thanks to its durable chrome steel construction. The flanged cup design adds stability, making it suitable for high-vibration environments.

For agricultural equipment, 17118-17244-B Bearing handles the tough conditions of tractors and harvesters with ease. The open seal type allows for easy lubrication, extending its lifespan in dusty or wet conditions.

In construction machinery, 17118-17244-B Bearing supports heavy loads in excavators and cranes. Its inch sizing makes it compatible with many North American equipment standards, simplifying replacements.

17118-17244-B Bearing also finds use in mining equipment, where its robust design withstands extreme loads and harsh environments. The steel cage ensures reliable performance even in high-stress scenarios.
