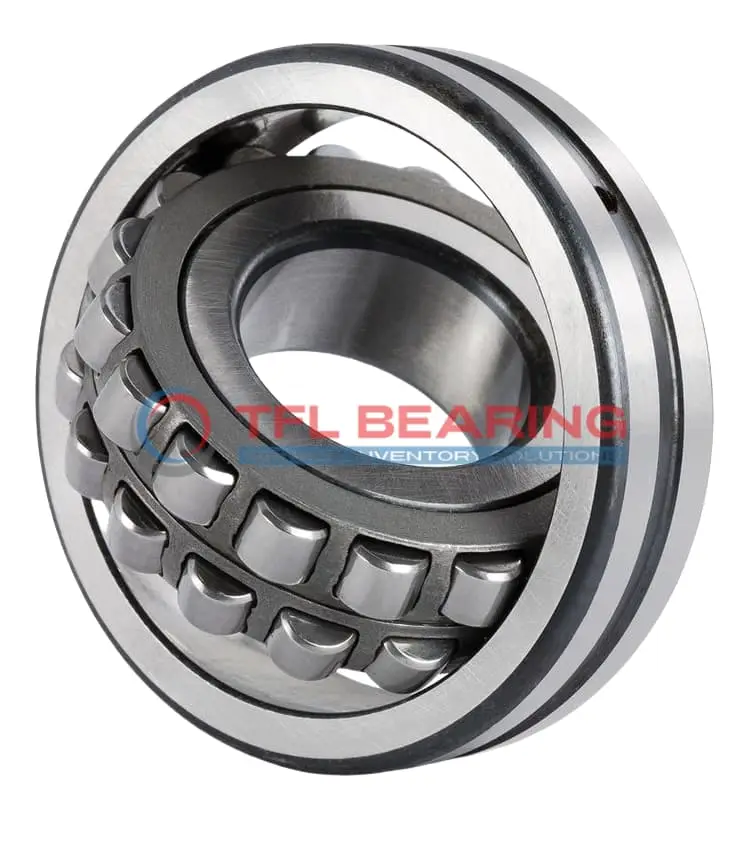

22317 CC W33 W64B Double Row Spherical Roller Bearing

22317 CC W33 W64B Double Row Spherical Roller Bearing

The 22317 CC W33 W64B is a double-row spherical roller bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 129715 lbf and operates smoothly at speeds up to 3800 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and lubrication groove make maintenance straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads are common. It works in temperatures from -30°C to 200°C.

Weighing 7.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22317 CC W33 W64B
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 180 x 60 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 60 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 108 mm
  • Shoulder/Recess Dia Of Outer Ring 154 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 129715 lbf
  • Static Radial Load 139382 lbf
  • Max Speed 3800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.3 kg
  • Price （US$） 143.1

Features

Performance Features of 22317 CC W33 W64B Bearing

22317 CC W33 W64B Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 129715 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

With a maximum speed of 3800 rpm, 22317 CC W33 W64B Bearing balances performance and efficiency.
The lubrication groove and hole design ensure smooth operation, reducing maintenance needs.

22317 CC W33 W64B Bearing operates in temperatures from -30° to 200 °C, suitable for various environments.
Its robust construction and high load capacity make it a dependable choice for industrial applications.

Application

Industrial Uses of 22317 CC W33 W64B Bearing
The 22317 CC W33 W64B Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads effortlessly. Its chrome steel construction ensures durability even in harsh industrial environments.

What Makes 22317 CC W33 W64B Bearing a Preferred Choice?
In mining equipment, 22317 CC W33 W64B Bearing stands out for its ability to withstand high loads and misalignment. The lubrication groove and holes make maintenance straightforward, reducing downtime in critical operations.

Built for Heavy-Duty Use: 22317 CC W33 W64B Bearing
This bearing excels in paper mill machinery, where its spherical roller design compensates for shaft deflections. The wide temperature range (-30° to 200°C) ensures reliable performance in varying conditions.

Automotive vs Aerospace: Applications of 22317 CC W33 W64B Bearing
In automotive applications, 22317 CC W33 W64B Bearing supports heavy axles and transmissions, while in aerospace, its precision aids in auxiliary systems. The steel cage provides stability across both sectors.

Perfect Fit for Automation: 22317 CC W33 W64B Bearing
For robotic arms in automated production lines, 22317 CC W33 W64B Bearing offers smooth rotation under combined loads. Its metric sizing ensures compatibility with European and Asian machinery standards.
