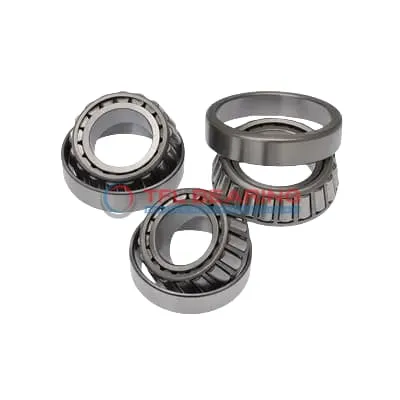

TS (Single Row Tapered Roller Bearings) (Imperial) M249734H-M249710X

TS (Single Row Tapered Roller Bearings) (Imperial) M249734H-M249710X

The M249734H-M249710X is a single-row tapered roller bearing with a 9.125″ bore and 14.125″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 258,000 lbf radially and 38,100 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or large equipment where robust performance is needed.

Weighing 58.2 lb, it’s designed for stability and long service life. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M249734H-M249710X
  • Brand TFL
  • Interchangeable Timken
  • Size 9.125" x 14.125" x 2.8125"
  • Bore Dia 9.125"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 14.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.8125"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 11.22"
  • Cone Backface Backing Diameter 10.43"
  • Cup Frontface Backing Diameter 13.52"
  • Cup Backface Backing Diameter 13.19"
  • Cage Cone Frontface Clearance 0.17"
  • Cage Cone Backface Clearance 0.28"
  • Effective Center Location -0.27"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M249734H
  • Cup Part Number M249710X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M249700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 258000 lbf
  • Static Radial Load 416000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 66900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 38100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 58.2 lb

Features

How Is M249734H-M249710X Bearing Engineered for Reliability?

M249734H-M249710X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 258,000 lbf, ensuring dependable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes M249734H-M249710X Bearing Suitable for High-Temperature Applications?

M249734H-M249710X Bearing can operate in temperatures up to 110°C without losing performance.
The chrome steel construction ensures durability and resistance to thermal expansion.
Its open design allows for easy lubrication, maintaining smooth operation under heat.
This makes it ideal for industrial applications where high temperatures are common.

Built for Durability: M249734H-M249710X Bearing

M249734H-M249710X Bearing features a single-row tapered roller design for enhanced load handling.
The chrome steel components provide excellent wear resistance, extending the bearing’s service life.
With a static radial load capacity of 416,000 lbf, it excels in demanding environments.
Its standard radial clearance ensures reliable performance across various applications.

Application

Industrial Uses of M249734H-M249710X Bearing
M249734H-M249710X Bearing is commonly used in heavy machinery like construction equipment and mining vehicles, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is M249734H-M249710X Bearing Used?
You’ll often find M249734H-M249710X Bearing in industrial gearboxes and large conveyor systems, thanks to its high dynamic radial load capacity. Its inch sizing makes it a good fit for machinery following imperial standards.

Built for Heavy-Duty Use: M249734H-M249710X Bearing
M249734H-M249710X Bearing excels in applications like agricultural machinery, where its robust design withstands uneven loads and harsh conditions. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of M249734H-M249710X Bearing
In automotive settings, M249734H-M249710X Bearing supports large axles and differentials, while in aerospace, it’s used in ground support equipment. Its ABEC-1 rating ensures reliable performance without over-engineering.

Perfect Fit for Automation: M249734H-M249710X Bearing
M249734H-M249710X Bearing works well in automated production lines, particularly for heavy-load handling robots. The steel cage provides stability, making it suitable for repetitive, high-stress operations.
