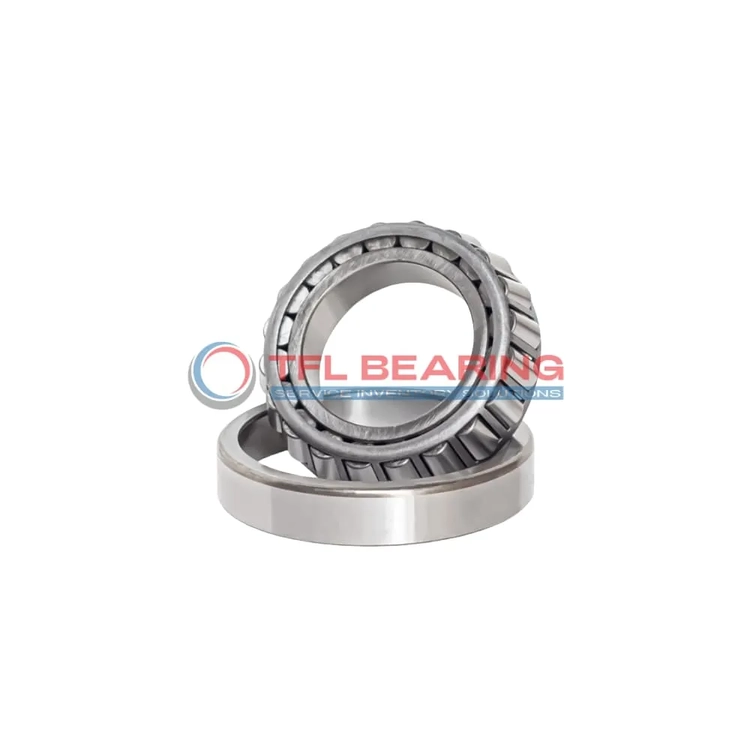

TS (Single Row Tapered Roller Bearings) (Imperial) 467-452A

TS (Single Row Tapered Roller Bearings) (Imperial) 467-452A

The 467-452A is a single-row tapered roller bearing with a 1.875″ bore and 4.25″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 36100 lbf radially and 5380 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 3.1 lb, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 467-452A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 4.25" x 1.2819"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2819"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 467
  • Cup Part Number 452A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.1 lb

Features

Why Choose 467-452A Bearing for Precision Tasks?

467-452A Bearing is crafted with chrome steel rings and rollers, ensuring strength and durability for combined load applications.
Its dynamic radial load capacity reaches 36,100 lbf, making it suitable for demanding industrial uses.
The steel cage maintains roller alignment, enhancing performance and reducing wear over time.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

How Is 467-452A Bearing Engineered for Reliability?

467-452A Bearing features a tapered roller design, optimised for handling both radial and thrust loads efficiently.
The chrome steel construction provides excellent resistance to wear, extending the bearing’s service life.
Precision tolerances ensure smooth operation, even under heavy loads or high-speed conditions.
Its standard radial clearance offers flexibility for different application requirements.

Built for Durability: 467-452A Bearing

467-452A Bearing’s single-row construction simplifies installation while maintaining high load capacity.
The open design allows for easy lubrication, ensuring consistent performance over time.
With an ABEC-1 rating, it balances precision and cost-effectiveness for various industrial uses.
Its interchangeable design with Timken bearings provides convenience and compatibility.

Application

Industrial Uses of 467-452A Bearing
The 467-452A Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 467-452A Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 467-452A Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds stability, making it suitable for high-load scenarios.

What Makes 467-452A Bearing a Preferred Choice?
467-452A Bearing stands out in agricultural machinery due to its ability to handle both radial and thrust loads. The standard radial clearance offers flexibility for different operational needs.

In mining equipment, 467-452A Bearing’s robust design ensures consistent performance under extreme conditions. Its compatibility with Timken models simplifies replacement and maintenance.

Built for Heavy-Duty Use: 467-452A Bearing
467-452A Bearing is ideal for gearboxes in industrial settings, where its tapered rollers distribute loads evenly. The ABEC-1 rating ensures sufficient precision for most applications.

In forestry machinery, 467-452A Bearing’s temperature range (-30° to 110°C) makes it reliable in varying climates. The steel cage and chrome steel rollers enhance its wear resistance.

Automotive vs Aerospace: Applications of 467-452A Bearing
In automotive systems, 467-452A Bearing is often found in truck axles, offering durability under heavy loads. Its imperial measurements align with standard US manufacturing specs.

For aerospace ground support equipment, 467-452A Bearing provides reliable performance without the need for high-precision alternatives. Its weight (3.1 lb) balances strength and practicality.
